Using kubectl

Using kubectl requires the installation of kubectl on your system as well as downloading of kubeconfig on the cluster UI page. See the Official kubectl Install Instructions for a tutorial on how to install kubectl on your system. Once you have installed it, download the kubeconfig. The below steps will guide you on how to download a kubeconfig.

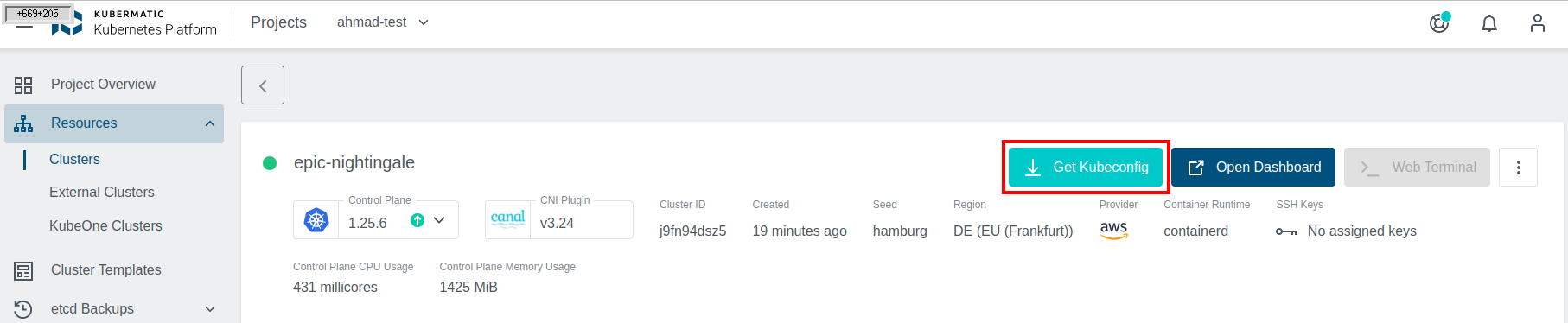

To download the kubeconfig, navigate to Clusters and select the correct cluster. On the top right you can find a download button circled with red box:

Download config button in the top right corner

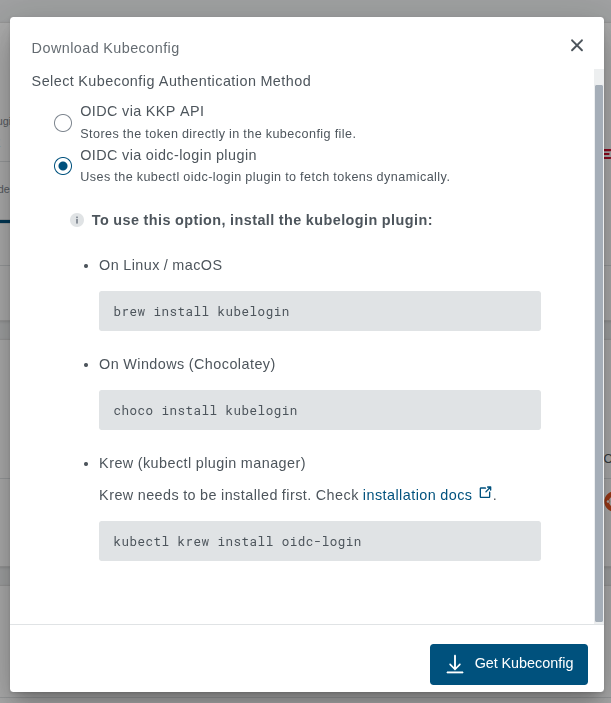

After clicking on the button, a download kubeconfig dialog will be opened. You can choose the Kubeconfig authentication method — either KKP API or OIDC-kubelogin.

Download kubeconfig

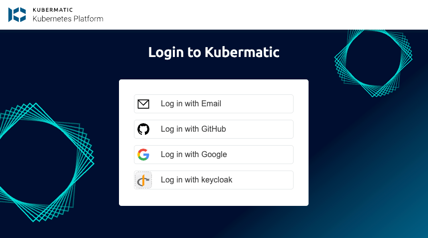

The OIDC-kubelogin plugin starts a local server on port 8000 or 18000 by default. To use the OIDC-kubelogin option, you need to register the following redirect URIs with your OIDC provider:

http://localhost:8000
http://localhost:18000 (used if port 8000 is already in use)

To achieve this, add the following lines to your issuer configuration (most likely kubermaticIssuer):

## kubermatic values.yaml
      - id: kubermaticIssuer
        name: KubermaticIssuer
        secret: xxx
        RedirectURIs:
          - https://kkp.example.com/api/v1/kubeconfig
          - https://kkp.example.com/api/v2/dashboard/login
          - https://kkp.example.com/api/v2/kubeconfig/secret
          - http://localhost:8000   # -> add this line
          - http://localhost:18000  # -> add this line

Make sure to include the last two lines to enable local authentication via the OIDC-kubelogin plugin.

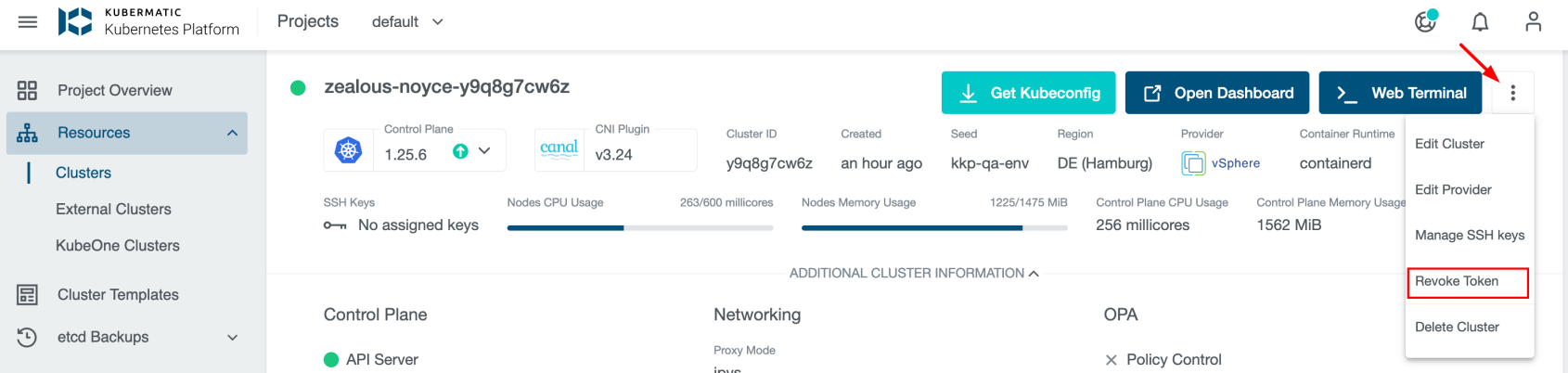

You can revoke access for already downloaded kubeconfigs by revoking the token on the cluster detail page. To do so, click on the three-dot settings icon on the right to see the option Revoke Token:

Select Revoke Token

Users in the groups Owner and Editor have an admin token in their kubeconfig. Users in the group Viewer have a viewer token. Revoking the token for a user group means the kubeconfig becomes unusable for users in this group and they need to download it again. Using kubectl with an invalid kubeconfig will result in an error message. You can see which group every project member belongs to on the Members page.

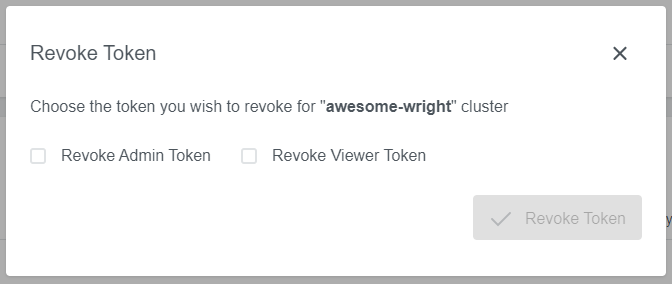

Revoke the token

Once you have installed the kubectl and downloaded the kubeconfig, change into the download directory and export it to your environment:

$ export KUBECONFIG=$PWD/kubeconfig-admin-czmg7r2sxm
$ kubectl version
Client Version: version.Info{Major:"1", Minor:"13", GitVersion:"v1.13.0", GitCommit:"...", GitTreeState:"clean", BuildDate:"...", GoVersion:"go1.11.2", Compiler:"gc", Platform:"darwin/amd64"}
Server Version: version.Info{Major:"1", Minor:"14", GitVersion:"v1.14.8", GitCommit:"...", GitTreeState:"clean", BuildDate:"...", GoVersion:"go1.12.10", Compiler:"gc", Platform:"linux/amd64"}
