Google Kubernetes Engine

Add GKE Cluster

You can add an existing Kubernetes cluster and then manage it using KKP.

  • Navigate to External Clusters page.

Add External Cluster

  • Click the Import External Cluster button and Pick Google Kubernetes Engine provider.

Add External Cluster

  • Select preset with valid credentials or enter GKE Service Account to connect to the provider.

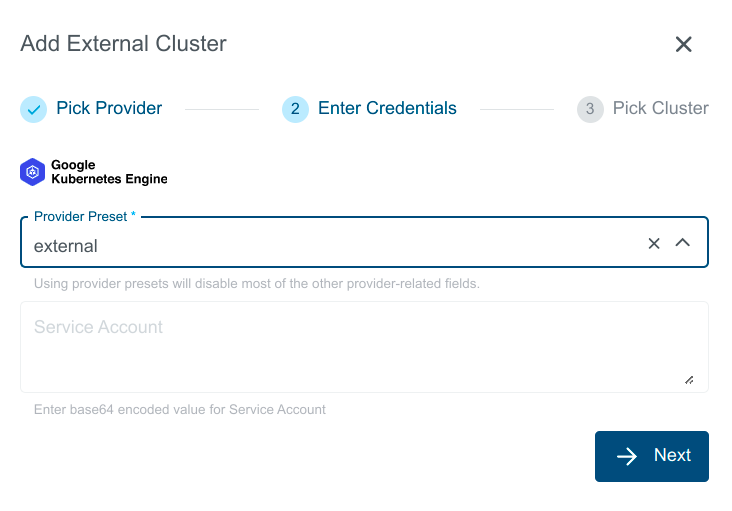

GKE credentials

You should see the list of all available clusters. Select the one and click the Import Cluster button. Clusters can be imported only once in a single project. The same cluster can be imported in multiple projects.

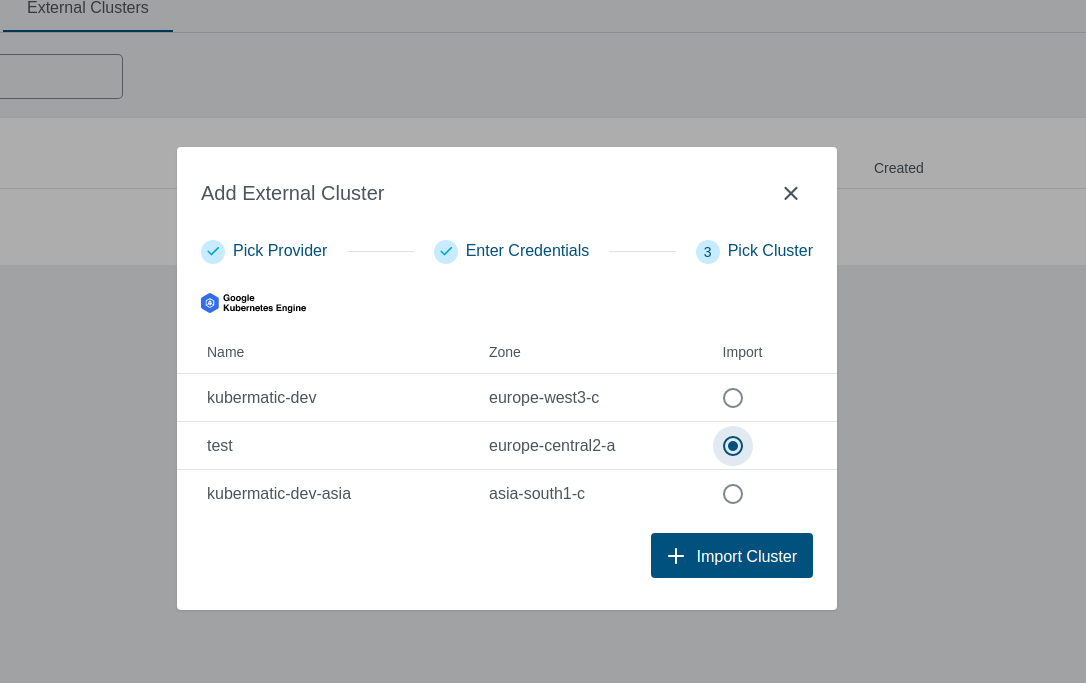

Select GKE cluster

  • Provide Credentials in either of the below mentioned ways:

    • Select a pre-created preset which stores the provider specific credentials.

      Create a preset on your KKP cluster with spec.gke.serviceAccount containing the base64 encoded service account.

    • Manually enter the credentials ServiceAccount

  • After user provides all required credentials, credentials will be validated.

Validation performed will only check if the credentials have Read access.

Create GKE Preset

Admin can create a preset on a KKP cluster using KKP Admin Panel. This Preset can then be used to Create/Import an GKE cluster.

  • Click on Admin Panel from the menu.

Select Admin Panel

  • Navigate to Provider Presets Page and Click on + Create Preset button.

Provider Preset Page

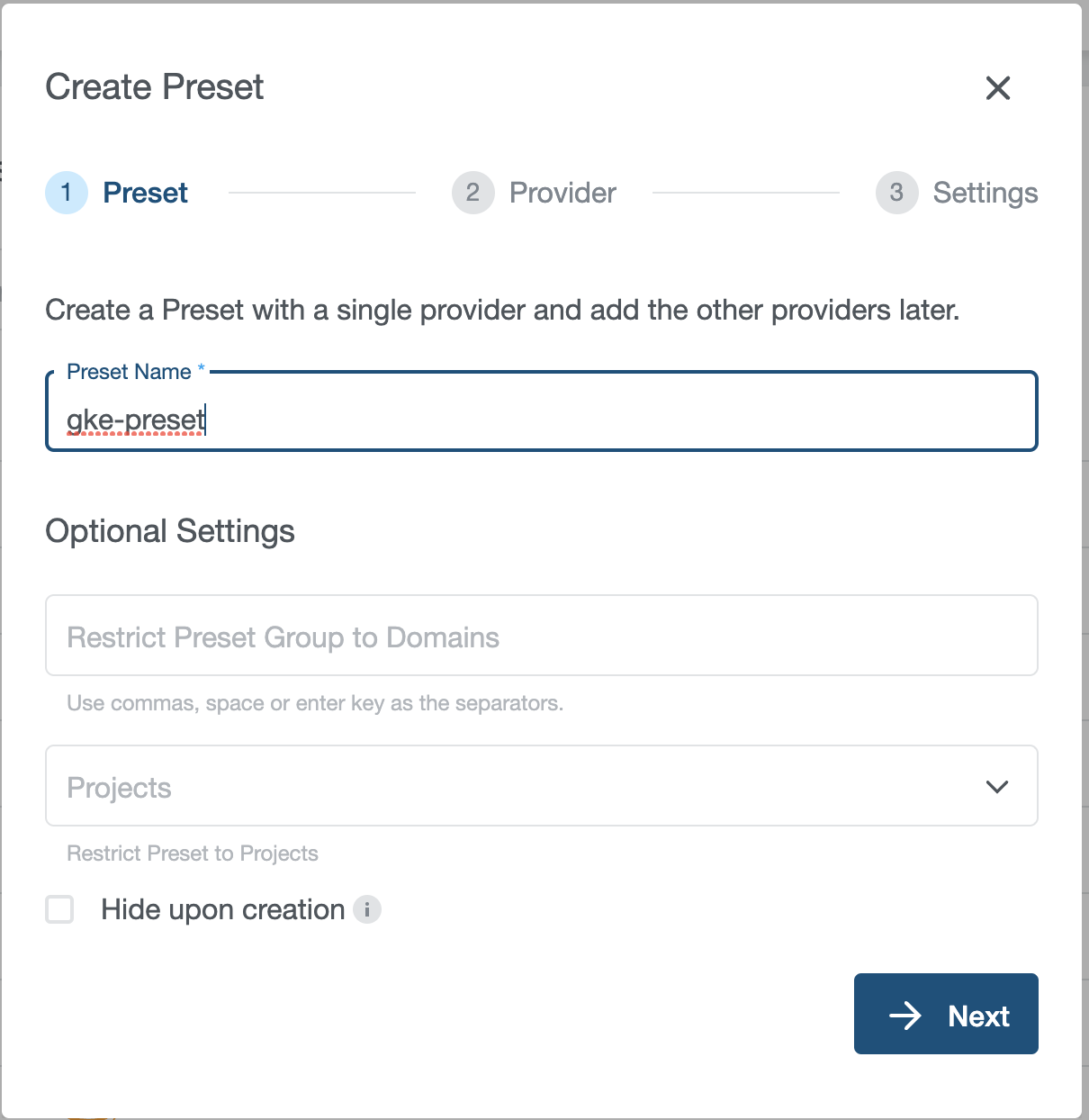

  • Enter Preset Name.

Provide Preset Name

  • Choose Google Kubernetes Engine from the list of providers.

Choose EKS Preset

  • Enter GKE credentials and Click on Create button.

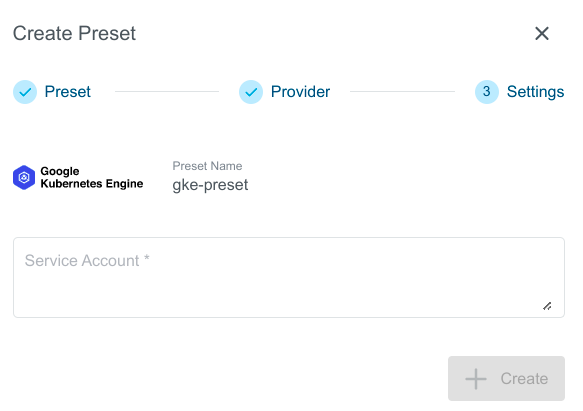

Enter Credentials

  • You can now use created GKE Preset to Create or Import GKE Cluster.

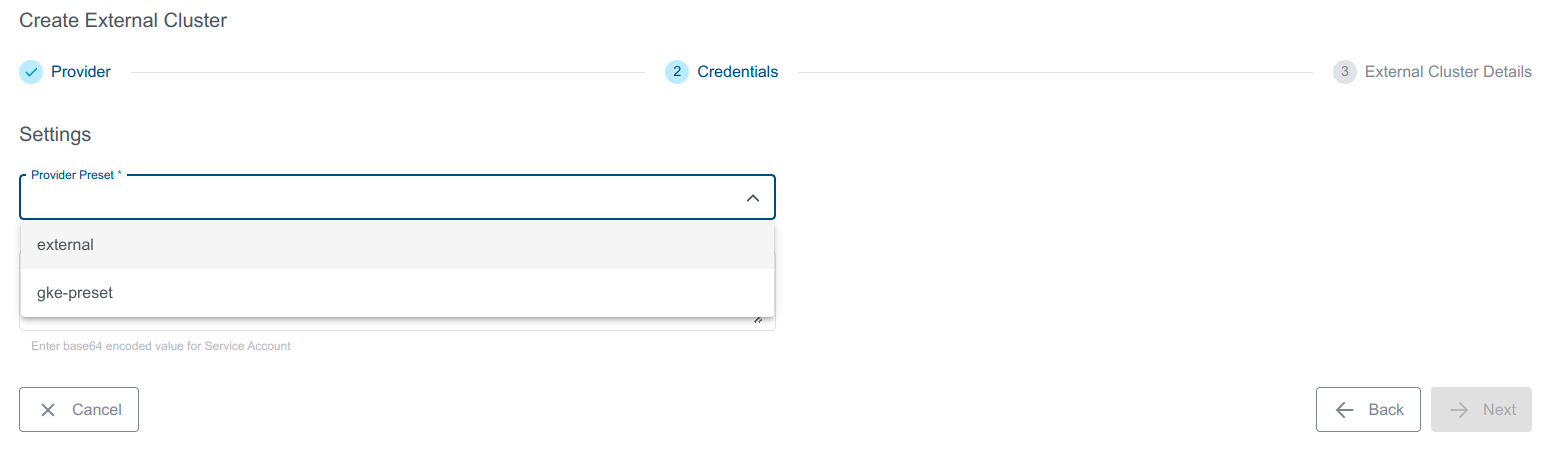

Select GKE Preset

Cluster Details Page

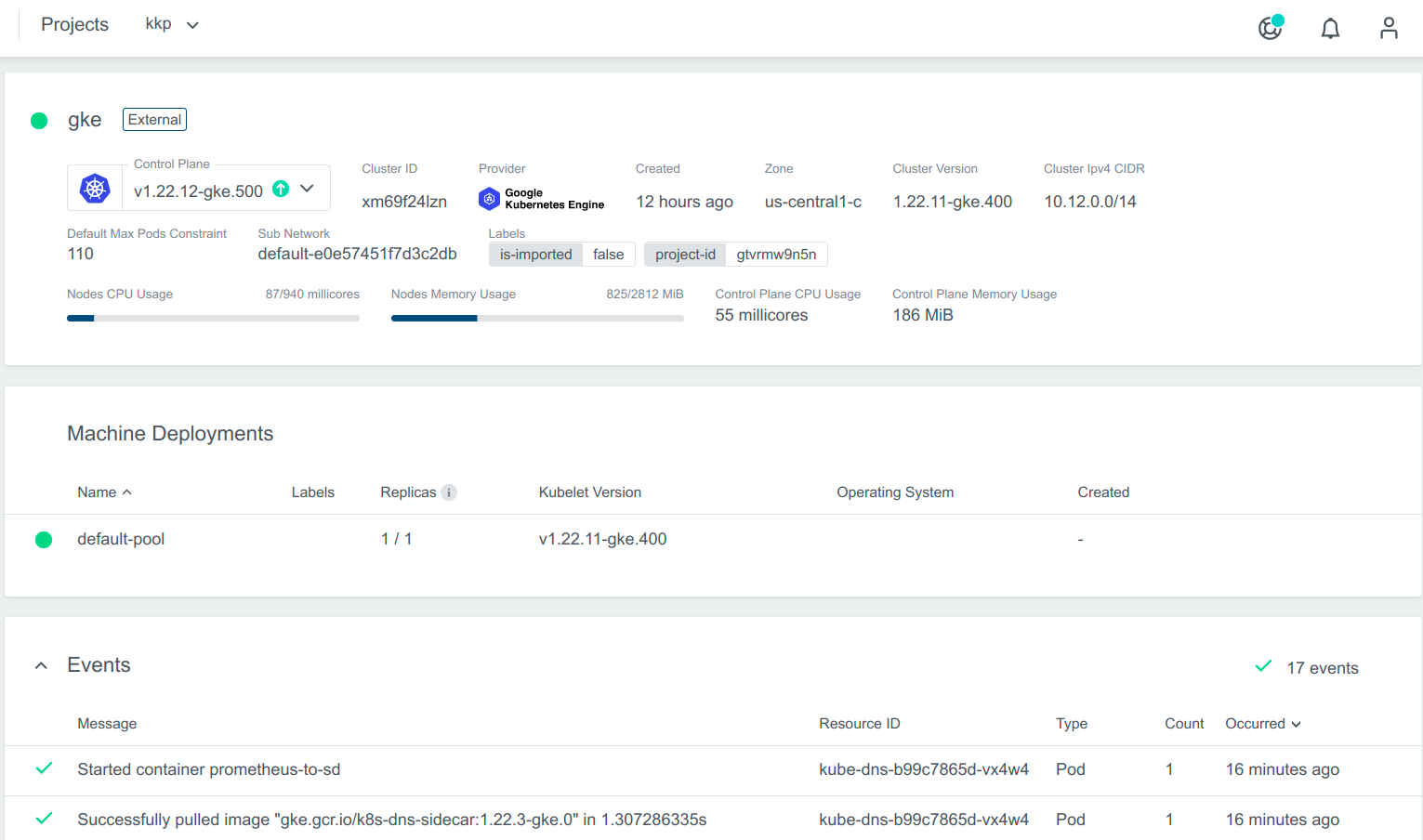

After the cluster is added, the KKP controller retrieves the cluster kubeconfig to display all necessary information. A healthy cluster has Running state. Otherwise, the cluster can be in the Error state. Move the mouse cursor over the state indicator to get more details. You can also expand Events to get information from the controller.

GKE cluster

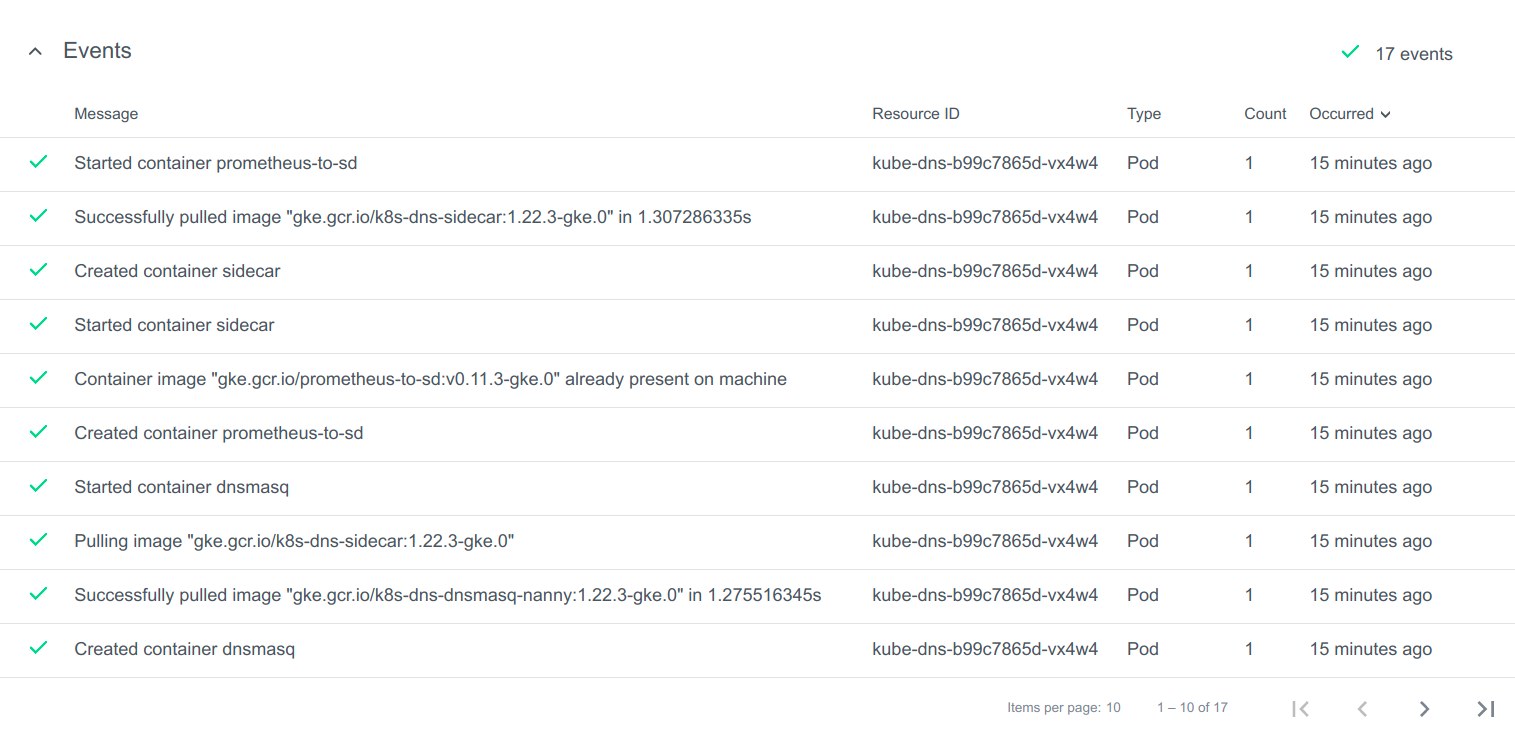

You can also expand Events to get information from the controller.

GKE Events

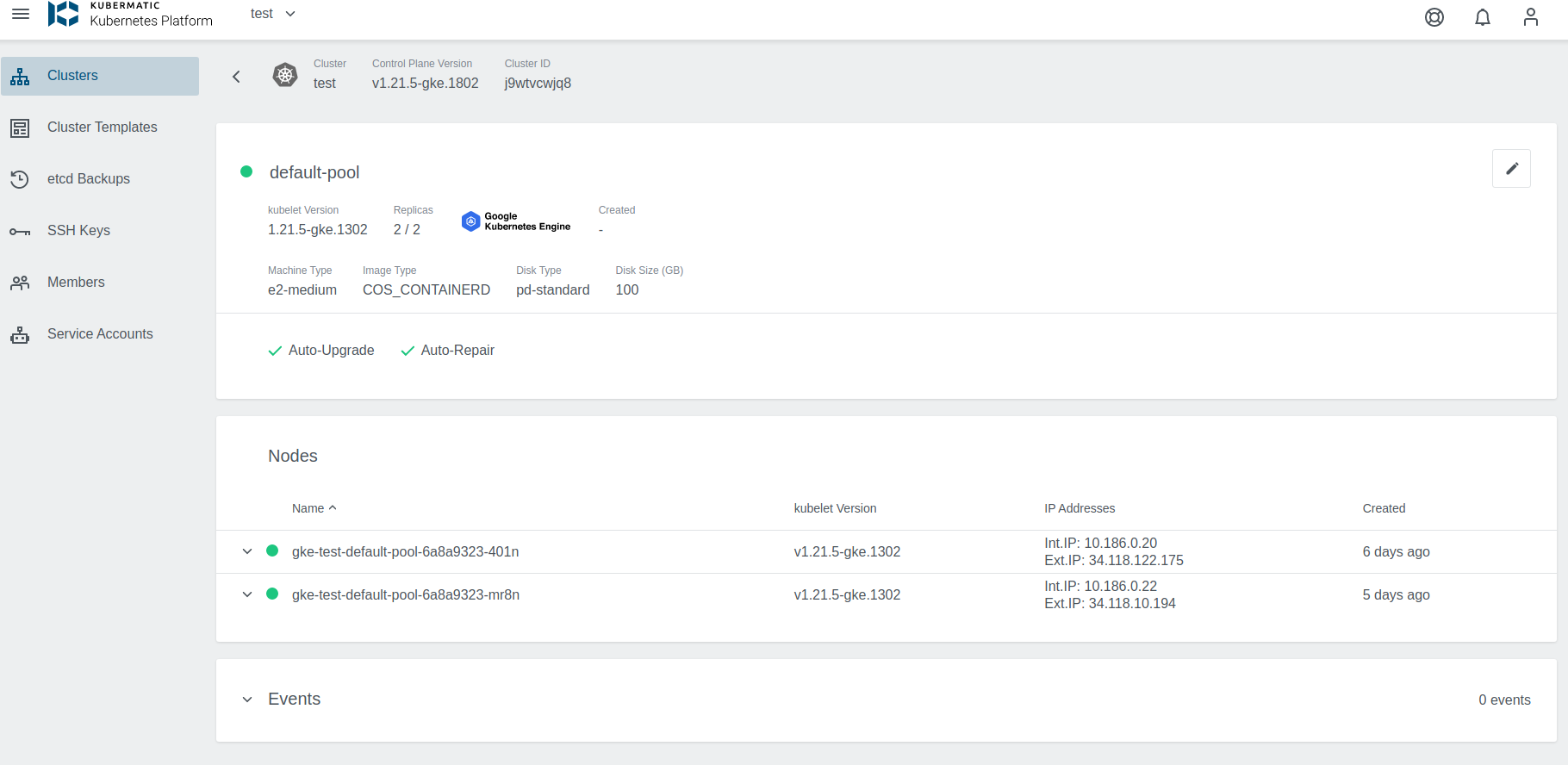

You can also click on Machine Deployments to get the details:

GKE Machine Deployment

Update Cluster

Upgrade Version

When an upgrade for the cluster is available, a little dropdown arrow will be shown beside the Master Version on the cluster’s page. To start the upgrade, just click on the link and choose the desired version:

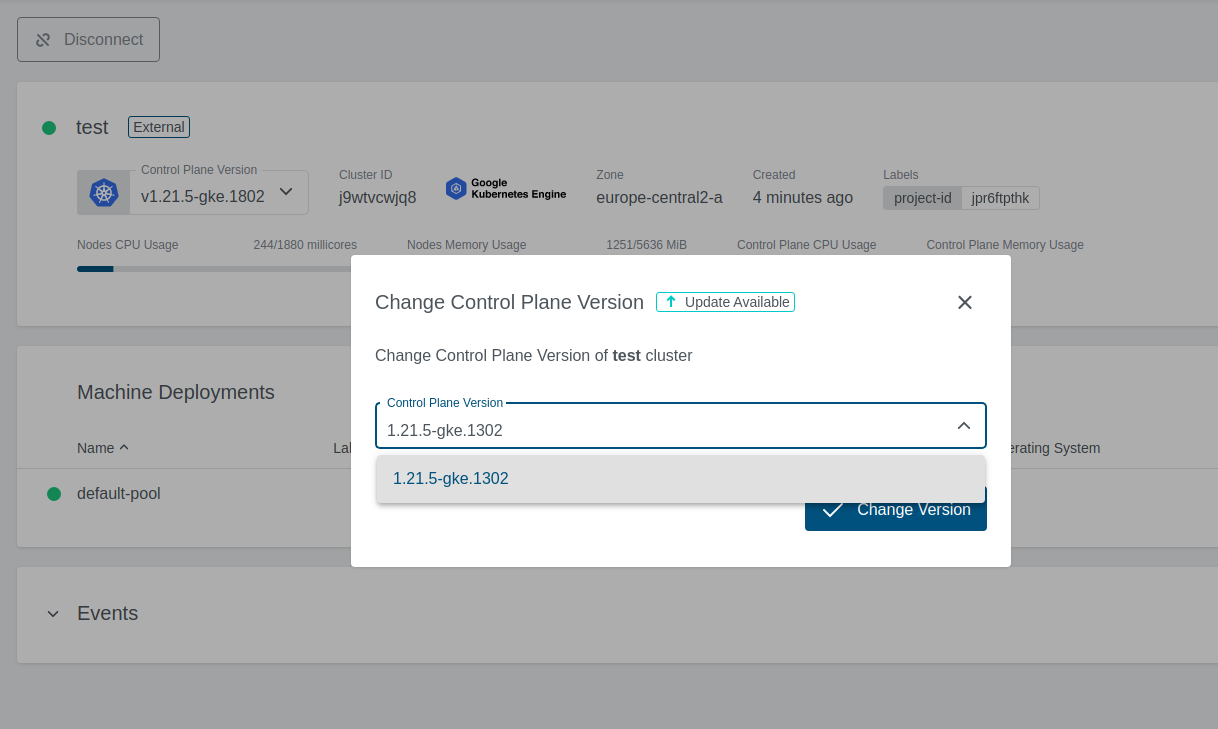

Upgrade GKE

If the version upgrade is valid, the cluster state will change to Reconciling.

Edit the Machine Deployment

Only one operation can be performed at one point of time. If the replica count is updated then Kubernetes version upgrade will be disabled and vice versa.

  • Navigate to the cluster overview, scroll down to machine deployments
  • Click on the edit icon next to the machine deployment you want to edit.

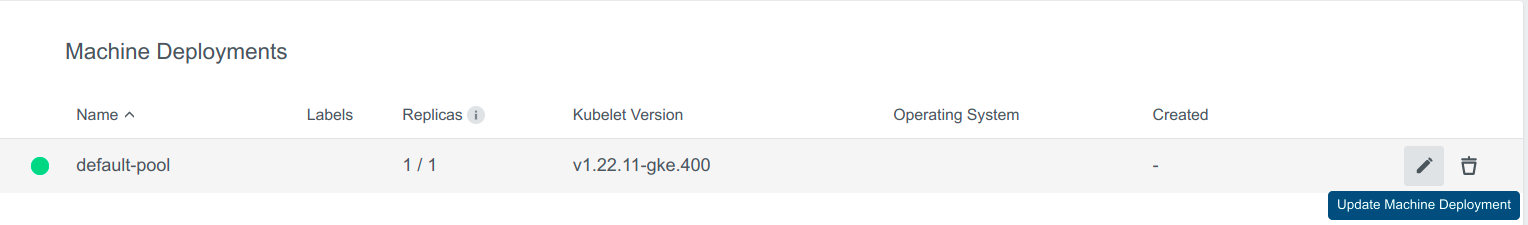

Edit GKE Machine Deployment

  • Upgrade Kubernetes Version. Select the Kubernetes Version from the dropdown to upgrade the md.

Update GKE Machine Deployment

  • Scale the replicas: In the popup dialog, you can increase or decrease the number of worker nodes that are managed by this machine deployment. Either specify the number of desired nodes or use the + or - to increase or decrease node count.

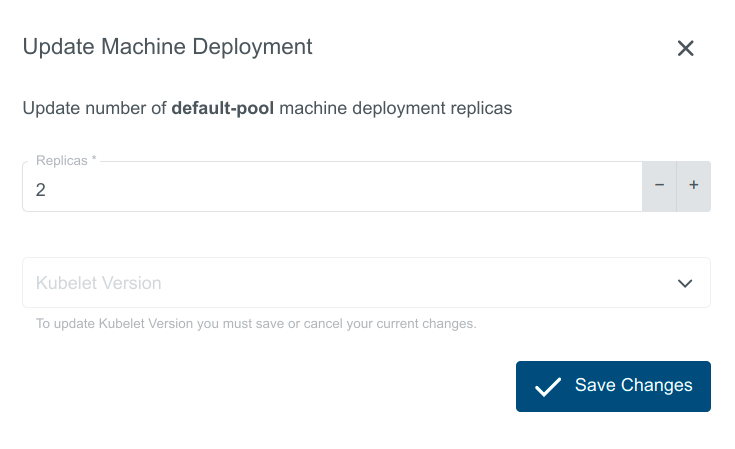

Scale GKE Machine Deployment

Delete Cluster

Delete operation is not allowed for imported clusters

Delete cluster operation allows to delete the cluster from the Provider. Click on the Delete button.

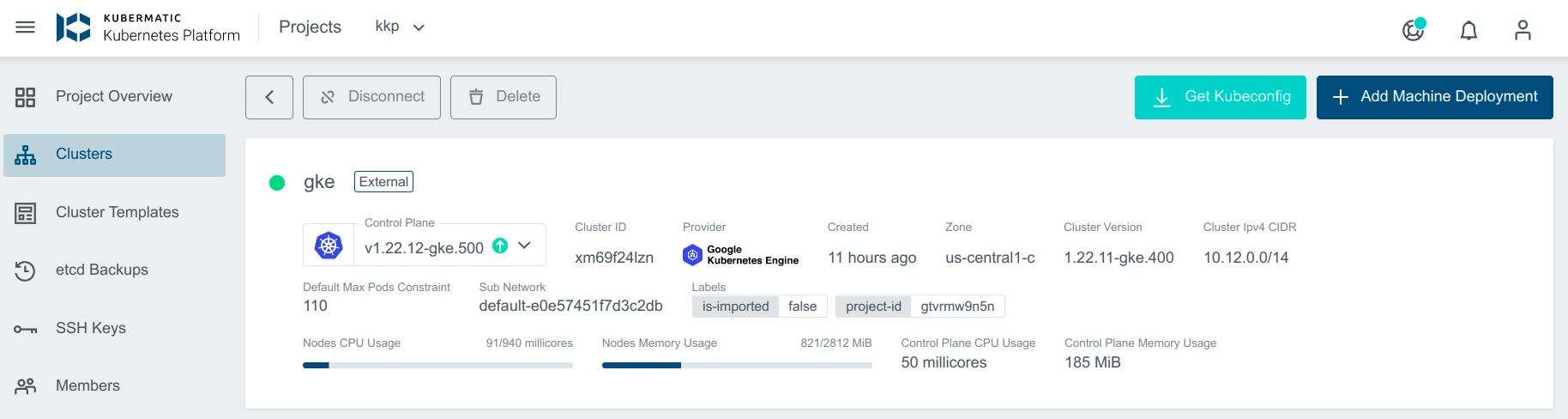

Delete Cluster

Delete the Node Pool

Navigate to the cluster overview, scroll down to machine deployments and click on the delete icon next to the machine deployment you want to delete.

Update GKE Machine Deployment

Authenticating with GKE

The KKP platform allows getting kubeconfig file for the GKE cluster.

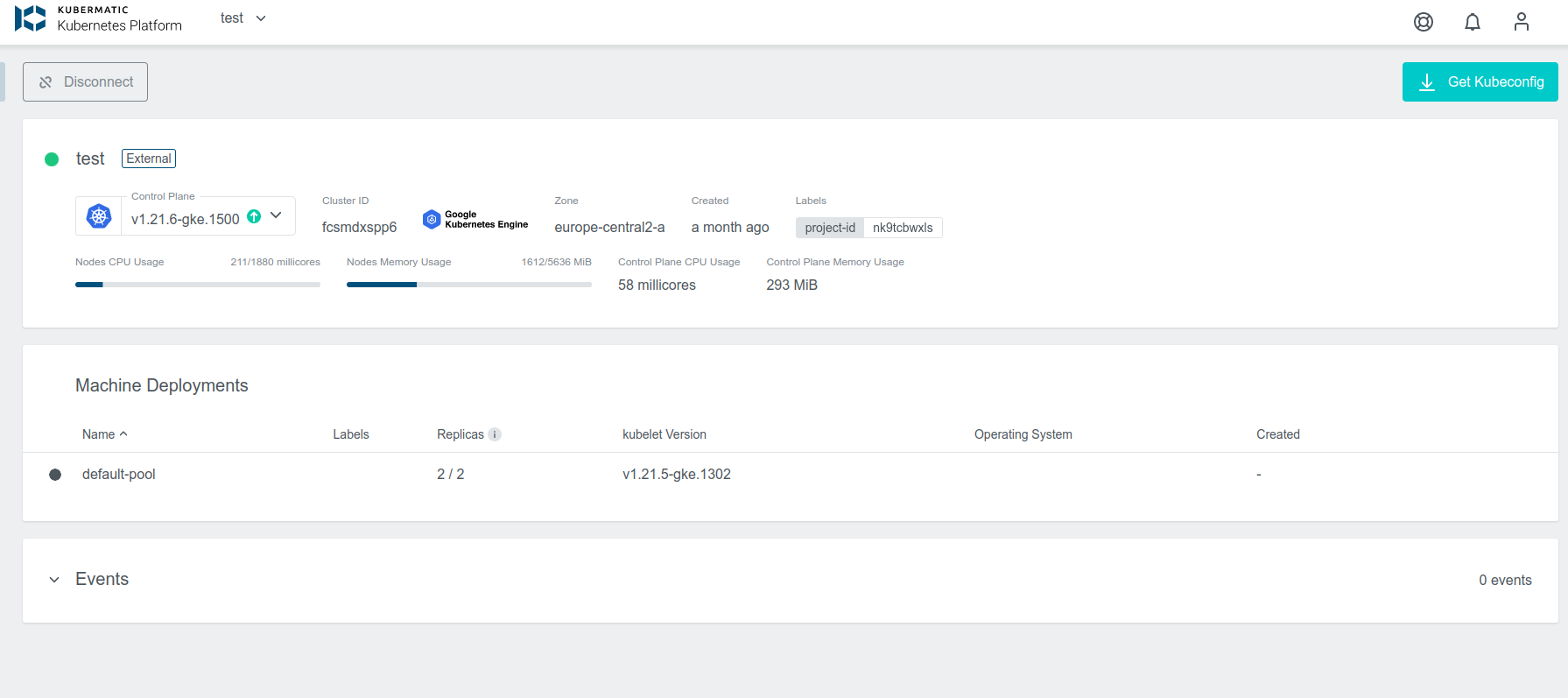

Get GKE kubeconfig

The end-user must be aware that the kubeconfig expires after some short period of time. To mitigate this disadvantage you can extend the kubeconfig for the provider information and use exported JSON with the service account for the authentication.

Add name: gcp for the users:

users:
- name: gke_kubermatic-dev_europe-central2-a_test
  user:
    auth-provider:
      name: gcp

Provide authentication credentials to your application code by setting the environment variable GOOGLE_APPLICATION_CREDENTIALS. This variable applies only to your current shell session. If you want the variable to apply to future shell sessions, set the variable in your shell startup file, for example in the ~/.bashrc or ~/.profile file.

export GOOGLE_APPLICATION_CREDENTIALS="KEY_PATH"

Replace KEY_PATH with the path of the JSON file that contains your service account key.

For example:

export GOOGLE_APPLICATION_CREDENTIALS="/home/user/Downloads/service-account-file.json"
