Azure Kubernetes Service

Import AKS Cluster

You can add an existing Azure Kubernetes Service cluster and then manage it using KKP.

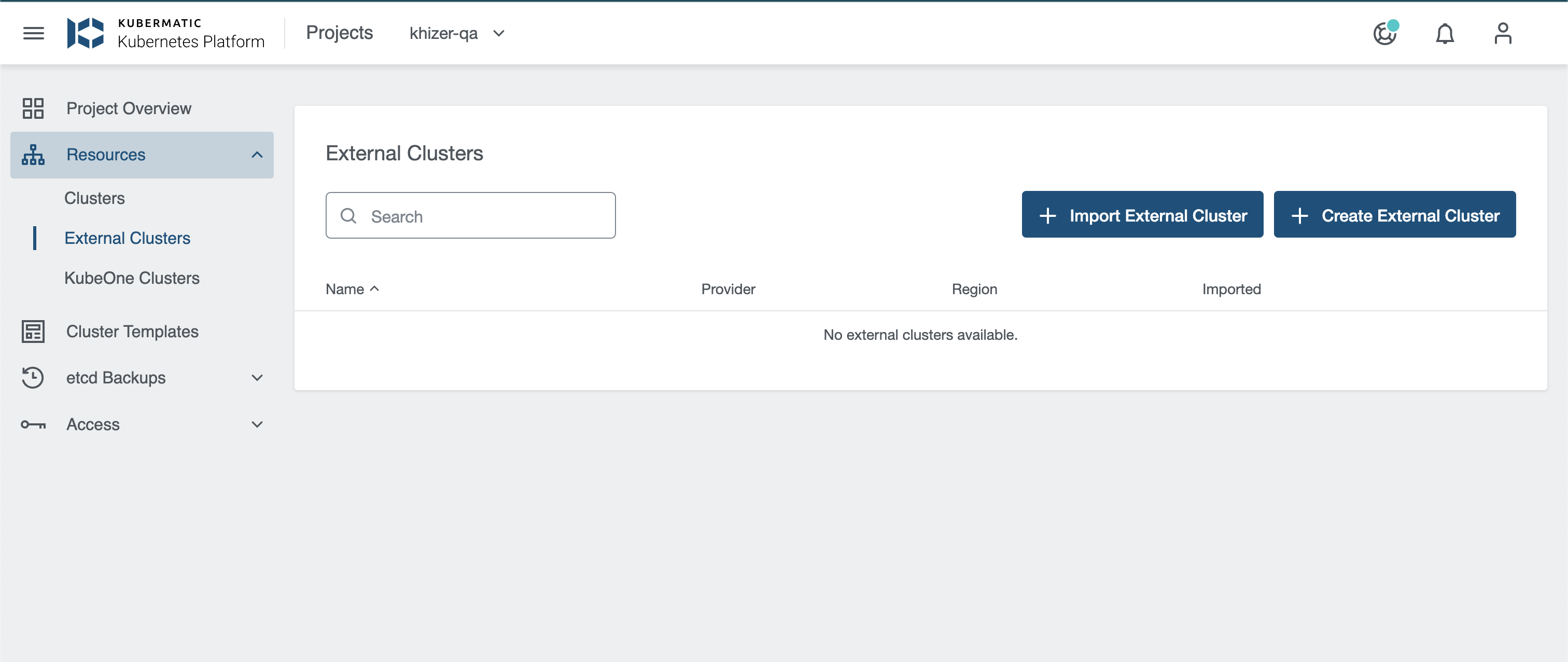

  • Navigate to External Clusters page.

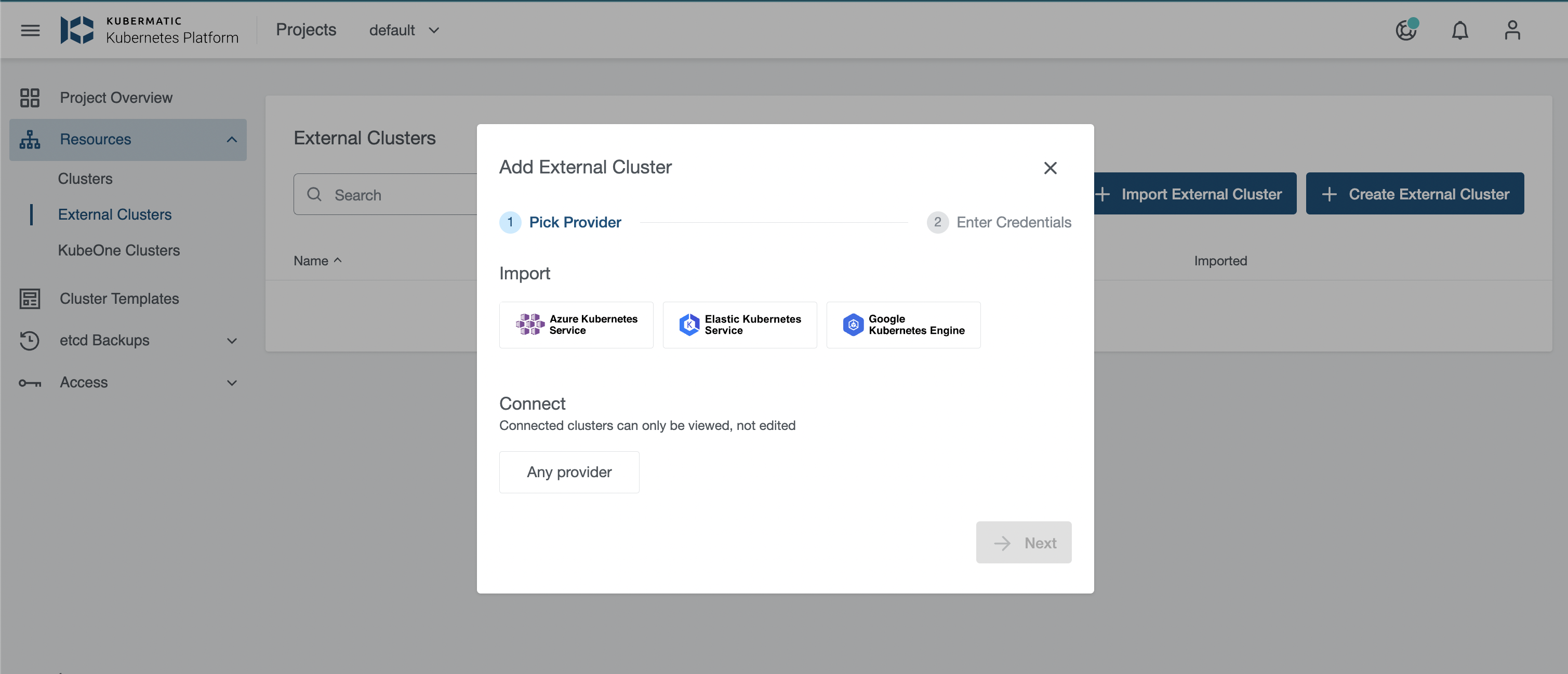

  • Click Import External Cluster button.

Add External Cluster

  • Pick Azure Kubernetes Cluster provider.

Select Provider

  • Provide Credentials in either of the below mentioned ways:

    • Select a pre-created preset which stores the provider specific credentials.

    • Manually enter the credentials Tenant ID, Subscription ID, Client ID and Client Secret.

The credentials should provide access rights to read & write Azure Kubernetes Service and list cluster admin credential, in order to fetch kubeconfig using API. Learn about Authorize Resource Group

  • After user provides all required credentials, credentials will be validated.

Validation performed will only check if the credentials have Read access.

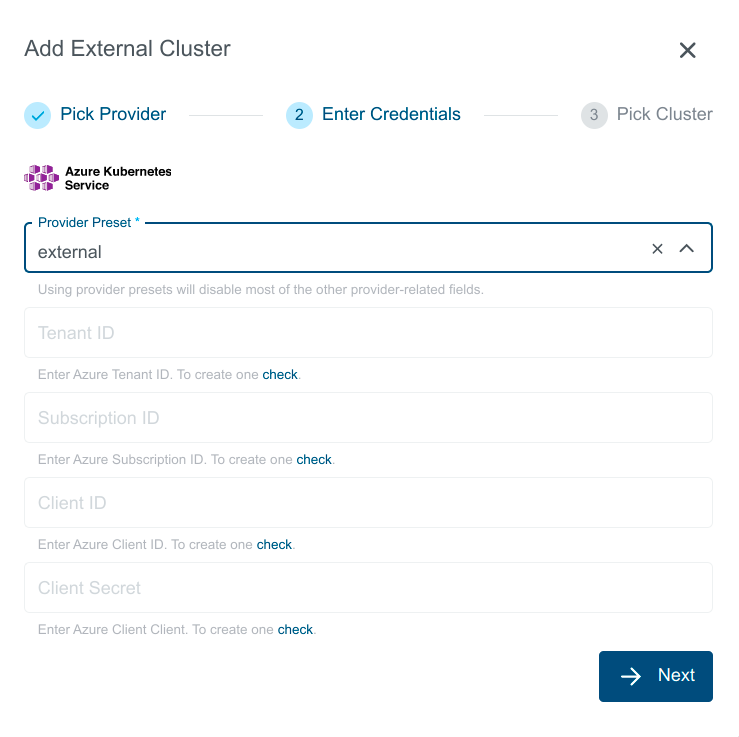

AKS credentials

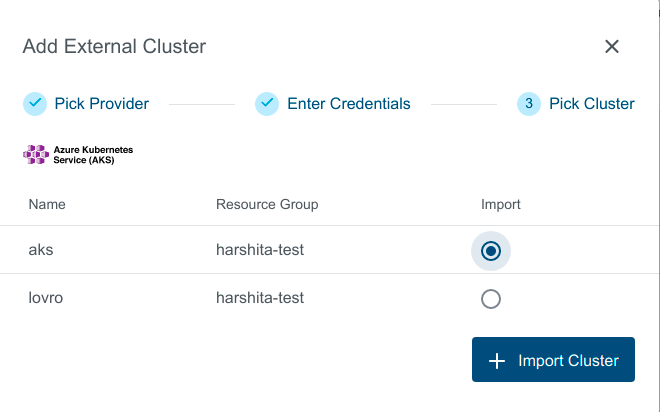

  • You should see the list of all available clusters. Select the one and click the Import Cluster button. Clusters can be imported only once in a single project. The same cluster can be imported in multiple projects.

Select AKS cluster

Create AKS Preset

Admin can create a preset on a KKP cluster using KKP Admin Panel. This Preset can then be used to Create/Import an AKS cluster.

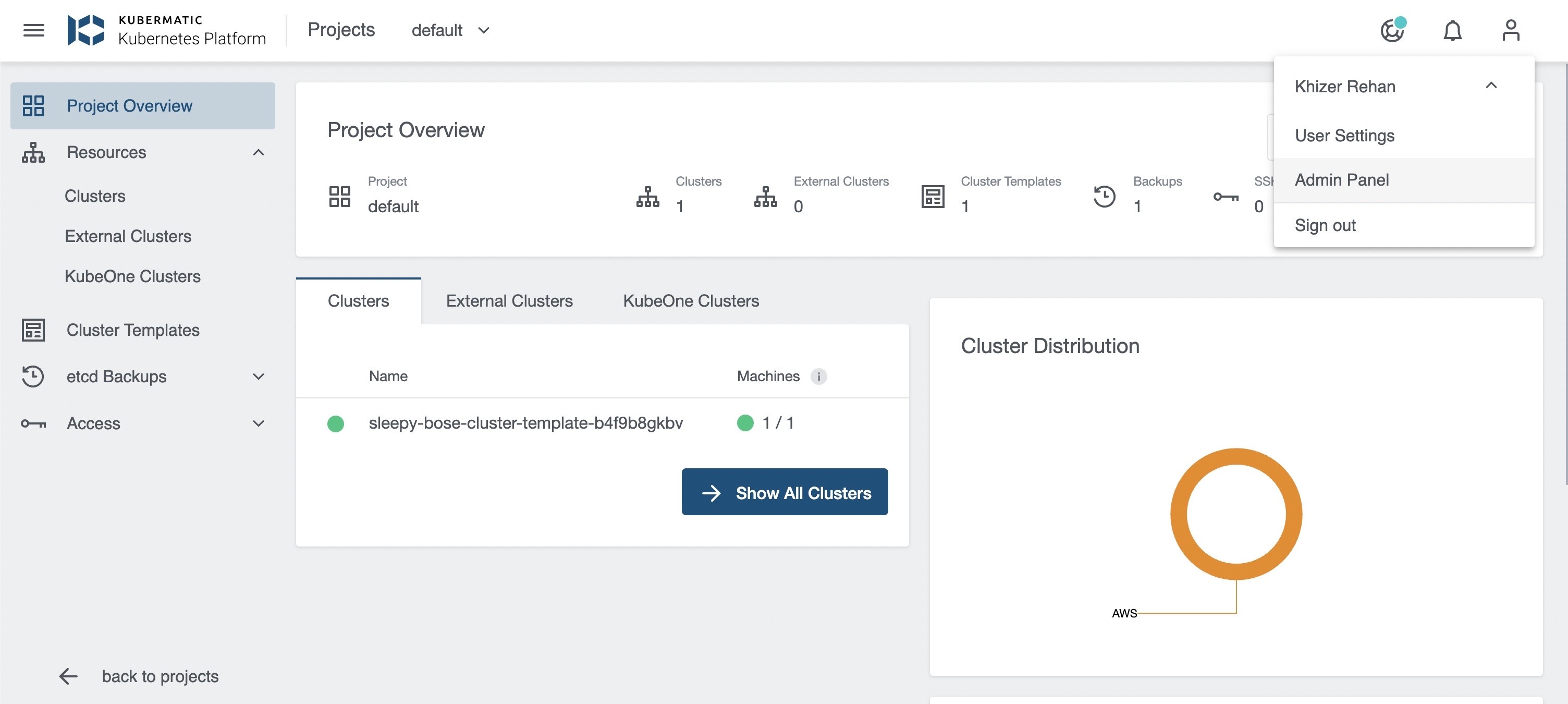

  • Click on Admin Panel from the menu.

Select Admin Panel

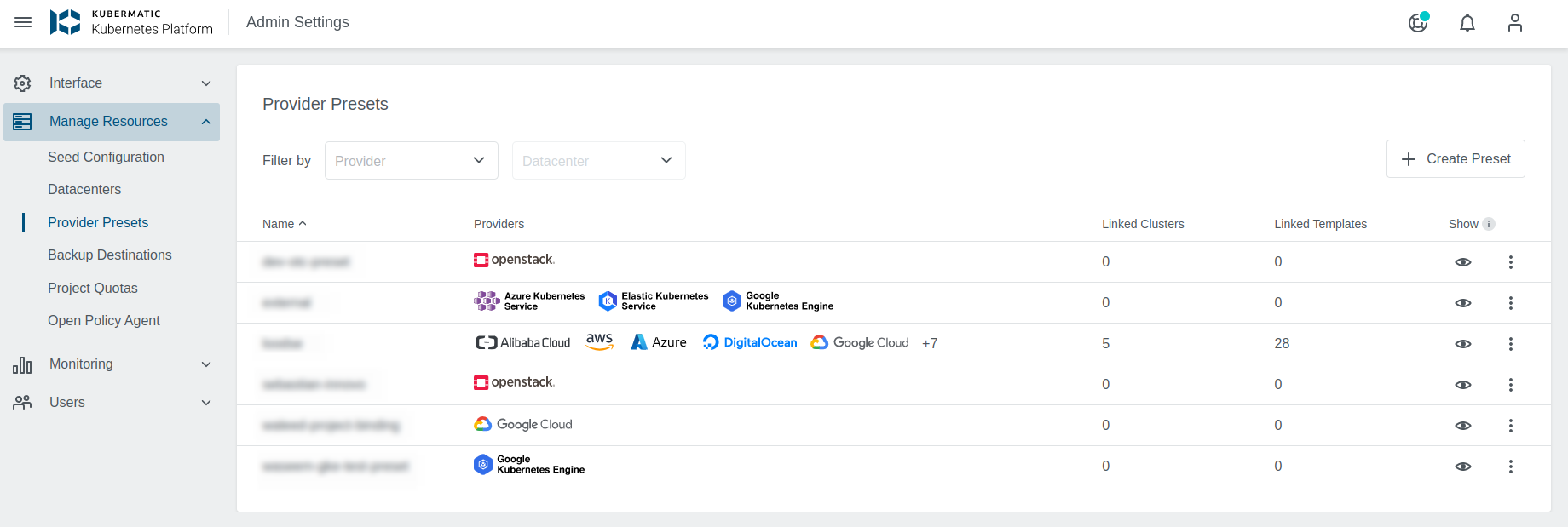

  • Navigate to Provider Presets Page and Click on + Create Preset button.

Provider Preset Page

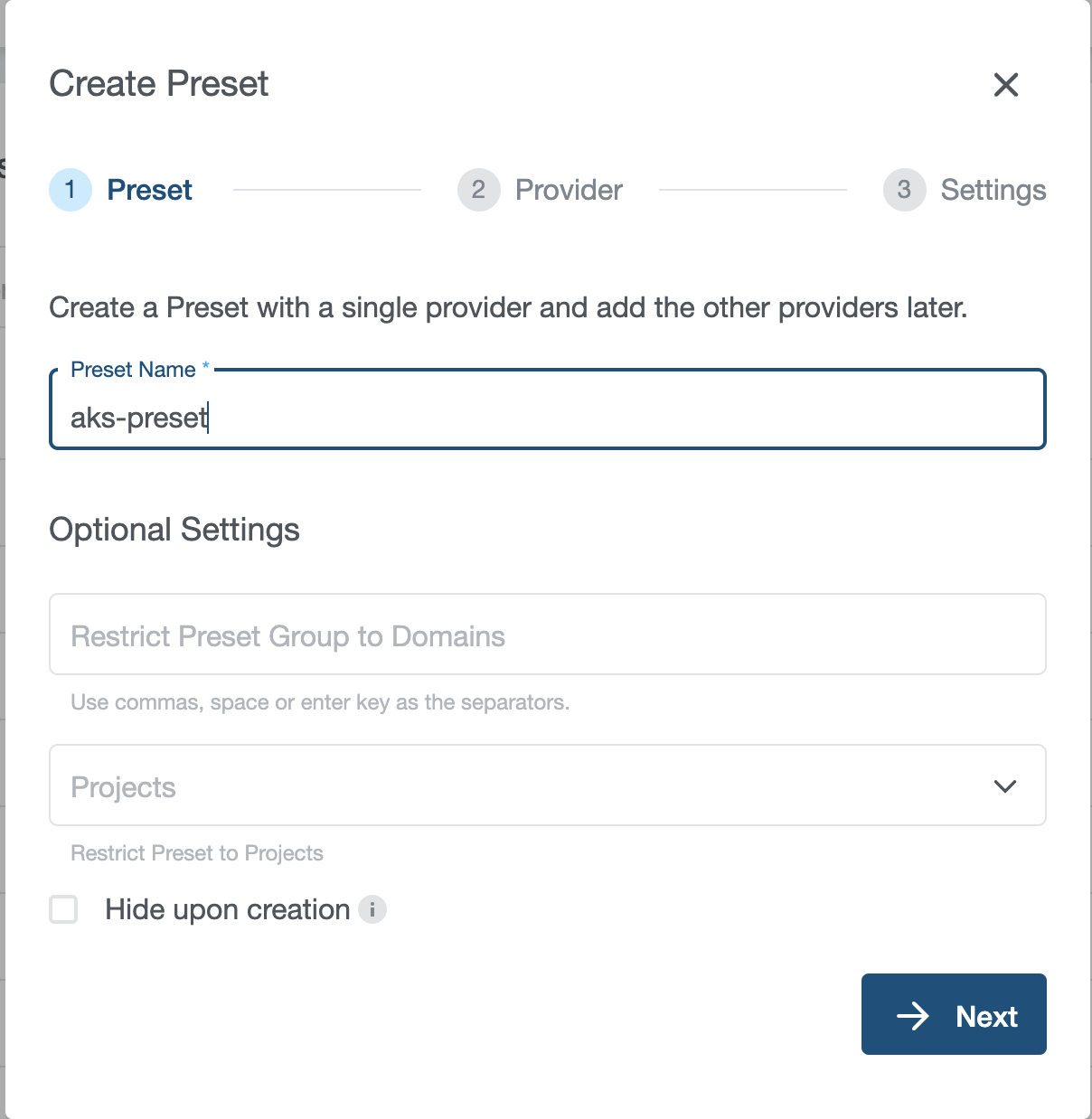

  • Enter Preset Name.

Provide Preset Name

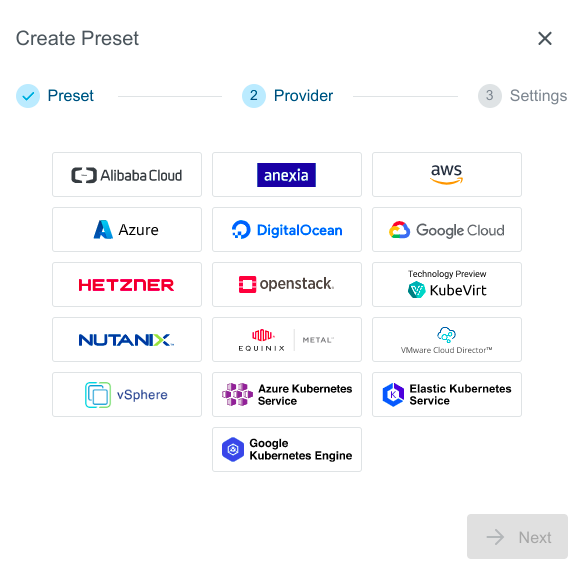

  • Choose Azure Kubernetes Service from the list of providers.

Choose AKS Preset

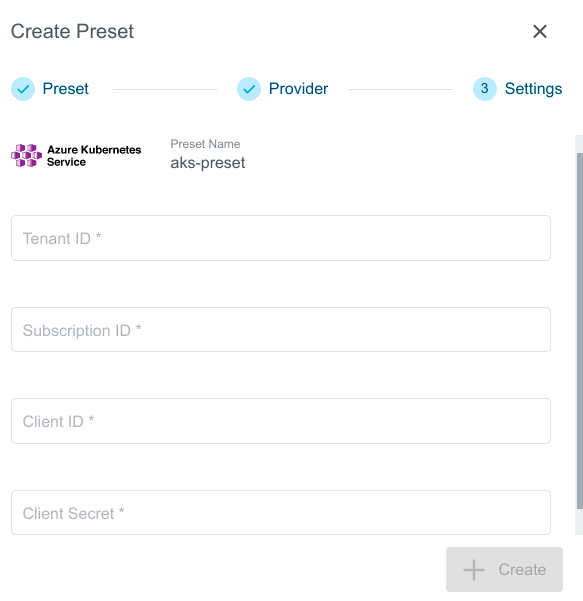

  • Enter AKS credentials and Click on Create button.

“Enter Credentials

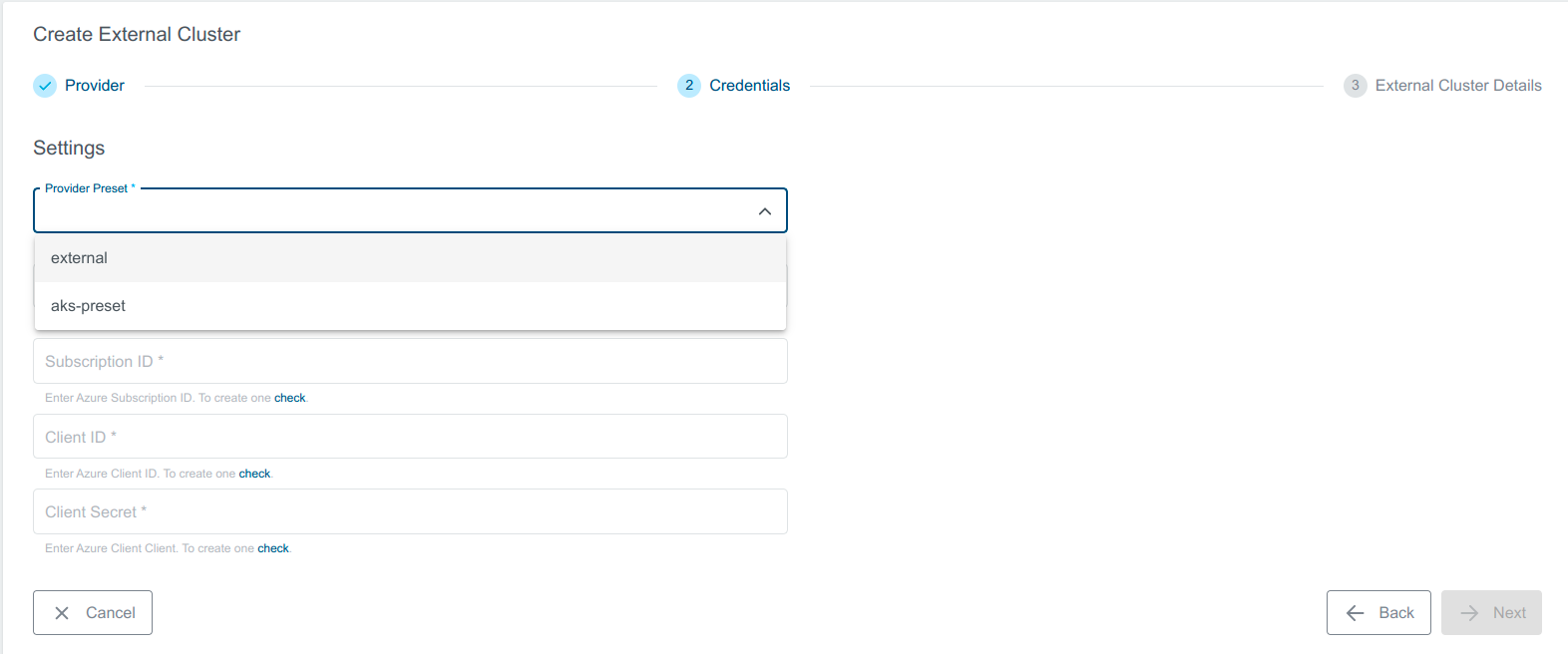

  • You can now use created AKS Preset to Create or Import AKS Cluster.

Select AKS Preset

Cluster Details Page

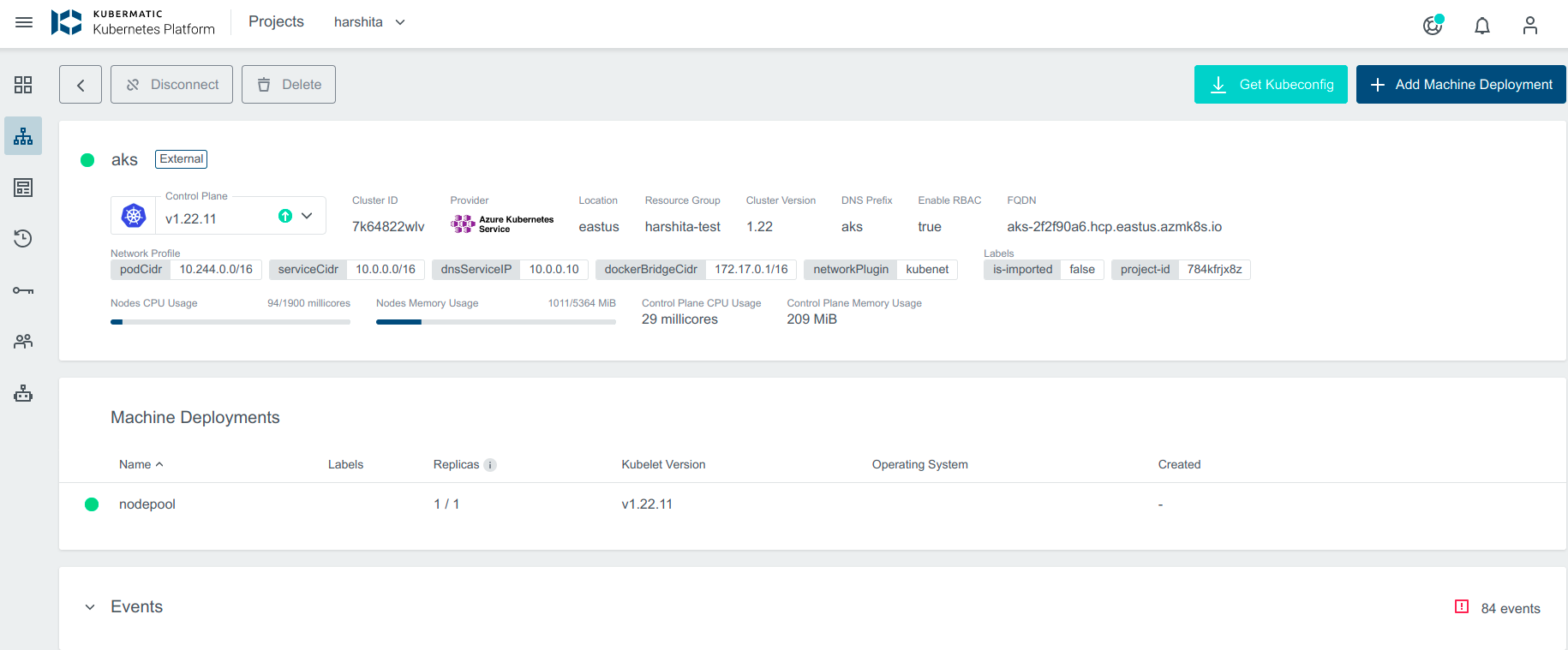

After the cluster is added, the KKP controller retrieves the cluster kubeconfig to display all necessary information. A healthy cluster has Running state. Otherwise, the cluster can be in the Error state. Move the mouse cursor over the state indicator to get more details.

AKS cluster

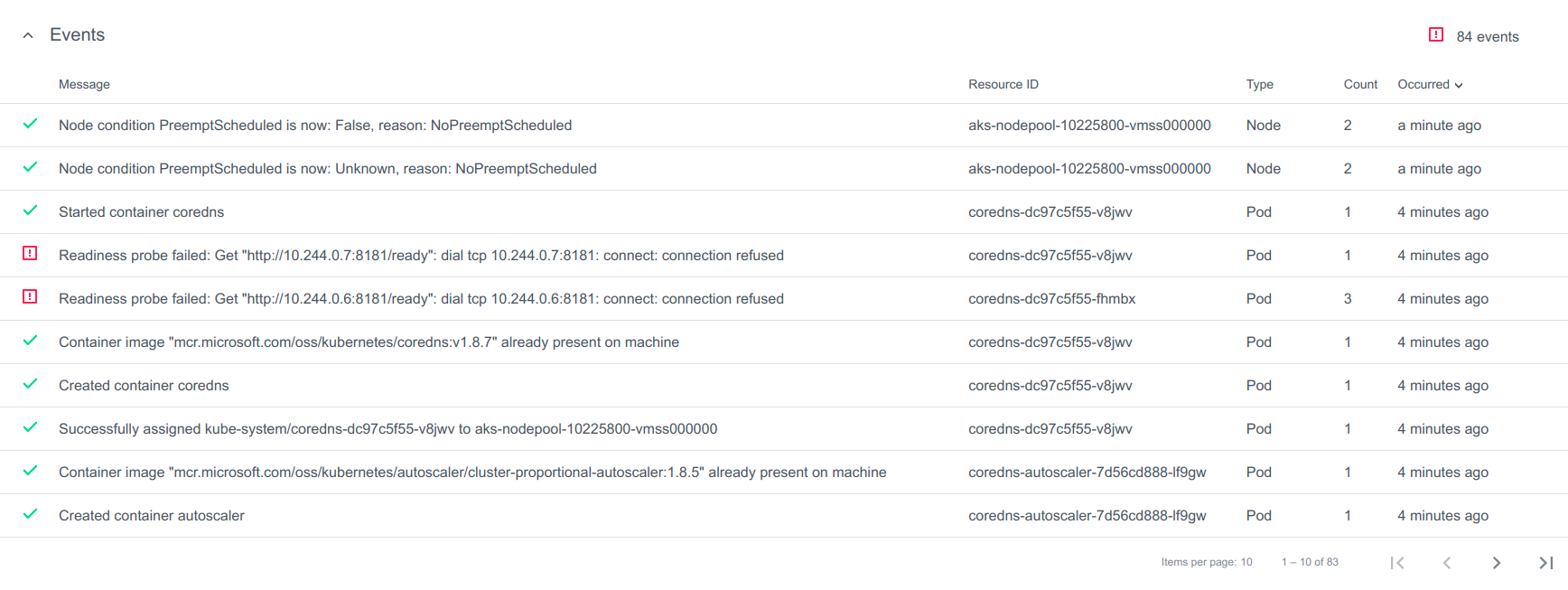

You can also expand Events to get information from the controller.

Cluster Events

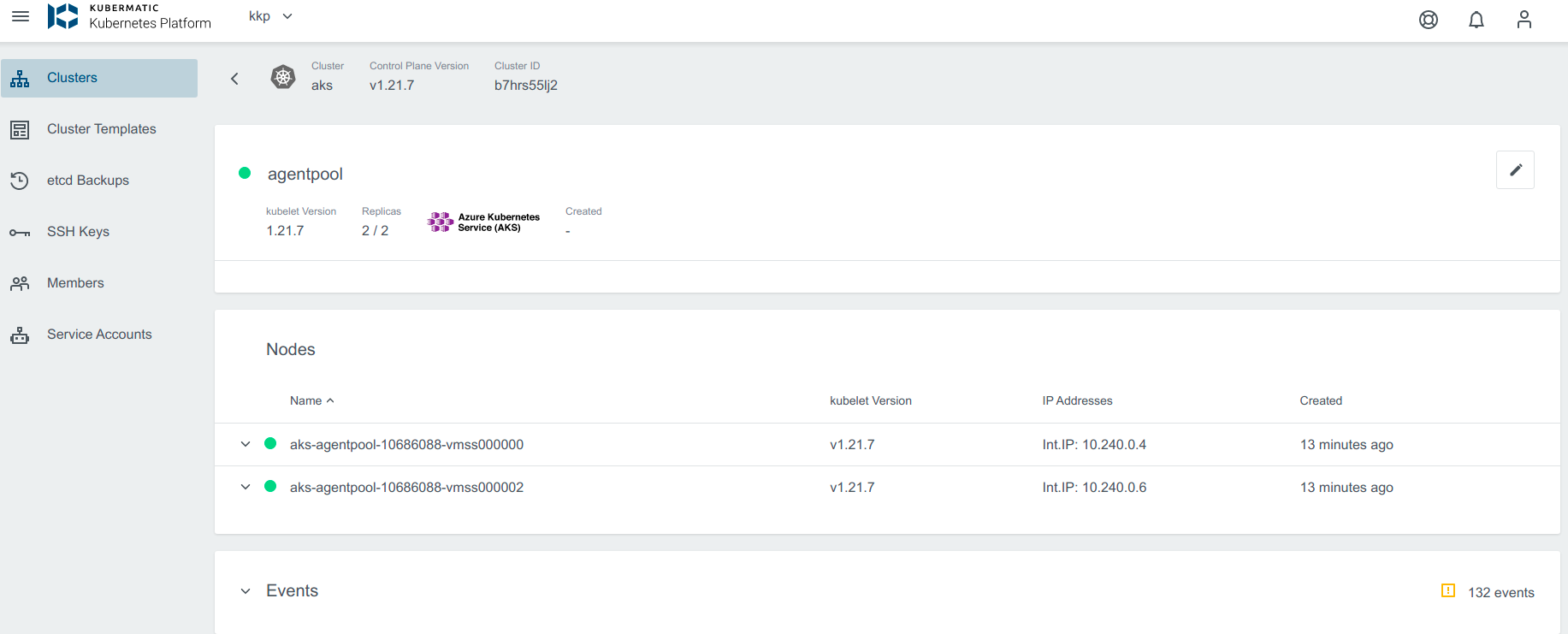

You can click on Machine Deployments to get the details:

AKS Machine Deployment

Update Cluster

Upgrade Cluster Version

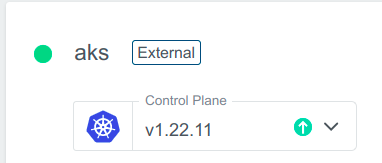

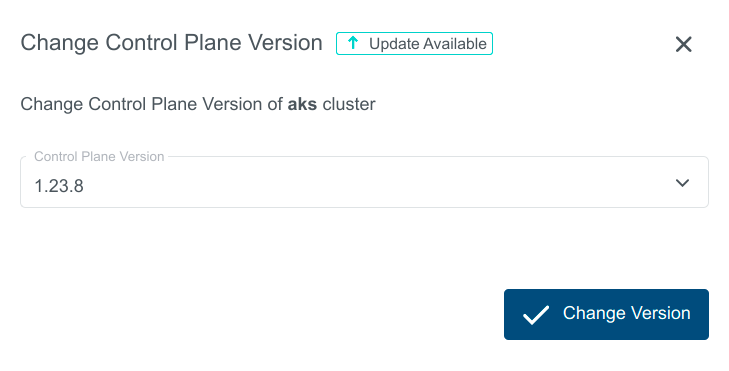

When an upgrade for the cluster is available, a little dropdown arrow will be shown beside the Control Plane Version on the cluster’s page. To start the upgrade, choose the desired version from the list of available upgrade versions and click on Change Version.

Upgrade Available

Upgrade AKS

If the version upgrade is valid, the cluster state will change to Reconciling.

Edit the Machine Deployment

Only one operation can be performed at one point of time. If the replica count is updated then Kubernetes version upgrade will be disabled and vice versa.

  • Navigate to the cluster overview, scroll down to machine deployments.

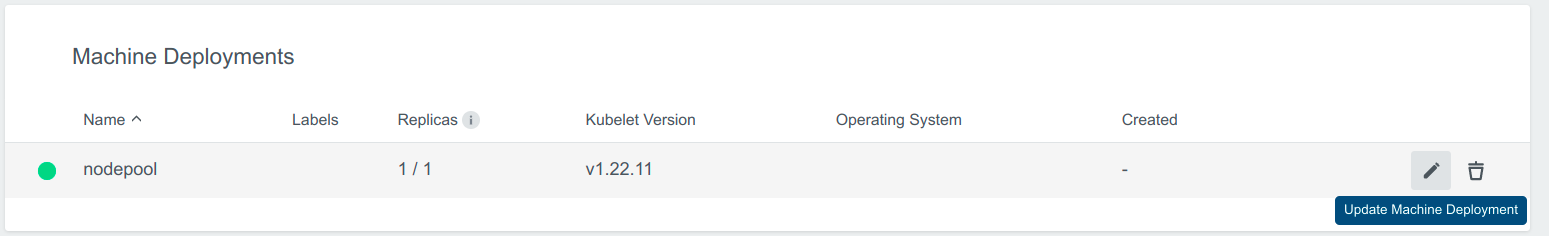

  • Click on the edit icon next to the machine deployment you want to edit.

Update AKS Machine Deployment

  • Upgrade Kubernetes Version. Select the Kubernetes Version from the dropdown to upgrade the machine deployment.

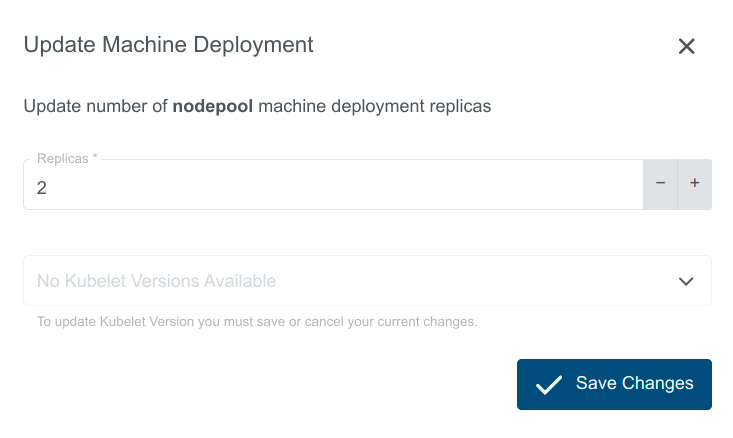

  • Scale the replicas: In the popup dialog, you can increase or decrease the number of worker nodes that are managed by this machine deployment.

Update AKS Machine Deployment

Delete Cluster

Delete operation is not allowed for imported clusters

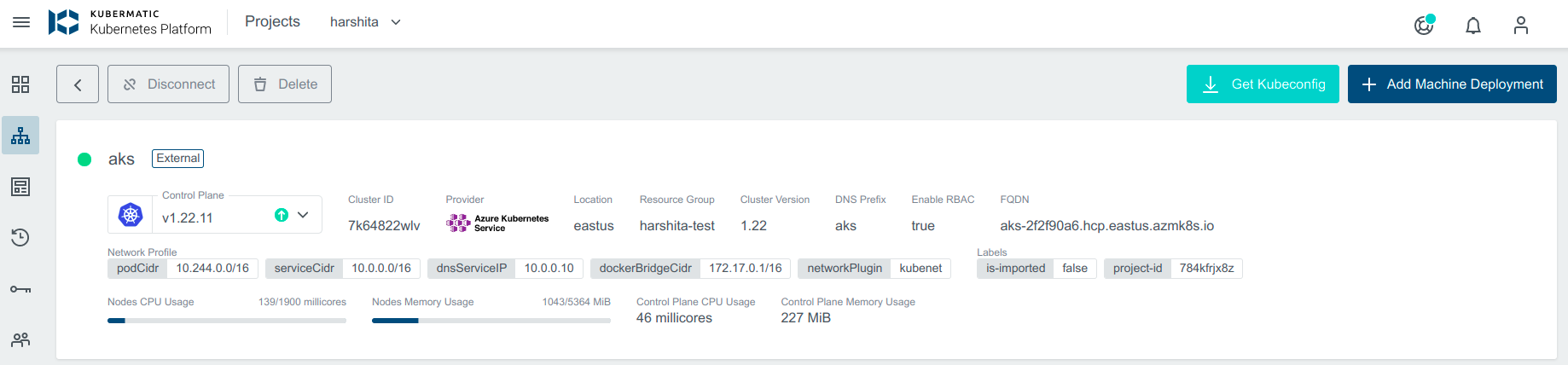

Delete cluster operation allows to delete the cluster from the Provider. Click on the Delete button.

Delete Cluster

Delete the Node Pool

At least one systempool is required in an AKS cluster.

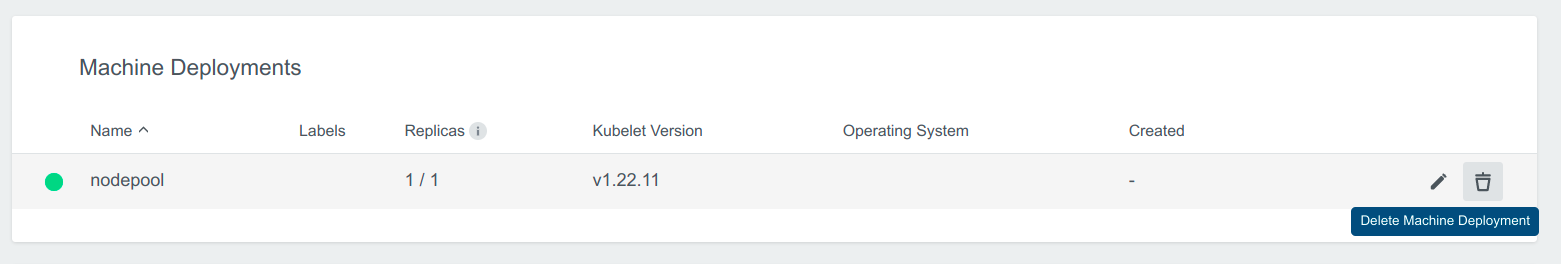

Navigate to the cluster overview, scroll down to machine deployments and click on the delete icon next to the machine deployment you want to delete.

Update AKS Machine Deployment

Cluster State

Provisioning State is used to indicate AKS Cluster State This represents the state of the last operation attempted on this node pool, such as scaling the number of nodes or upgrading the Kubernetes version. The nodes may still be running even if this state is showing as ‘Failed’. Check previous operations on the node pool to resolve any failures.

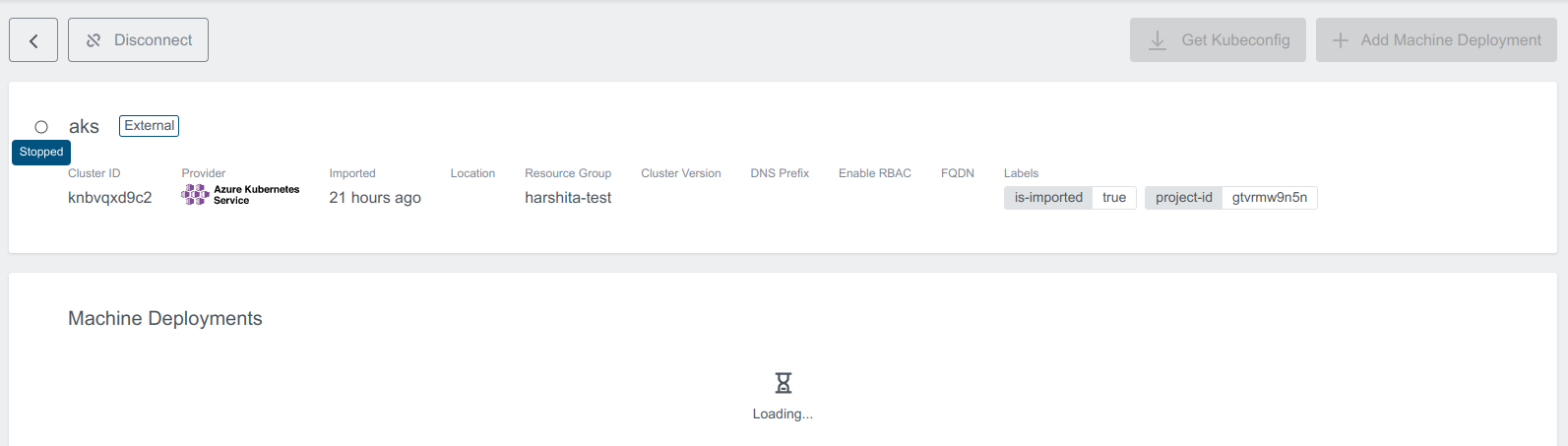

If the cluster is stopped from the Azure side, you will be able to see the current state of the cluster as stopped. Cluster details will not be visible as the details are fetched using kubeconfig, and the kubeconfig is not available for the stopped cluster.

AKS Cluster Stopped
