API Server Access Control

API Server Network Policies

To ensure proper isolation of control plane components in Seed clusters, as of KKP version 2.18, KKP uses NetworkPolicies to constraint the egress traffic of the Kubernetes API Server.

The egress traffic of the API Server pods is restricted to the following set of control plane pods of the same user cluster:

• etcd
• dns-resolver
• openvpn-server
• machine-controller-webhook
• metrics-server

The NetworkPolicies are automatically applied to all newly created clusters. For previously existing clusters, the feature can be activated by adding the feature gate apiserverNetworkPolicy to the Cluster resource / API object (Cluster spec.features).

To ensure that NetworkPolicies are actually in place, make sure that the CNI plugin used for the Seed cluster supports the NetworkPolicies.

Disabling API Server Network Policies

Under certain situations (e.g. for debugging purposes), it may be necessary to disable API Server Network Policies. This can be done either for an existing user cluster, or globally on seed cluster level.

In a User Cluster

In an already existing user cluster, the API Server Network Policies can be disabled manually using these steps:

• remove the feature gate apiserverNetworkPolicy in the Cluster resource / API object (Cluster spec.features),
• manually delete all NetworkPolicy resources in the user cluster namespace of the seed cluster (see kubectl get networkpolicy -n cluster-<cluster-id>).

In a Seed Cluster

The API Server Network Policies can be disabled for all newly created user clusters on the Seed cluster level using the Defaulting Cluster Template feature.

In the defaulting cluster template, set the apiserverNetworkPolicy feature gate to false, e.g.:

spec:
  features:
    apiserverNetworkPolicy: false

Please note that this procedure does not affect already running user clusters, for those the API Server Network Policies need to be disabled individually as described in the previous section.

API Server Allowed Source IP Ranges

Since KKP v2.22, it is possible to restrict the access to the user cluster API server based on the source IP ranges. By default (when not configured), the access is not restricted and the API server is accessible from anywhere. To restrict the API server access, Cluster’s spec.apiServerAllowedIPRanges needs to be configured with the list of allowed IP ranges (CIDR blocks). Access from IP addresses outside the configured ranges will be denied.

To restrict the access to the API server, set the apiServerAllowedIPRanges in the in the cluster spec, as shown in the example below:

spec:
  exposeStrategy: LoadBalancer
  apiServerAllowedIPRanges:
    cidrBlocks:
    - 192.168.1.10/32

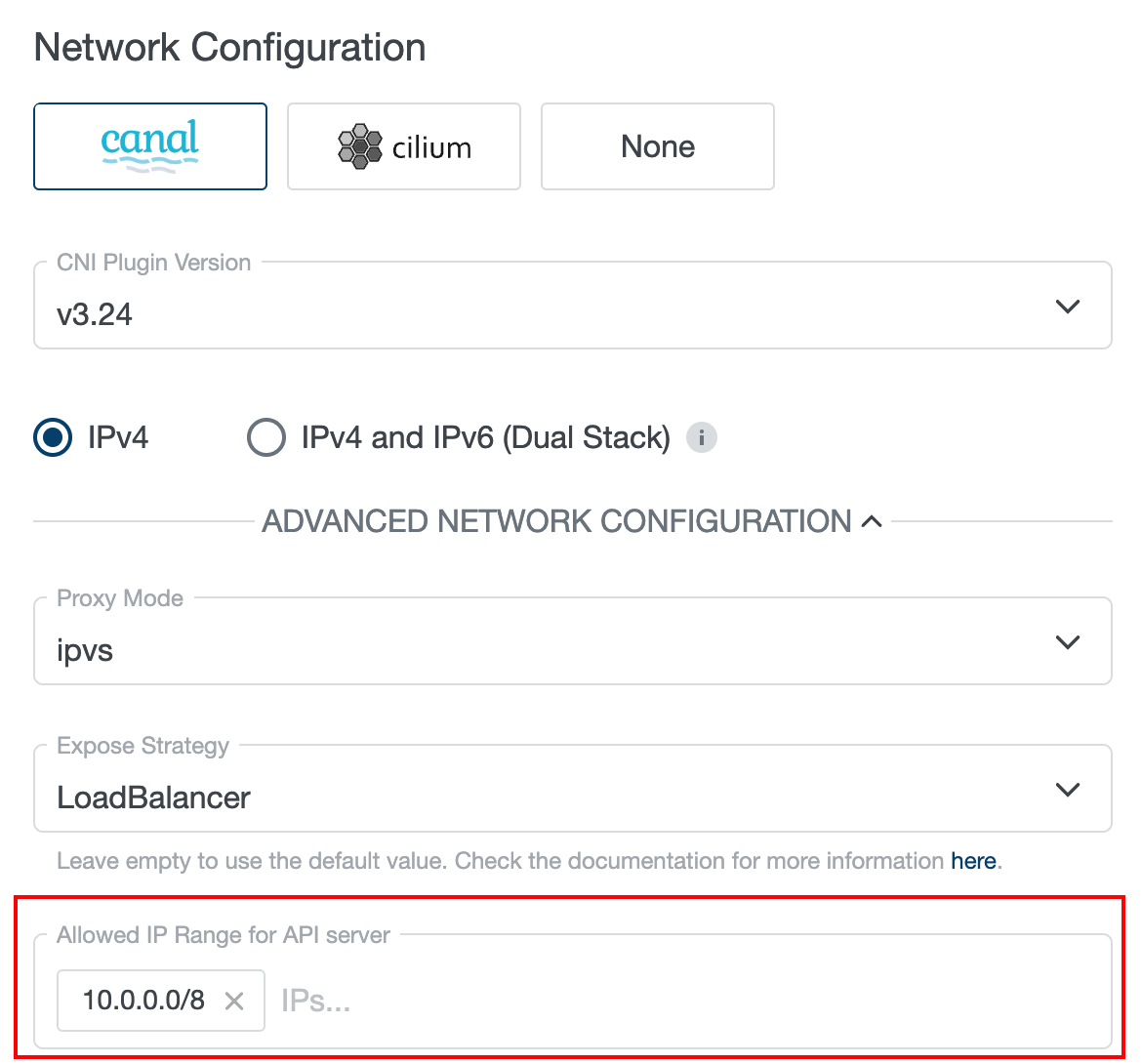

This can be also configured from the KKP UI, either during cluster creation, under the “Network Configuration” > “Advanced Network Configuration”:

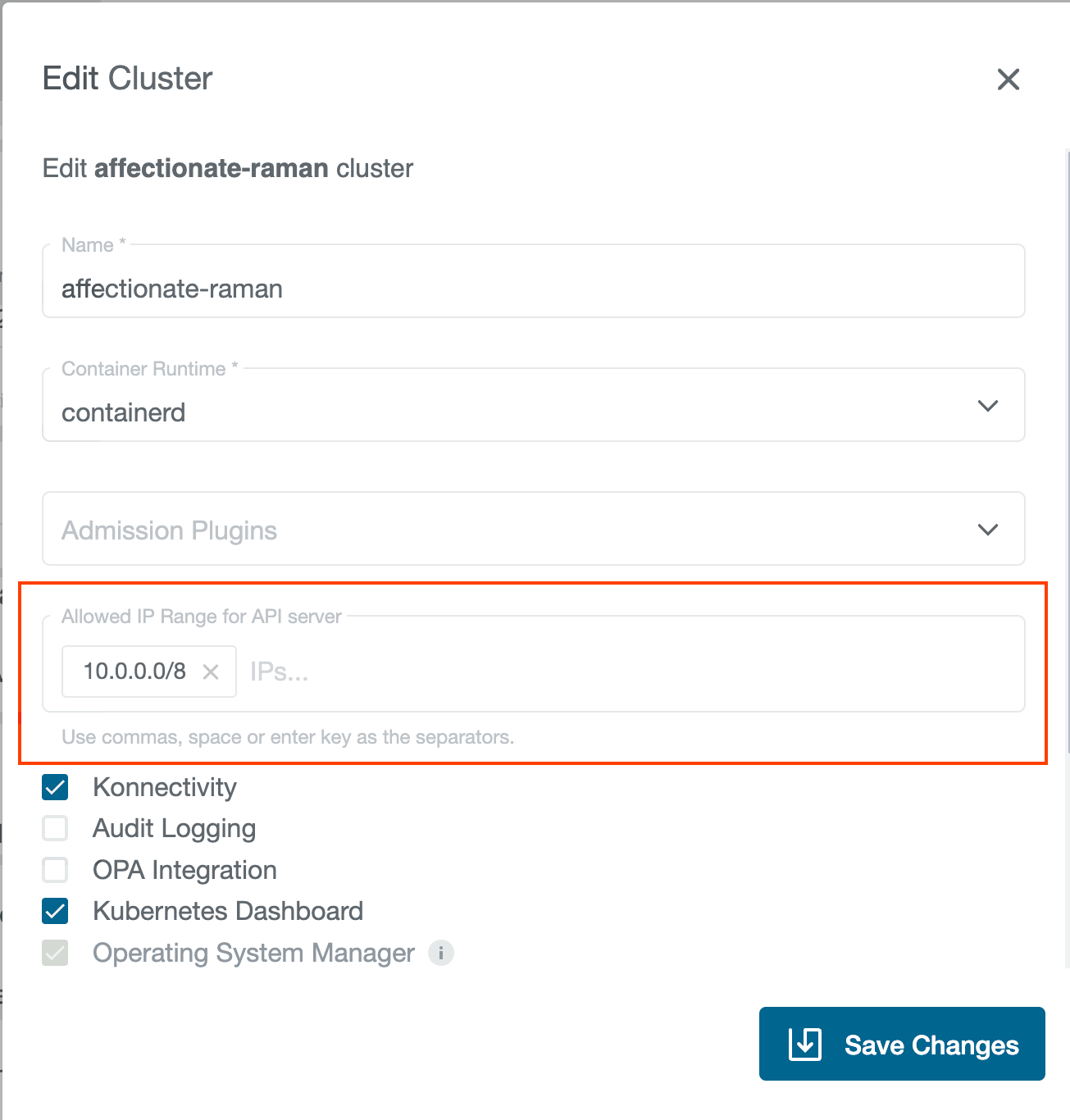

or in an existing cluster via the “Edit Cluster” dialog:

API Server Service Type

By default, the service type for API Server is determined by the expose strategy used. When using the LoadBalancer strategy, the service type is LoadBalancer. When using the NodePort strategy, the service type is NodePort.

It is possible to explicitly set the service type for API Server in the datacenter spec, via the apiServerServiceType field. The supported service types are: ClusterIP, NodePort and LoadBalancer.

apiVersion: kubermatic.k8c.io/v1
kind: Seed
metadata:
  name: usa
  namespace: kubermatic
spec:
  country: US
  datacenters:
    usa-east:
      country: US
      location: NV
      spec:
        apiServerServiceType: LoadBalancer
        aws:
          region: us-east-1

When using the LoadBalancer service type, the API Server is exposed via an external load balancer. The domain/IP address of the load balancer is then used to access the API server from outside the cluster. The Kubeconfig that the users can download from the dashboard will also use this address to connect to the API server.
