A Kubernetes cluster (KubeVirt infrastructure cluster), which consists of nodes that have a hardware virtualization support with at least:
Software requirement:
The cluster version must be in the scope of supported KKP Kubernetes clusters and it must be in the KubeVirt Support Matrix.
First use KubeOne, to set up a highly-available Kubernetes cluster on bare metal. Refer to the KubeOne documentation for details on how to use it.
Follow KubeVirt and Containerized Data Importer documentation to find out how to install them.
We require the following KubeVirt configuration:
apiVersion: kubevirt.io/v1
kind: KubeVirt
metadata:
name: kubevirt
namespace: kubevirt
spec:
configuration:
developerConfiguration:
featureGates:
- ExperimentalIgnitionSupport
- DataVolumes
- LiveMigration
- CPUManager
- CPUNodeDiscovery
- Sidecar
- Snapshot
- HotplugVolumes
It is not required to have any specific Containerized Data Importer configuration as long the main storage is not local disks.
Otherwise, CDI must be configured with HonorWaitForFirstConsumer
feature gate.
apiVersion: cdi.kubevirt.io/v1beta1
kind: CDI
metadata:
name: cdi
spec:
config:
featureGates:
- HonorWaitForFirstConsumer
Refer to this document to learn more about how KubeVirt handles local disks storage.
Currently, it is not recommended to use local or any topology constrained storage due to the issue with kubevirt csi driver
Once you have Kubernetes with all needed components, the last thing is to configure KubeVirt datacenter on seed.
We allow to configure:
customNetworkPolicies
- Network policies that are deployed on the infrastructure cluster (where VMs run).dnsConfig
and dnsPolicy
- DNS config and policy which are set up on a guest. Defaults to ClusterFirst
.images
- Images for Virtual Machines that are selectable from KKP dashboard.infraStorageClasses
- Storage classes that are initialized on user clusters that end users can work with.Refer to this document for more details and configuration example.
By default, each user cluster is deployed with the cluster-isolation Network Policy that allows network communication
only inside the cluster. You should use customNetworkPolicies
to customize the network rules to your needs.
Remember that new rules will affect all user clusters.
Install prometheus-operator on the KubeVirt cluster.
Then update KubeVirt
configuration with the following spec:
apiVersion: kubevirt.io/v1
kind: KubeVirt
metadata:
name: kubevirt
namespace: kubevirt
spec:
monitorNamespace: "<<PROMETHEUS_NAMESPACE>>"
monitorAccount: "<<PROMETHEUS_SERVICE_ACCOUNT_NAME>>"
For more details please refer to this document.
After completing the above setup, you can import the KubeVirt Dashboard to Grafana. Follow the official Grafana documentation to learn how to import the dashboard.

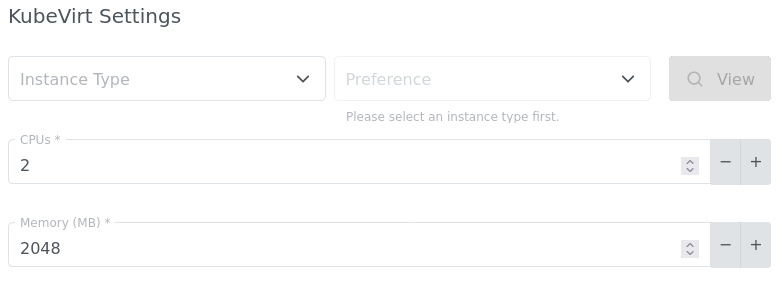

We provide a Virtual Machine templating functionality over Instance Types and Preferences.
You can use our standard
Instance Types:
and Preferences (which are optional):
or you can just simply adjust the amount of CPUs and RAM of our default template according to your needs.
Additionally, if our templates will not fulfill your requirements then a KubeVirt cluster admin can create customized instance types and preferences that users can select later. Read how to add new Instance Types and Preferences.
KubeVirt can take advantage of Kubernetes inner features to provide an advanced scheduling mechanism to virtual machines (VMs):

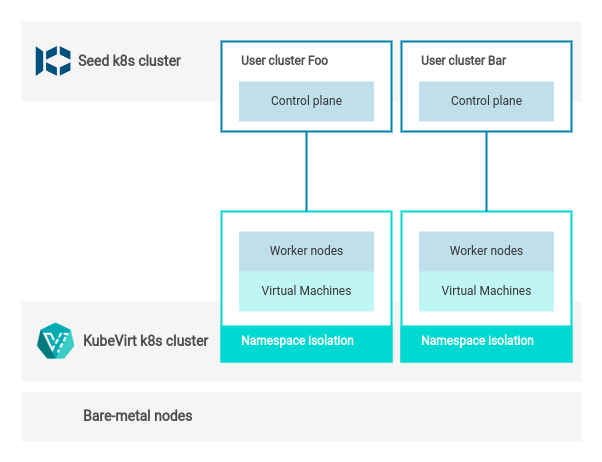

Since KubeVirt VMs are wrapped in pods, the Kubernetes scheduling rules applicable to pods are completely valid for KubeVirt VMs. This allows you to restrict KubeVirt VMs (see architecture) to run only on specific KubeVirt infra nodes.
Note that topology spread constraints and node affinity presets are applicable to KubeVirt infra nodes.
Each Virtual Machine you create has default topology spread constraints applied:
maxSkew: 1
topologyKey: kubernetes.io/hostname
whenUnsatisfiable: ScheduleAnyway
this allows us to spread Virtual Machine equally across a cluster.

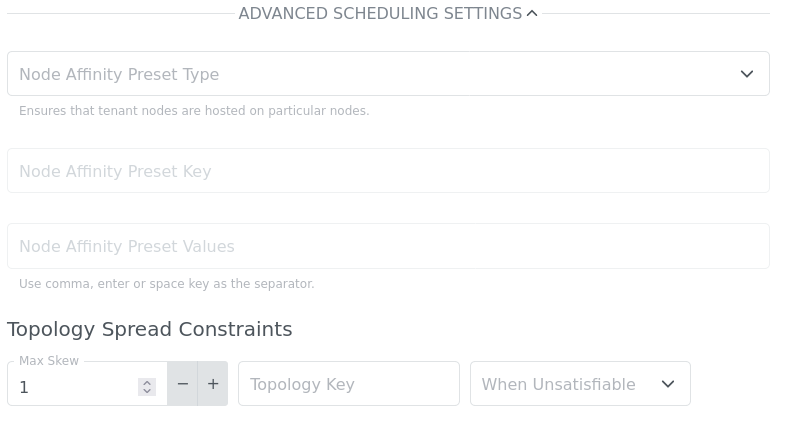

It is possible to change the default behaviour and create your own topology combined with Node Affinity Presets. You can do it by expanding ADVANCED SCHEDULING SETTINGS on the initial nodes dashboard page.
Node Affinity Preset Key
refers to the key of KubeVirt infra node labels.Node Affinity Preset Values
refers to the values of KubeVirt infra node labels.Node Affinity Preset type can be hard
or soft
and refers to the same notion of Pod affinity/anti-affinity types:
hard
: the scheduler can’t schedule the VM unless the rule is met.soft
: the scheduler tries to find a node that meets the rule. If a matching node is not available, the scheduler still schedules the VM.It gives you a possibility to create your own unique scheduling options that override ours. For instance, you could avoid creation of Virtual Machines on database nodes etc.
Note that you can specify a Node Affinity Preset Key
and leave Node Affinity Preset Values
empty to constrain the VM to run on KubeVirt infra nodes that have a specific label key (whatever the values are).
You can do it by simply creating a new VirtualMachineClusterInstancetype
and VirtualMachineClusterPreference
on the KubeVirt infrastructure cluster.
Those resources are cluster scoped meaning all users will see them.
Refer to the InstanceTypes and Preferences guide for details on how to use it.
You can do it as with every standard k8s cluster, over kubectl drain
command.
We implemented a mechanism that will allow you to safely drain a bare-metal node without losing the VM workload. After running a drain command the VMs running on the node along with their workload will be evicted to different nodes.
More details on the eviction implementation can be found here.
Remember, the responsibility of making sure that the workload can be evicted lies on you.
Invalid PodDisruptionBudget
configuration may block the eviction.
Additionally consider skipEvictionAfter parameter of Machine Controller that sets the timeout for workload eviction. Once exceeded, the VMs will simply be deleted.
Usually it happens when both infrastructure and user clusters points to the same address of NodeLocal DNS Cache servers, even if they have separate server instances running.
Let us imagine that:
One way to prevent that situation is to set a dnsPolicy
and dnsConfig
rules that Virtual Machines do not copy DNS configuration from their pods and points to different addresses.
Follow Configure KKP With KubeVirt to learn how set DNS config correctly.
In most cases it is due to cluster-isolation
network policy that is deployed as default on each user cluster.
It only allows in-cluster communication. You should adjust network rules to your needs by adding customNetworkPolicies configuration).
For instance, if you need to allow all ingress traffic from 10.200.10.0/24
CIDR to each user cluster then you would have to set:
customNetworkPolicies:
- name: allow-external-traffic
spec:
policyTypes:
- Ingress
ingress:
- from:
- ipBlock:
cidr: 10.200.10.0/24
Currently, the KubeVirt CSI driver does not support volumes with block mode therefore you should avoid using this option to mount a PVC to a user cluster.
Due to the issue, it is not recommended to use local or any storage that is constrained by some topology. You can find more details in the linked issue.
Kubermatic Virtualization graduates to GA from KKP 2.22! On the way, we have changed many things that improved our implementation of KubeVirt Cloud Provider.
Just to highlight the most important:
Additionally, we removed some features that didn’t leave technology preview stage, those are:
The official upgrade procedure will not break clusters that already exist, however, scaling cluster nodes will not lead to expected results. We require to update Machine Deployment objects and rotate machines right after the upgrade.
Here we are going to cover manual steps that are required for smooth transition from technology preview to GA.
Updating of Kubernetes, KubeVirt and Containerized Data Imported should be done from N-1 to N release.
The k8s cluster and KubeVirt components must be in scope of our supported versions. You can update k8s version by following the official guide. Or if you provisioned the cluster over KubeOne please follow the update procedure.
Next you can update KubeVirt control plane and Containerized Data Importer by executing:
export RELEASE=<SUPPORTED_RELEASE>
kubectl apply -f https://github.com/kubevirt/kubevirt/releases/download/${RELEASE}/kubevirt-operator.yaml
export RELEASE=<SUPPORTED_RELEASE>
kubectl apply -f https://github.com/kubevirt/containerized-data-importer/releases/download/${RELEASE}/cdi-operator.yaml
Refer to the KubeVirt control update documentation for further details about the update.
It is highly recommended to first test the upgrade on a staging environment. It can happen that hosts where KubeVirt runs might need reconfiguration or packages update.
If user clusters have working Load Balancers those can be unreachable after Machine Deployment rotation due to LB selector key change. After this step, it is required to follow the Update LoadBalancer selectors guide to fix it.
Right after the upgrade it is required to update Machine Deployment object (this will trigger Machines rotation). You can do it from the KKP Dashboard which is recommended approach as you will be guided with the possible options.
The alternative is to directly change Machine Deployment objects over kubectl apply
.
Take a look into the example to see what has been changed.
This step is only required if Load Balancers on user clusters have been created, and the previous Update Machine Deployment guide has been accomplished.
From v0.3.0 KubeVirt Cloud Controller Manager changed Load Balancer selector. You have to edit Load Balancer(s) in
user cluster namespace on KubeVirt infrastructure and change its selector from
cloud.kubevirt.io/<id>: <val>
to
cluster.x-k8s.io/cluster-name: <cluster-id>
.
For instance the selector of LB that exists in KubeVirt infrastructure cluster in the cluster-xyz
namespace,
would have to be replaced to
cluster.x-k8s.io/cluster-name: xyz
