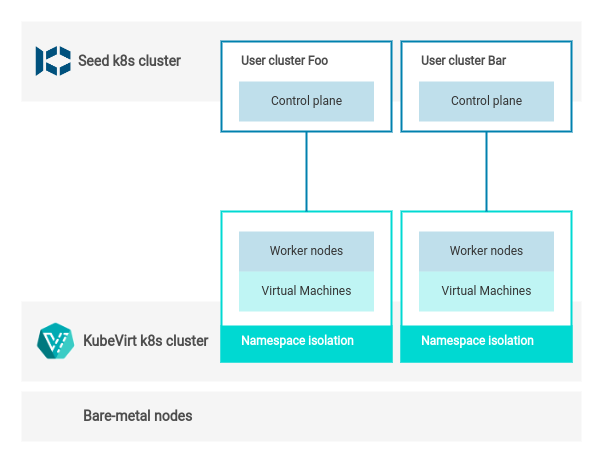

KubeVirt Cloud Provider Architecture

Installation And Configuration


A Kubernetes cluster (KubeVirt infrastructure cluster), which consists of nodes that have a hardware virtualization support with at least:

  • 2 CPUs
  • 4GB of RAM
  • 30GB of storage.

The cluster version must be in the scope of supported KKP Kubernetes clusters and it must have the following components installed:

  • KubeVirt >= 0.57 which supports the selected Kubernetes version.
  • Containerized Data Importer which supports the selected KubeVirt and Kubernetes versions.

We recommend to install the latest stable releases of both projects.

The setup has been successfully tested with:

  • CRI: containerd
  • CNI: Canal

Other CRIs and CNIs should work too. However, they were not tested, so it is possible to discover issues.

To achieve the best possible performance it is recommended to run the setup on bare metal hosts with a hardware virtualization support. Additionally, make sure that your nodes have appropriate Qemu and KVM packages installed.

Kubernetes And KubeVirt Installation

We provide KubeOne, which can be used to set up a highly-available Kubernetes cluster on bare metal. Refer to the KubeOne documentation for details on how to use it.

Follow KubeVirt and Containerized Data Importer documentation to find out how to install them and learn about their requirements.

We require the following KubeVirt configuration:

apiVersion: kubevirt.io/v1
kind: KubeVirt
  name: kubevirt
  namespace: kubevirt
      - ExperimentalIgnitionSupport
      - DataVolumes
      - LiveMigration
      - CPUManager
      - CPUNodeDiscovery
      - Sidecar
      - Snapshot
      - HotplugVolumes

It is not required to have any specific Containerized Data Importer configuration as long the main storage is not local disks. Otherwise, CDI must be configured with HonorWaitForFirstConsumer feature gate.

apiVersion: cdi.kubevirt.io/v1beta1
kind: CDI
  name: cdi
    - HonorWaitForFirstConsumer

Refer to this document to learn more about how KubeVirt handles local disks storage.

Currently, it is not recommended to use local or any topology constrained storage due to the issue with kubevirt csi driver

Configure KKP With KubeVirt

Once you have Kubernetes with all needed components, the last thing is to configure KubeVirt datacenter on seed.

We allow to configure:

  • customNetworkPolicies - Network policies that are deployed on the infrastructure cluster (where VMs run).
  • dnsConfig and dnsPolicy - DNS config and policy which are set up on a guest. Defaults to ClusterFirst.
  • images - Images for Virtual Machines that are selectable from KKP dashboard.
  • infraStorageClasses - Storage classes that are initialized on user clusters that end users can work with.
    • Pass names of KubeVirt storage classes that can be used from user clusters.

Refer to this document for more details and configuration example.

By default, each user cluster is deployed with the cluster-isolation Network Policy that allows network communication only inside the cluster. You should use customNetworkPolicies to customize the network rules to your needs. Remember that new rules will affect all user clusters.

Setup Monitoring

Install prometheus-operator on the KubeVirt cluster. Then update KubeVirt configuration with the following spec:

apiVersion: kubevirt.io/v1
kind: KubeVirt
  name: kubevirt
  namespace: kubevirt
  monitorNamespace: "<<PROMETHEUS_NAMESPACE>>"

For more details please refer to this document.

After completing the above setup, you can import the KubeVirt Dashboard to Grafana. Follow the official Grafana documentation to learn how to import the dashboard.

Advanced Settings

Virtual Machine Templating

We provide a Virtual Machine templating functionality over Instance Types and Preferences.

Instance Types and Preferences

You can use our standard

Instance Types:

  • standard-2 - 2 CPUs, 8Gi RAM
  • standard-4 - 4 CPUs, 16Gi RAM
  • standard-8 - 8 CPUs, 32Gi RAM

and Preferences (which are optional):

  • sockets-advantage - cpu guest topology where number of cpus is equal to number of sockets

or you can just simply adjust the amount of CPUs and RAM of our default template according to your needs.

Additionally, if our templates will not fulfill your requirements then a KubeVirt cluster admin can create customized instance types and preferences that users can select later. Read how to add new Instance Types and Preferences.

Virtual Machine Scheduling

KubeVirt can take advantage of Kubernetes inner features to provide an advanced scheduling mechanism to virtual machines (VMs):

Since KubeVirt VMs are wrapped in pods, the Kubernetes scheduling rules applicable to pods are completely valid for KubeVirt VMs. This allows you to restrict KubeVirt VMs (see architecture) to run only on specific KubeVirt infra nodes.

Note that topology spread constraints and node affinity presets are applicable to KubeVirt infra nodes.

Default Scheduling Behavior

Each Virtual Machine you create has default topology spread constraints applied:

maxSkew: 1
topologyKey: kubernetes.io/hostname
whenUnsatisfiable: ScheduleAnyway

this allows us to spread Virtual Machine equally across a cluster.

Customize Scheduling Behavior

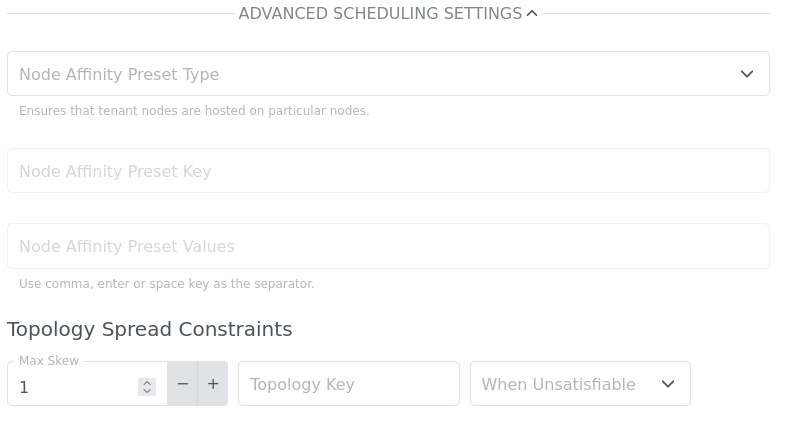

It is possible to change the default behaviour and create your own topology combined with Node Affinity Presets. You can do it by expanding ADVANCED SCHEDULING SETTINGS on the initial nodes dashboard page.

Instance Types and Preferences

  • Node Affinity Preset Key refers to the key of KubeVirt infra node labels.
  • Node Affinity Preset Values refers to the values of KubeVirt infra node labels.

Node Affinity Preset type can be hard or soft and refers to the same notion of Pod affinity/anti-affinity types:

  • hard: the scheduler can’t schedule the VM unless the rule is met.
  • soft: the scheduler tries to find a node that meets the rule. If a matching node is not available, the scheduler still schedules the VM.

It gives you a possibility to create your own unique scheduling options that override ours. For instance, you could avoid creation of Virtual Machines on database nodes etc.

Note that you can specify a Node Affinity Preset Key and leave Node Affinity Preset Values empty to constrain the VM to run on KubeVirt infra nodes that have a specific label key (whatever the values are).

Frequently Asked Questions

How can I add a new Virtual Machine template?

You can do it by simply creating a new VirtualMachineClusterInstancetype and VirtualMachineClusterPreference on the KubeVirt infrastructure cluster. Those resources are cluster scoped meaning all users will see them.

Refer to the InstanceTypes and Preferences guide for details on how to use it.

How can I safely drain a bare metal node?

You can do it as with every standard k8s cluster, over kubectl drain command.

We implemented a mechanism that will allow you to safely drain a bare-metal node without losing the VM workload. After running a drain command the VMs running on the node along with their workload will be evicted to different nodes.

More details on the eviction implementation can be found here.

Remember, the responsibility of making sure that the workload can be evicted lies on you. Invalid PodDisruptionBudget configuration may block the eviction.

Additionally consider skipEvictionAfter parameter of Machine Controller that sets the timeout for workload eviction. Once exceeded, the VMs will simply be deleted.

I discovered a DNS collision on my cluster. Why does it happen?

Usually it happens when both infrastructure and user clusters points to the same address of NodeLocal DNS Cache servers, even if they have separate server instances running.

Let us imagine that:

  • On the infrastructure cluster there is a running NodeLocal DNS Cache under address.
  • Then we create a new user cluster, start a few Virtual Machines that finally gives a fully functional k8s cluster that runs on another k8s cluster.
  • Next we observe that on the user cluster there is another NodeLocal DNS Cache that has the same address.
  • Since Virtual Machine can have access to subnets on the infra and user clusters (depends on your network policy rules) having the same address of DNS cache leads to conflict.

One way to prevent that situation is to set a dnsPolicy and dnsConfig rules that Virtual Machines do not copy DNS configuration from their pods and points to different addresses.

Follow Configure KKP With KubeVirt to learn how set DNS config correctly.

I created a load balancer service on a user cluster but services outside cannot reach it.

In most cases it is due to cluster-isolation network policy that is deployed as default on each user cluster. It only allows in-cluster communication. You should adjust network rules to your needs by adding customNetworkPolicies configuration).

For instance, if you need to allow all ingress traffic from CIDR to each user cluster then you would have to set:

  - name: allow-external-traffic
        - Ingress
        - from:
          - ipBlock:

Known Issues

Support of Block Volume Mode

Currently, the KubeVirt CSI driver does not support volumes with block mode therefore you should avoid using this option to mount a PVC to a user cluster.

Topology Constrained Storage

Due to the issue, it is not recommended to use local or any storage that is constrained by some topology. You can find more details in the linked issue.

Migration from KKP 2.21

Kubermatic Virtualization graduates to GA from KKP 2.22! On the way, we have changed many things that improved our implementation of KubeVirt Cloud Provider.

Just to highlight the most important:

  • Safe Virtual Machine workload eviction has been implemented.
  • Virtual Machine templating is based on InstanceTypes and Preferences.
  • KubeVirt CSI controller has been moved to control plane of a user cluster.
  • Users can influence scheduling of VMs over topology spread constraints and node affinity presets.
  • KubeVirt Cloud Controller Manager has been improved and optimized.
  • Cluster admin can define the list of supported OS images and initialized storage classes.

Additionally, we removed some features that didn’t leave technology preview stage, those are:

  • Custom Local Disks
  • Secondary Disks

The official upgrade procedure will not break clusters that already exist, however, scaling cluster nodes will not lead to expected results. We require to update Machine Deployment objects and rotate machines right after the upgrade.

Required Migration Steps

Here we are going to cover manual steps that are required for smooth transition from technology preview to GA.

Upgrade of KubeVirt Infrastructure Cluster

Updating of Kubernetes, KubeVirt and Containerized Data Imported should be done from N-1 to N release.

The k8s cluster and KubeVirt components must be in scope of our supported versions. You can update k8s version by following the official guide. Or if you provisioned the cluster over KubeOne please follow the update procedure.

Next you can update KubeVirt control plane and Containerized Data Importer by executing:

kubectl apply -f https://github.com/kubevirt/kubevirt/releases/download/${RELEASE}/kubevirt-operator.yaml
kubectl apply -f https://github.com/kubevirt/containerized-data-importer/releases/download/${RELEASE}/cdi-operator.yaml

Refer to the KubeVirt control update documentation for further details about the update.

It is highly recommended to first test the upgrade on a staging environment. It can happen that hosts where KubeVirt runs might need reconfiguration or packages update.

Update Machine Deployment

If user clusters have working Load Balancers those can be unreachable after Machine Deployment rotation due to LB selector key change. After this step, it is required to follow the Update LoadBalancer selectors guide to fix it.

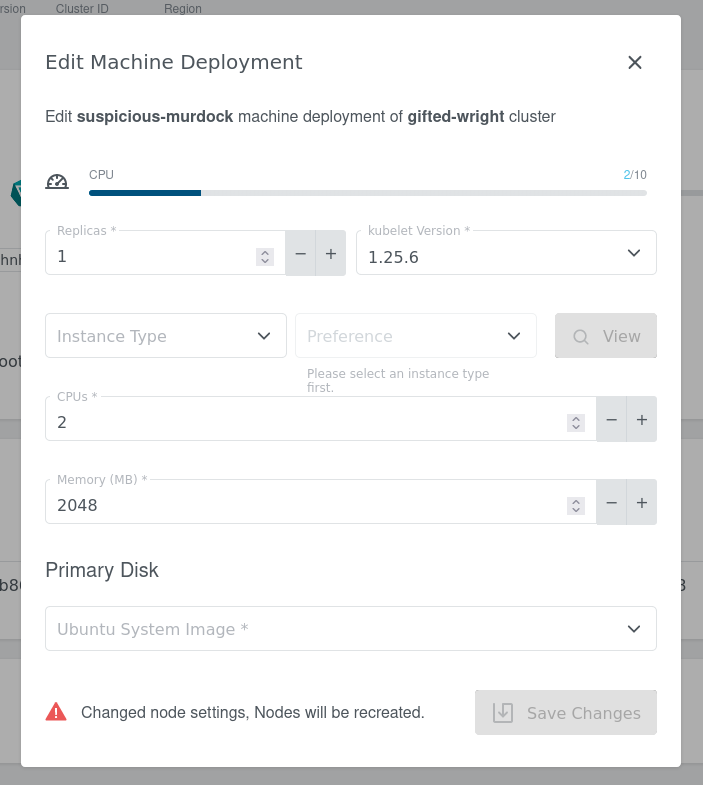

Right after the upgrade it is required to update Machine Deployment object (this will trigger Machines rotation). You can do it from the KKP Dashboard which is recommended approach as you will be guided with the possible options.

Machine Deployment Edit

The alternative is to directly change Machine Deployment objects over kubectl apply. Take a look into the example to see what has been changed.

Update LoadBalancer Selectors

This step is only required if Load Balancers on user clusters have been created, and the previous Update Machine Deployment guide has been accomplished.

From v0.3.0 KubeVirt Cloud Controller Manager changed Load Balancer selector. You have to edit Load Balancer(s) in user cluster namespace on KubeVirt infrastructure and change its selector from cloud.kubevirt.io/<id>: <val> to cluster.x-k8s.io/cluster-name: <cluster-id>.

For instance the selector of LB that exists in KubeVirt infrastructure cluster in the cluster-xyz namespace, would have to be replaced to cluster.x-k8s.io/cluster-name: xyz
