Cluster Access

This manual explains how to configure Role-Based Access Control (a.k.a RBAC) on user clusters.

Concepts

You can grant permission to 3 types of subjects:

  • user: end user identified by their email
  • group: named collection of users
  • service account: a Kubernetes service account that authenticates a process (e.g. Continuous integration)

You can either grant permission on the whole cluster or on specific namespaces by creating bindings.

The RBAC view is organized by subjects. You can choose the subject thanks to the dropbox selector and grant or remove permission by adding or removing binding. list user rbac list group rbac list service account rbac

Role-Based Access Control Predefined Roles

KKP provides predefined roles and cluster roles to help implement granular permissions for specific resources and simplify access control across the user cluster. All of the default roles and cluster roles are labeled with component=userClusterRole.

Cluster Level

Default ClusterRoleDescription
cluster-adminAllows admin access. Allows read/write access to most resources in a namespace, including creating roles and role bindings within the namespace. This role does not allow write access to resource quota or to the namespace itself.
editAllows read/write access to most objects in a namespace. This role does not allow viewing or modifying roles or role bindings. However, this role allows accessing secrets and running pods as any service account in the namespace
viewAllows read-only access to see most objects in a namespace. It does not allow viewing roles or role bindings.
list-namespacesAllows to list namespaces

Namespace Level

Default RoleDescription
namespace-adminAllows admin access. Allows read/write access to most resources in a namespace.
namespace-editorAllows read/write access to most objects in a namespace. This role allows accessing secrets and running pods as any service account in the namespace
namespace-viewerAllows read-only access to see most objects in a namespace.

Manage User Permissions

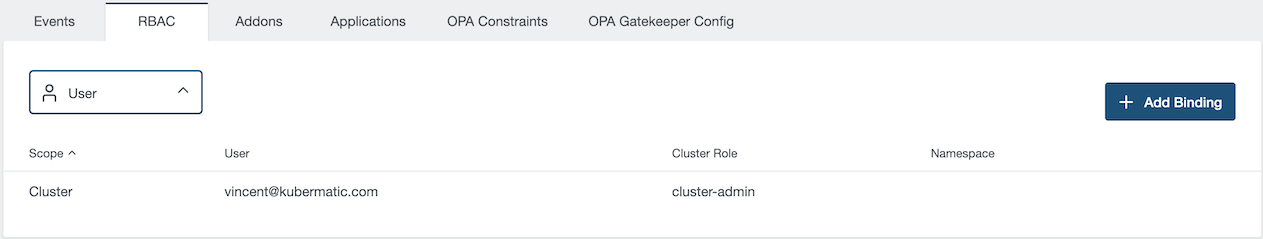

You can grant permissions to a group by clicking on add Bindings. Grant permission to a user

The cluster owner is automatically connected to the cluster-admin cluster role.

Manage Group Permissions

Group are named collection of users. You can grant permission to a group by clicking on add Bindings. Grant permission to a group

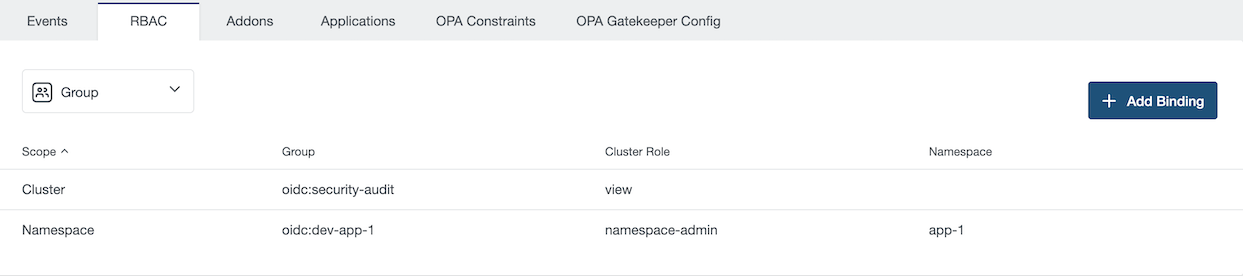

In this example, we grant the role view on the cluster to the OIDC group security-audit

If you want to bind an OIDC group, you must prefix the group’s name with oidc:
The kubernetes API Server automatically adds this prefix to prevent conflicts with other authentication strategies

Manage Service Account Permissions

Service accounts are designed to authenticate processes like Continuous integration (a.k.a CI).
In this example, we will:

  • create a Service account
  • grant permission to 2 namespaces
  • download the associated kubeconfig that can be used to deploy workload into these namespaces.

Create a Service Account

Service accounts are namespaced objects. So you must choose in which namespace you will create it. The namespace where the service account live is not related to the granted permissions.
To create a service account, click on Add Service Account create service account in user cluster

In this example, we create a service account named ci into kube-system namespace.

Grant Permissions to Service Account

You can grant permission by clicking on Add binding Grant permission to service account

In this example, we grant the permission namespace-admin on the namespace app-1 to service account CI of the namespace kube-system.

You can see and remove binding by unfolding the service account.

Download Service Account kubeconfig

Finally, you can download the service account’s kubeconfig by clicking on the download icon. download service account’s kubeconfig

You can edit service account’s permissions at any time. There is no need to download the kubeconfig again.

Delete a Service Account

You can delete a service account by clicking on the trash icon. Deleting a service account also deletes all associated binding.

Debugging

The best way to debug authorizing problems is to enable audit logging and checks audit logs. For example, check the user belongs to the expected groups (see .user.groups)
