Datacenters

Datacenter concept

Datacenters are an integral part of Kubermatic. Depending on the cloud provider, they define a zone that has network connection for all machines, for example for hyperscalers it would be an availability zone. Datacenters, as Kubermatic resources, are a part of the Seed resource, and all user clusters of that datacenter are handled by its respected Seed Cluster.

The datacenter structure contains the following fields:

  • country – Country code of the DC location. It’s purely cosmetic and reflected by a flag shown in the UI.
  • location – Optional: Detailed location of the cluster, like “Hamburg” or “Datacenter 7”. For informational purposes in the Kubermatic dashboard only.
  • nodeSettings – Node holds node-specific settings, like e.g. HTTP proxy, Docker registries and the like. Proxy settings are inherited from the seed if not specified here.
  • spec one of:
    • digitalocean – Cloud-specific configuration for DigitalOcean DCs.
    • bringyourown – Specifies a DC that doesn’t use any cloud-provider-specific features
    • aws – Cloud-specific configuration for AWS DCs.
    • azure – Cloud-specific configuration for Azure DCs.
    • openstack – Cloud-specific configuration for Openstack DCs.
    • packet – Cloud-specific configuration for Packet DCs.
    • gcp – Cloud-specific configuration for GCP DCs.
    • hetzner – Cloud-specific configuration for Hetzner DCs.
    • vsphere – Cloud-specific configuration for vSphere DCs.
    • kubevirt – Cloud-specific configuration for KubeVirt DCs.
    • alibaba– Cloud-specific configuration for Alibaba DCs.
    • anexia – Cloud-specific configuration for Anexia DCs.
    • and
    • enforceAuditLogging – enforces audit logging on every cluster within the DC, ignoring cluster-specific settings.
    • enforcePodSecurityPolicy – enforces pod security policy plugin on every clusters within the DC, ignoring cluster-specific settings
    • requiredEmailDomain – (deprecated since v2.13) Optional string. Limits the availability of the datacenter to users with email addresses in the given domain.
    • requiredEmailDomains – (since v2.13) Optional string array. Limits the availability of the datacenter to users with email addresses in the given domains.

Example specs for different providers:


  #==================================
  #=========== OpenStack ============
  #==================================
  # The keys for non-seeds can be freely chosen.
  openstack-zone-1:
    # The location is shown in the KKP dashboard
    # and should be descriptive within each provider (e.g.
    # for AWS a good location name would be "US East-1").
    location: Datacenter 2

    # The country is also used by the dashboard to show
    # the corresponding flag and make it easier to select
    # the proper region.
    country: DE

    # Configure cloud provider-specific further information.
    spec:
      openstack:
        # Authentication endpoint for Openstack, must be v3
        auth_url: https://our-openstack-api/v3
        availability_zone: zone-1
        region: "region-1"
        # This DNS server will be set when KKP creates a network
        dns_servers:
        - "8.8.8.8"
        - "8.8.4.4"
        # Those are default images for nodes which will be shown in the Dashboard.
        images:
          ubuntu: "Ubuntu 18.04"
          centos: "CentOS 7"
          coreos: "CoreOS"
        # Enforce the creation of floating IP's for new nodes
        # Available since v2.9.0
        enforce_floating_ip: false
        # Gets mapped to the "manage-security-groups" setting in the cloud config.
        # See https://kubernetes.io/docs/concepts/cluster-administration/cloud-providers/#load-balancer
        # Defaults to true
        # Available since v2.9.2
        manage_security_groups: true

  #==================================
  #========== Digitalocean ==========
  #==================================
  do-ams2:
    location: Amsterdam
    country: NL
    spec:
      digitalocean:
        # Digitalocean region for the nodes
        region: ams2

  #==================================
  #============== AWS ===============
  #==================================
  aws-us-east-1a:
    location: US East (N. Virginia)
    country: US
    spec:
      aws:
        # Set default AMI ID's(HVM) for this region
        # Available since v2.10.0
        images:
          # Must be Ubuntu 18.04, defaults to https://aws.amazon.com/marketplace/pp/B07CQ33QKV
          ubuntu: "ami-07e101c2aebc37691"
          # Must be CentOS 7, defaults to https://aws.amazon.com/marketplace/pp/B00O7WM7QW
          centos: "ami-02eac2c0129f6376b"
        # Region to use for nodes
        region: us-east-1

  #==================================
  #============ Hetzner =============
  #==================================
  hetzner-fsn1:
    location: Falkenstein 1 DC 8
    country: DE
    spec:
      hetzner:
        datacenter: fsn1-dc8

  #==================================
  #============ vSphere =============
  #==================================
  vsphere-office1:
    location: Office
    country: DE
    spec:
      vsphere:
        endpoint: "https://some-vcenter.com"
        datacenter: "Datacenter"
        datastore: "example-datastore"
        cluster: "example-cluster"
        allow_insecure: true
        root_path: "/Datacenter/vm/foo"
        templates:
          ubuntu: "ubuntu-template"
          centos: "centos-template"
          coreos: "coreos-template"
      requiredEmailDomains:
      - "kubermatic.com"
      - "example.com"

  #==================================
  #============= Azure ==============
  #==================================
  azure-westeurope:
    location: "Azure West europe"
    country: NL
    spec:
      azure:
        location: "westeurope"

  #==================================
  #============= GCP ================
  #==================================
  gcp-westeurope:
    location: "Europe West (Germany)"
    country: DE
    spec:
      gcp:
        region: europe-west3
        zone_suffixes:
        - c

  #==================================
  #============= Packet =============
  #==================================
  packet-ams1:
    location: "Packet AMS1 (Amsterdam)"
    country: NL
    spec:
      packet:
        facilities:
        - ams1

  #==================================
  #============= Alibaba ============
  #==================================
  alibaba-eu1:
    location: "Alibaba N2"
    country: NL
    spec:
      alibaba:
        region: "eu1"

  #==================================
  #============= Anexia ============
  #==================================
  anexia-ams1:
    location: "Anexia NL"
    country: NL
    spec:
      anexia:
        location: "ams"

Datacenter management - CE

Datacenters are a part of the Seed resource and need to be managed by an Kubermatic operator on the Seed object.

Datacenter management - EE

The EE offers 2 different ways to manage the datacenters. One way is using the dynamic datacenters feature through which admins can manage Datacenters on Seeds through API/UI. This is the preferred and recommended way. The other way is through the datacenter.yaml file which needs to be provided to the Kubermatic API server.

Dynamic Datacenters

The dynamic datacenters are activated by setting the dynamic-datacenters flag to true on the Kubermatic API server.

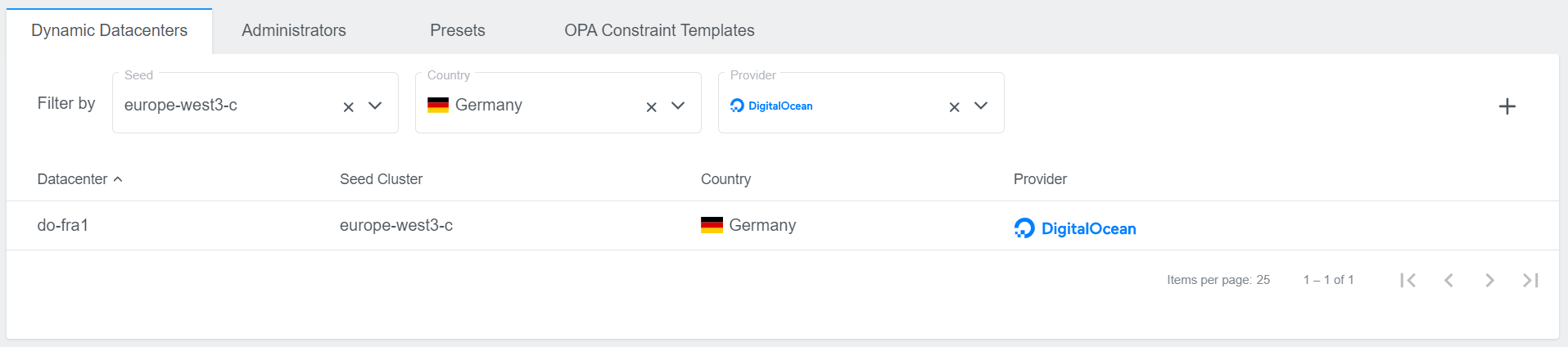

Admins can manage the datacenters through the admin panel: Dynamic Datacenters

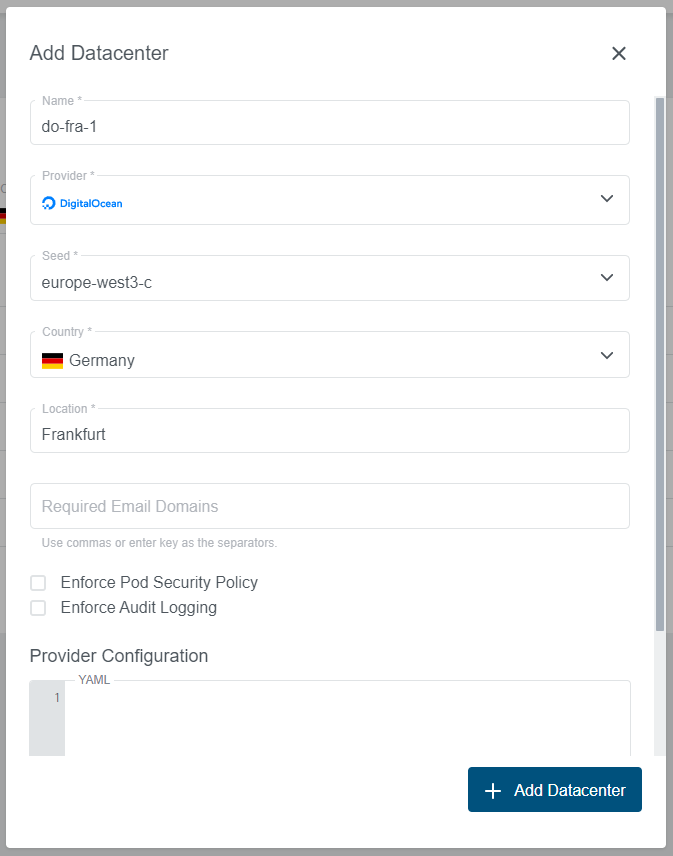

To create a new Datacenter, press the + icon and fill out the form: Add Datacenter

and add the provider spec based on the Datacenter provider: Add Datacenter Provider

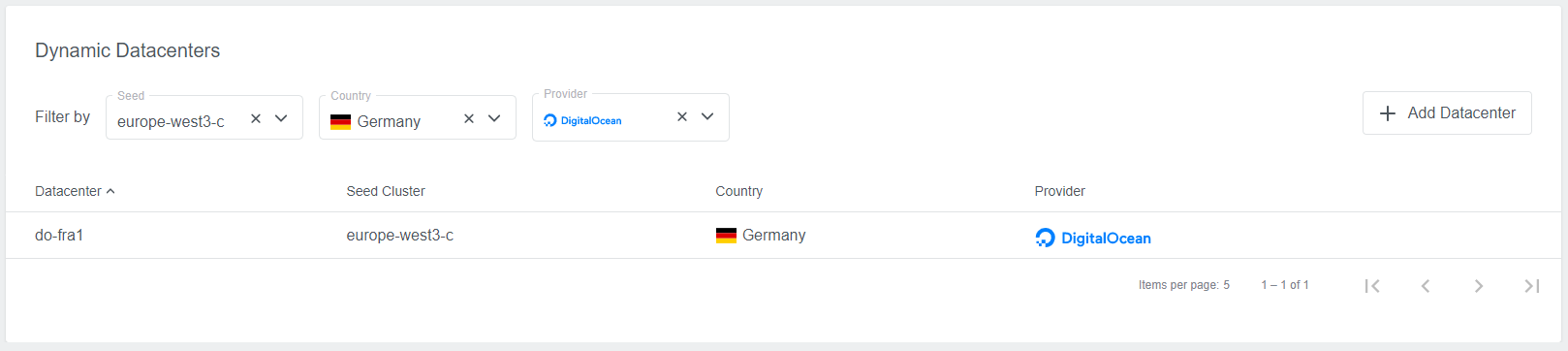

The added datacenter can easily be found with the filtering functions: Find Datacenter

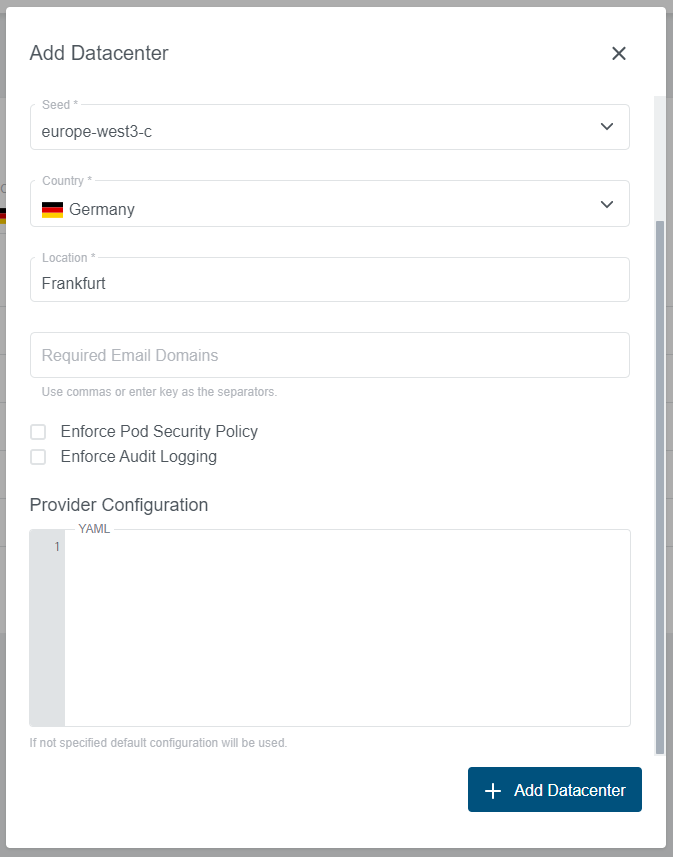

It is also possible to edit the existing Datacenter, everything can be changed except the seed: Edit Datacenter NOTICE: editing does not affect existing user clusters that were created using this datacenter

Edit Datacenter

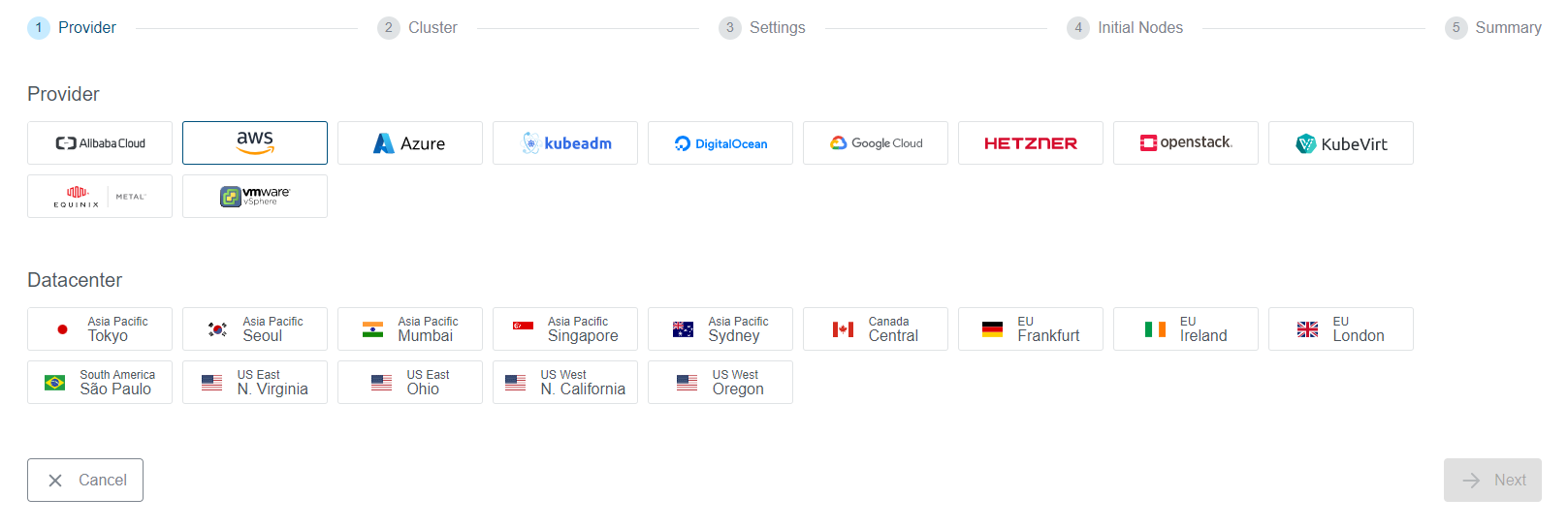

When we are satisfied with our new datacenter, we can use it in the Cluster creation wizard: Use Datacenter

To delete the datacenter, just click on the trash icon in the admin panel: Delete Datacenter NOTICE: deleting does not affect existing user clusters that were created using this datacenter

Management through static files - datacenter.yaml

This option is activated by setting the datacenters flag on the Kubermatic API server and providing the path to the datacenters.yaml file.

In this option all the Seeds and datacenters used in KKP will be taken from this file, Seed objects in the cluster won’t have any effect.

Example file:

datacenters:
  #==================================
  #============== Seeds =============
  #==================================

  # The name needs to match the a context in the kubeconfig given to the API
  seed-1:
    # Defines this datacenter as a seed
    is_seed: true
    # Though not used, you must configured a provider spec even for seeds.
    # The bringyourown provider is a good placeholder, as it requires no
    # further configuration.
    spec:
      bringyourown: ~

  seed-2:
    is_seed: true
    spec:
      bringyourown: ~

  #==================================
  #======= Node Datacenters =========
  #==================================

  #==================================
  #=========== OpenStack ============
  #==================================
  # The keys for non-seeds can be freely chosen.
  openstack-zone-1:
    # The location is shown in the KKP dashboard
    # and should be descriptive within each provider (e.g.
    # for AWS a good location name would be "US East-1").
    location: Datacenter 2

    # The country is also used by the dashboard to show
    # the corresponding flag and make it easier to select
    # the proper region.
    country: DE

    # The name of the seed to use when creating clusters in
    # this datacenter; when someone creates a cluster with
    # nodes in this dc, the master components will live in seed-1.
    seed: seed-1

    # Configure cloud provider-specific further information.
    spec:
      openstack:
        # Authentication endpoint for Openstack, must be v3
        auth_url: https://our-openstack-api/v3
        availability_zone: zone-1
        region: "region-1"
        # This DNS server will be set when KKP creates a network
        dns_servers:
        - "8.8.8.8"
        - "8.8.4.4"
        # Those are default images for nodes which will be shown in the Dashboard.
        images:
          ubuntu: "Ubuntu 18.04"
          centos: "CentOS 7"
          coreos: "CoreOS"
        # Enforce the creation of floating IP's for new nodes
        # Available since v2.9.0
        enforce_floating_ip: false
        # Gets mapped to the "manage-security-groups" setting in the cloud config.
        # See https://kubernetes.io/docs/concepts/cluster-administration/cloud-providers/#load-balancer
        # Defaults to true
        # Available since v2.9.2
        manage_security_groups: true

  #==================================
  #========== Digitalocean ==========
  #==================================
  do-ams2:
    location: Amsterdam
    country: NL
    seed: seed-1
    spec:
      digitalocean:
        # Digitalocean region for the nodes
        region: ams2
