OPA Constraint Templates

Constraint Template View

Constraint Templates allow you to declare new Constraints. They are intended to work as a schema for Constraint parameters and enforce their behavior. The Constraint Template view on the bottom of the Admin Panel allows adding, editing and deleting Constraint Templates.

Adding Constraint Templates

Constraint Templates can be added after clicking on the + icon in the top right corner of the view.

Constraint Template Add Dialog

Spec is the only field that needs to be filled with a yaml. By clicking on Add a new Constraint Template will be created.

Following example requires all labels that are described by the Constraint to be present:

crd:
  spec:
    names:
      kind: K8sRequiredLabels
    validation:
      # Schema for the `parameters` field
      openAPIV3Schema:
        properties:
          labels:
            type: array
            items: string
targets:
  - target: admission.k8s.gatekeeper.sh
    rego: |
      package k8srequiredlabels

      violation[{"msg": msg, "details": {"missing_labels": missing}}] {
        provided := {label | input.review.object.metadata.labels[label]}
        required := {label | label := input.parameters.labels[_]}
        missing := required - provided
        count(missing) > 0
        msg := sprintf("you must provide labels: %v", [missing])
      }

Editing Constraint Templates

Constraint Templates can be edited after clicking on the pencil icon that appears when hovering over one of the rows. The form is identical to the one from creation.

Deleting Constraint Templates

Constraint Templates can be deleted after clicking on the trash icon that appears when hovering over one of the rows. Please note, that the deletion of a Constraint Template will also delete all Constraints that are assigned to it.

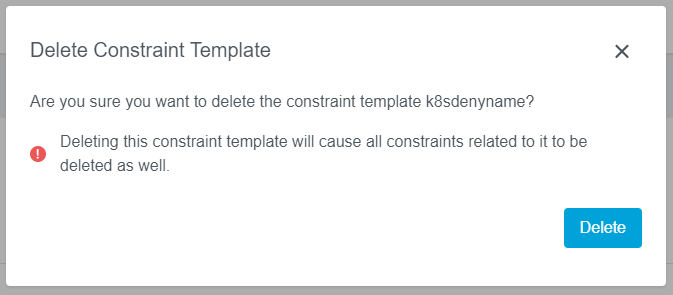

Constraint Template Delete Dialog
