Integrated User Cluster Backup

With KKP version 2.18, the Community Edition provided users with the ability to perform and manage automated backups and restores for the user clusters’ etcd rings. With this automated backup feature, cluster and project administrators are able to fully restore a user cluster to a previous state.

KKP 2.25 introduces a new backup feature for Enterprise customers, by integrating Velero backup as a backup solution for user clusters. In the 2.25 release, the integration is experimental and expected to be extended in the future.

With this integration, KKP allows project owners/editors to manage backups for specific workloads, namespaces or labels. It also supports the backup and restore of Persistent Volumes content.

For this experimental release, KKP supports the default AWS provider for s3 compatible storage backends, and Velero’s File System Backup for PersistentVolume backups. This allows the feature to be used with minimal infrastructure requirements and cover a wide range of use cases.

KKP Velero integration provides project owners/editors with the ability to centrally manage user cluster backups from a simple interface. The project owner can define as many Cluster Backup Storage Locations as needed, and can assign them to user clusters. Project owners/editors can also define Backup Schedules per cluster, perform on-time backups and restores.

Using Integrated User Cluster Backup

Cluster backup is disabled by default as an experimental feature. To use it, the KKP administrator needs to enable it the admin panel.

Once UI dashboard options are available, the project owner must defined at least one Cluster Backup Storage Location.

Cluster Backup Storage Locations

The KKP UI allows project owners/editors to manage Cluster Backup Storage Locations that can be used for any clusters in the same project.

The ClusterBackupStorageLocation resource is a simple wrapper for Velero’s Backup Storage Location API type. Both types share the same spec.

When Custer Backup is enabled for a user cluster, KKP will deploy a managed instance of Velero on the user cluster, and propagate the required Velero BackupStorageLocation to the user cluster, with a special prefix to avoid collisions with other user clusters that could be using the same storage.

For simplicity, the KKP UI requires the minimal required values to enabled a working Velero Backup Storage Location. If further parameters are needed, they can be added by editing the ClusterBackupStorageLocation resources on the Seed cluster:

$ kubectl edit -n kubermatic cbsl test-cbsl-1

Once a CBSL is created through the UI, the CBSL resources will be created in the kubermatic namespace. KKP will check if the storage location available or not and update the CBSL resource status.

Enabling Backup for User Clusters

Cluster Backup can be used for existing clusters and newly created ones. When creating a new user cluster, you can enable the Cluster Backup option in the cluster creation wizard. Once enabled, you will be required to assign the Backup Storage Location that you have created previously.

For existing clusters, you can edit the cluster to assign the required Cluster Backup Location:

Configuring Backups and Schedules

Using the KKP UI, you can configure one-time backups that run as soon as they are defined, or recurring backup schedules that run at specific intervals.

Using the user cluster Kubernetes API, you can also create these resources using the Velero command line tool. They should show up automatically on the KKP UI once created.

One-time Backups

As with the CBSL, KKP UI allows the user to set the minimal required options to create a backup configuration. Since the backup process is started immediately after creation, it’s not possible to edit it via the Kubernetes API. If you need to customize your backup further, you should use a Schedule.

To configure a new one-time backup, go to the Backups list, select the cluster you would like to create the backup for from the drop-down list, and click Create Cluster Backup.

You can select the Namespaces that you want to include in this backup configuration from the dropdown list. Note that this list of Namespaces is directly fetched from your cluster, so you need to create the Namespaces before configuring the backup.

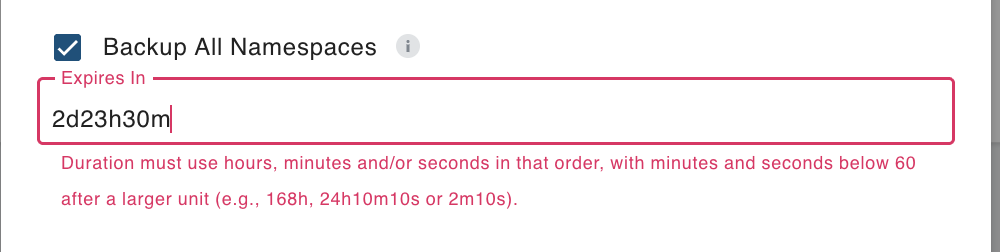

You can define the backup expiration period, which defaults to 30 days and you can also choose if you want to backup Persistent Volumes or not. KKP integration uses Velero’s File System Backup to cover the widest range of use cases. Persistent Volumes backup is enabled by default.

Scheduled Backups

Creating scheduled backups is almost identical to one-time backups. Configuration is available from the “Schedules” submenu, selecting your user cluster and clicking Create Backup Schedule.

For schedules, you also need to add a cron-style schedule to perform the backups.

Downloading Backups

KKP UI provides a convenient button to download backups. You can simply go to the “Backups” list, select a user cluster and a specific backup, then click the “Download Backup” button.

Performing Restores

To restore a specific backup, go to the Backups page, select your cluster and find the required backup. Click on the Restore Backup button.

Velero restores backups by creating a Restore API resource on the clusters and then reconciles it.

Simply, set a name for the restore request, and select the Namespaces that you would like to restore.

You can later track the restore status from the Restore page.

Security Consideration

KKP administrators and project owners/editors should be carefully plan the backup storage strategy of projects and user clusters.

Velero Backup is not currently designed with multi-tenancy in mind. While the upstream project is working on that, it’s not there yet. As a result, Velero is expected to be managed by the cluster administrator who has full access to Velero resources as well as the backup storage backend.

Specifically, this means that the user cluster administrator, or any user provided with cluster-admin privileges on the user cluster, can access the Backup Storage Location credentials and can modify the Velero resources.

If the backup storage is not carefully planned with this in mind, the following scenarios can happen if multiple user clusters are using the same storage backend:

• A cluster admin can access and use the s3 backend credentials stored on the user cluster to access backups and files on the storage backend outside of their designated prefix.

• A cluster admin can modify the user cluster BackupStorageLocation resource and access backups for other clusters.

To avoid these issues, multiple guidelines can be applied individually or combined to achieve proper isolation:

• Create and use a dedicated set of user credentials per user cluster, and use s3 bucket policies (if supported) to limit access to the user cluster specific prefix.
• Use the same backup storage backend, but create a dedicated bucket per user cluster.
• Create a dedicated Cluster Backup Storage Location resource per user cluster.
• Only share Cluster Backup Storage Locations among user clusters managed by the same admin.
