Interface section in the Admin Panel allows user to control various cluster-related settings. They can influence cluster creation, management and cleanup after deletion.

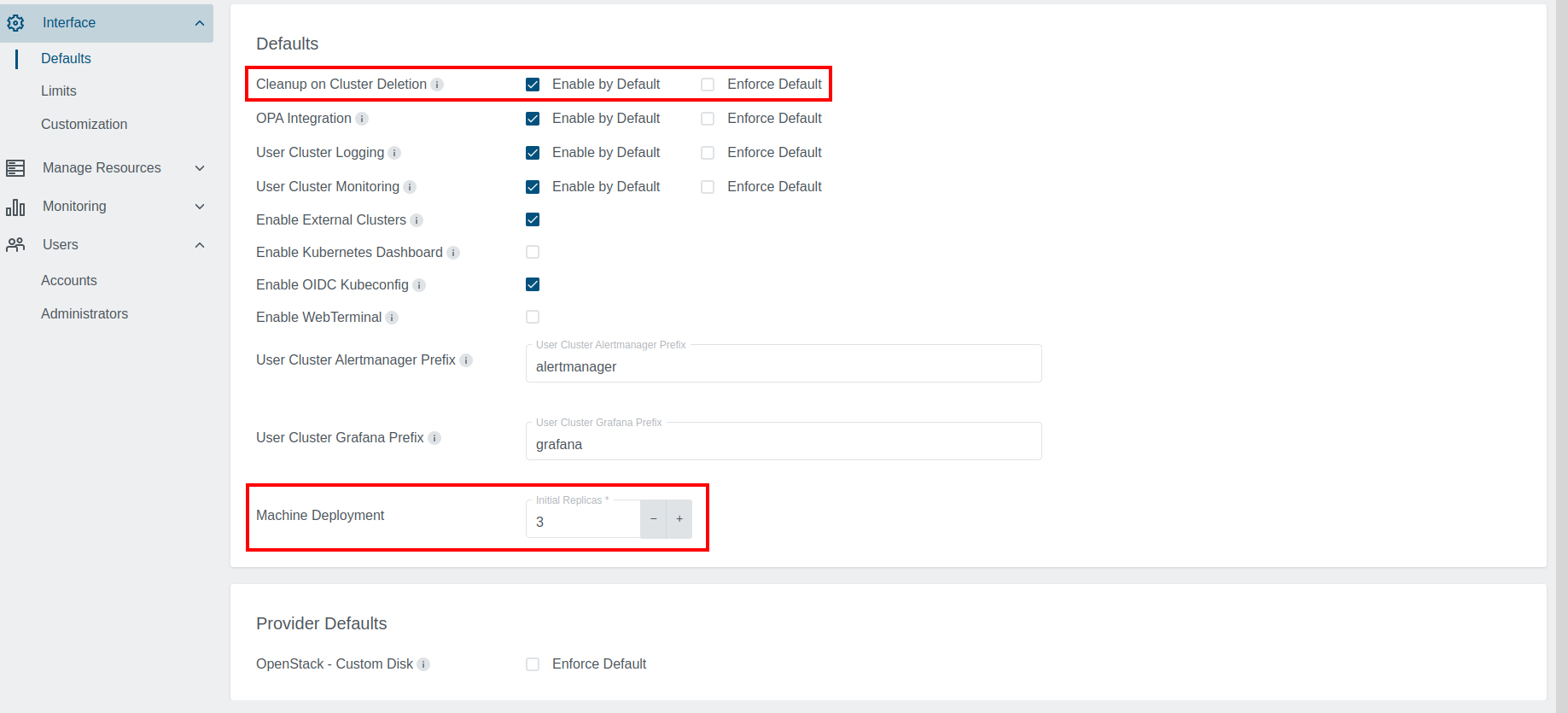

Defaults Cluster Settings
Cleanup on Cluster Deletion
This section controls cluster cleanup settings available inside cluster delete dialog.
Enable by Default
Controls the checkboxes in the dialog. When selected, cleanup checkboxes will be checked by default.
Enforce
Controls the status of checkboxes in the dialog. When selected, cleanup checkboxes will be disabled and user will not be able to check/uncheck them.
Machine Deployment
This section controls the default number of initial Machine Deployment replicas. It can be seen and changed in the cluster creation wizard on the Initial Nodes step and also on the add/edit machine deployment dialog on the cluster details.

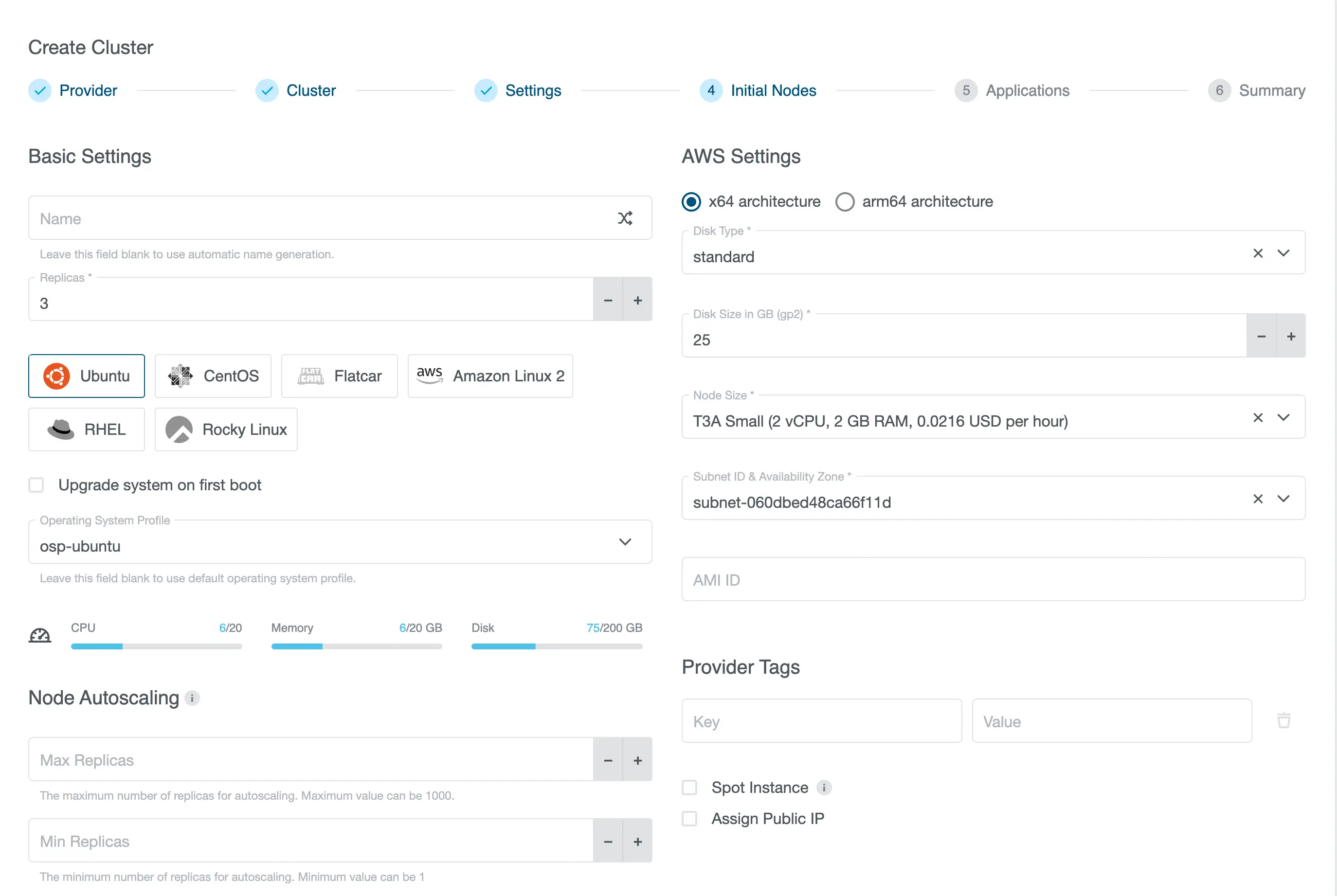

Cluster Creation Wizard - Initial Nodes Step

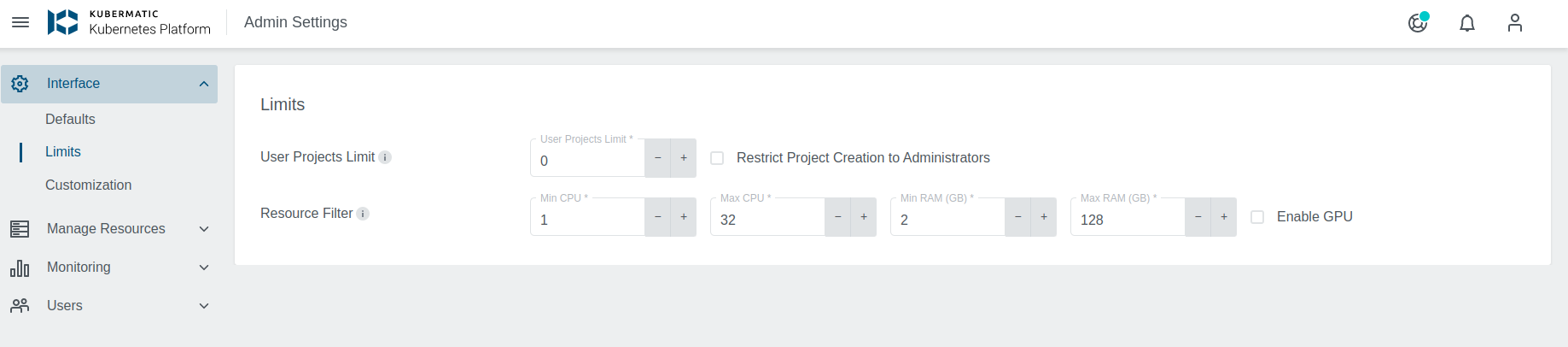

Limits

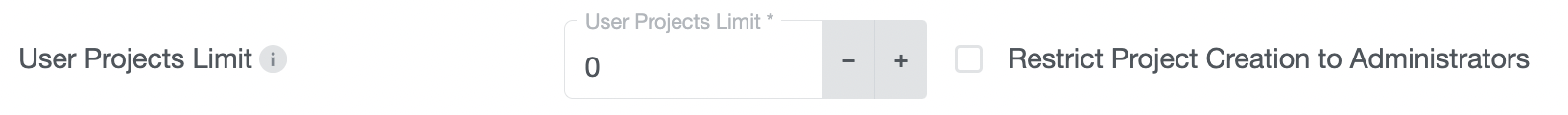

User Projects Limit
This setting controls how project creation will be handled by the Kubermatic. The administrator can control
if regular users should be able to create projects. There is also an option to control maximum number of projects
that regular users will be able to create. The User Projects Limit is controlled on a per-user basis and affects
only non-admin users.

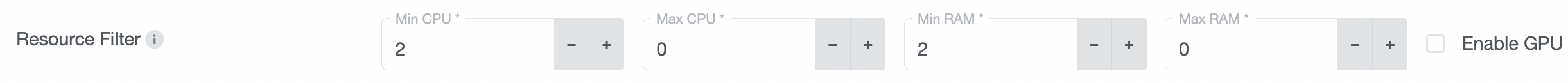

Resource Filter
Resource Filter settings provide an easy way to control the size of machines used to create user clusters. The administrator can also control if selection of instances with GPU should be possible. Every node size that does not match the specified criteria will be filtered out and not displayed to the user.

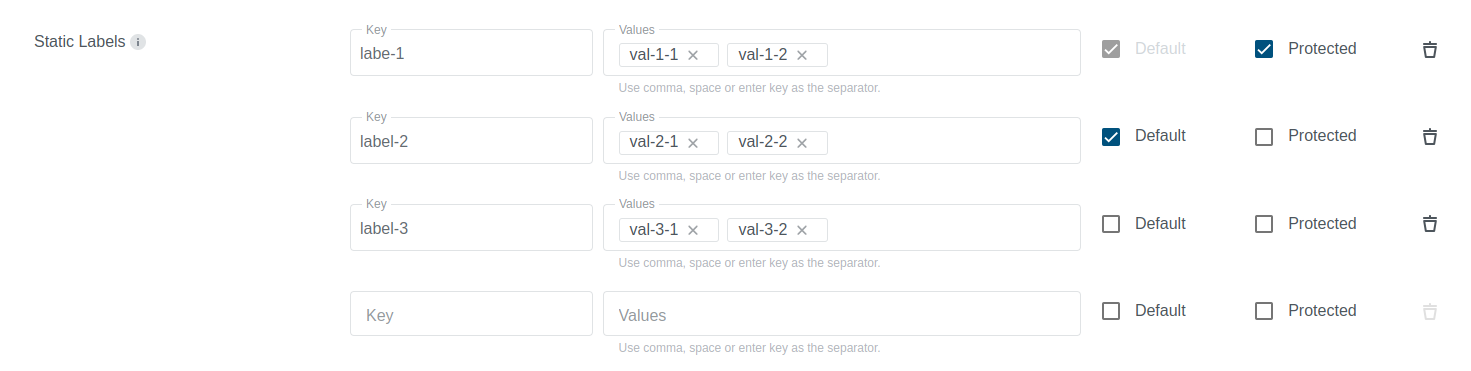

Static Labels
Static labels are a list of labels that the admin can add. Users can select from these labels when creating a cluster during the cluster settings step. The admin can set these labels as either default or protected:
- Default label: This label is automatically added, but the user can delete it.
- Protected label: This label is automatically added and cannot be deleted by the user.

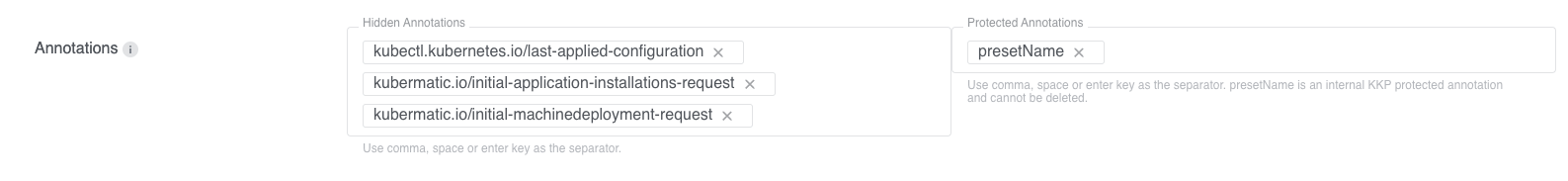

Annotation settings
Annotation settings provide an easy way to control annotations that are shown and managed using KKP dashboard. KKP admins can configure the following:
- Hidden annotations: These annotations will not be shown to the user.
- Protected annotations: These annotations will be shown to the user but they will not be able to modify them.
