VM Migration from vSphere

This guide moves virtual machines from a VMware vCenter into KubeV with a migration plan. KubeV uses Forklift for the transfer. Every step shows the dashboard first, then the equivalent YAML for kubectl.

Running KubeV inside a KDP project? Read Migrating VMs from vSphere instead: the steps are the same, but plans are cold only and the migrated VMs are added to the project.

Before you start

• A cluster installed with kubermatic-virtualization apply. The installer installs Forklift unless migration.enabled: false is set in the configuration.
• A vCenter account for the migration. Grant its rights at the datacenter level and let them propagate: rights on the VMs alone are not enough for Forklift to read the inventory.
• Network access from the cluster nodes to the vCenter on port 443 and to every ESXi host on ports 443 and 902. Disk data is read from the ESXi hosts directly.
• For a cold migration, power off the VMs in vSphere. For a warm migration, enable Changed Block Tracking on each VM and its disks, and give the provider a VDDK image.
• Optional: a VDDK image. VMware’s disk library makes transfers faster, allows warm migration and is required for VMs on vSAN storage. VMware does not permit redistributing it, so build the image from the VDDK tarball and push it to a registry the cluster can pull from. Set it on each provider. A cluster-wide image, set with migration.vddk.image and, for a private registry, migration.vddk.imagePullSecret in the installer configuration, is used for transfers, but the dashboard offers Warm only when the provider has its own image.
• Enough free capacity in the target storage class for the full provisioned size of every disk, not its used size.
• Disable vMotion and Storage vMotion for the VMs while they migrate, and take no snapshots of them: either can corrupt the copy.
• Adding, editing and deleting providers needs the admin role. Plans follow the usual permissions.

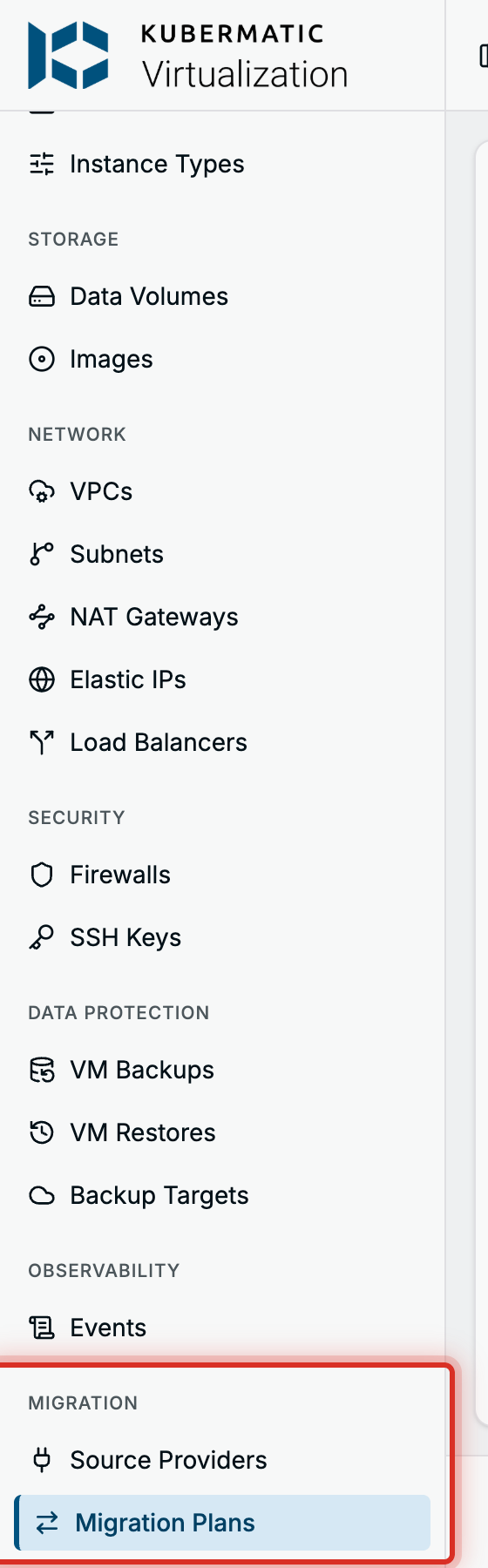

All of them live in the KubeV namespace, kubermatic-virtualization, and the migrated VMs are created there too. The credentials Secret lives in Forklift’s namespace, konveyor-forklift. The two pages sit under Migration in the sidebar.

Step 1: Add a source provider

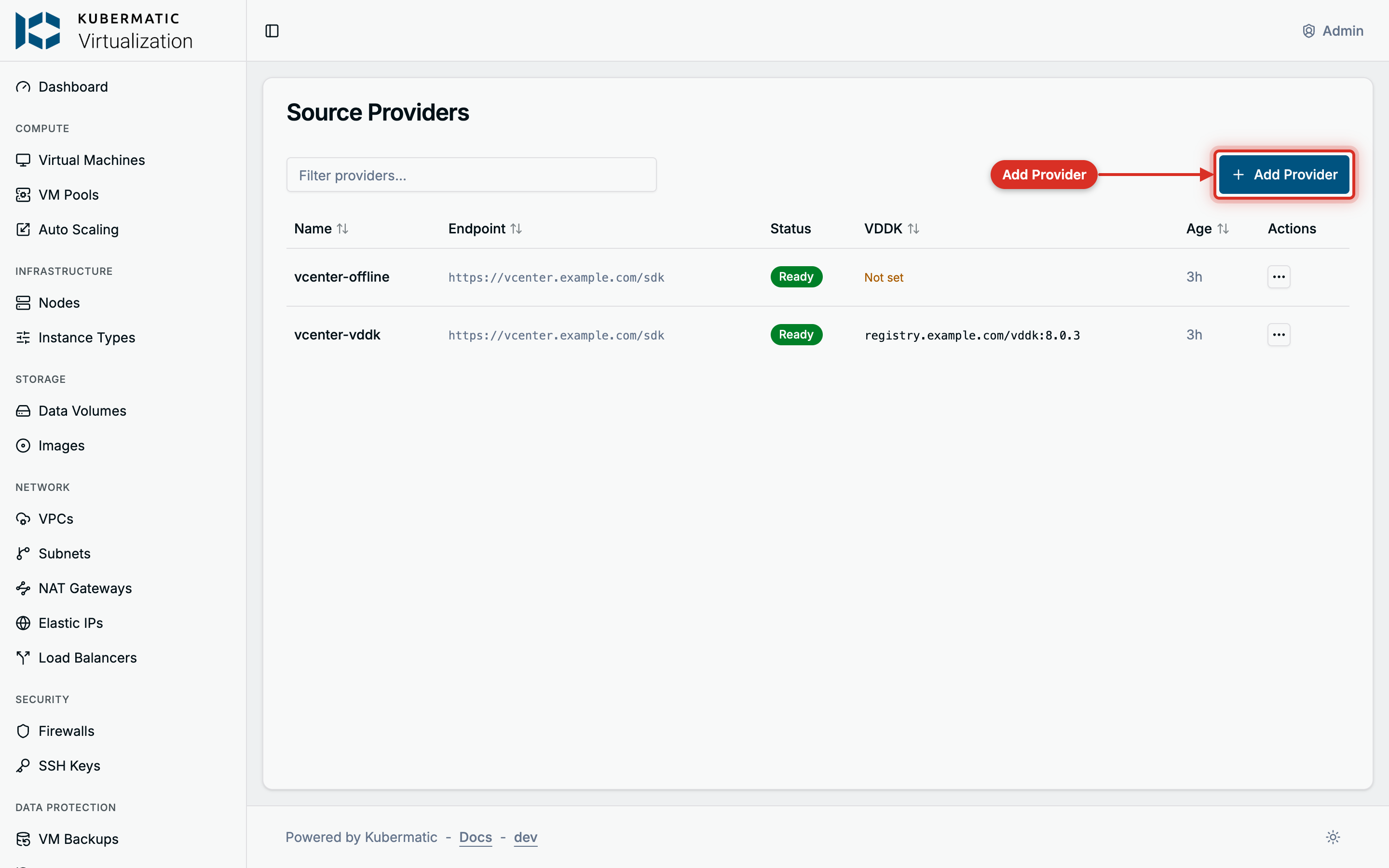

Go to Migration > Source Providers and choose Add Provider.

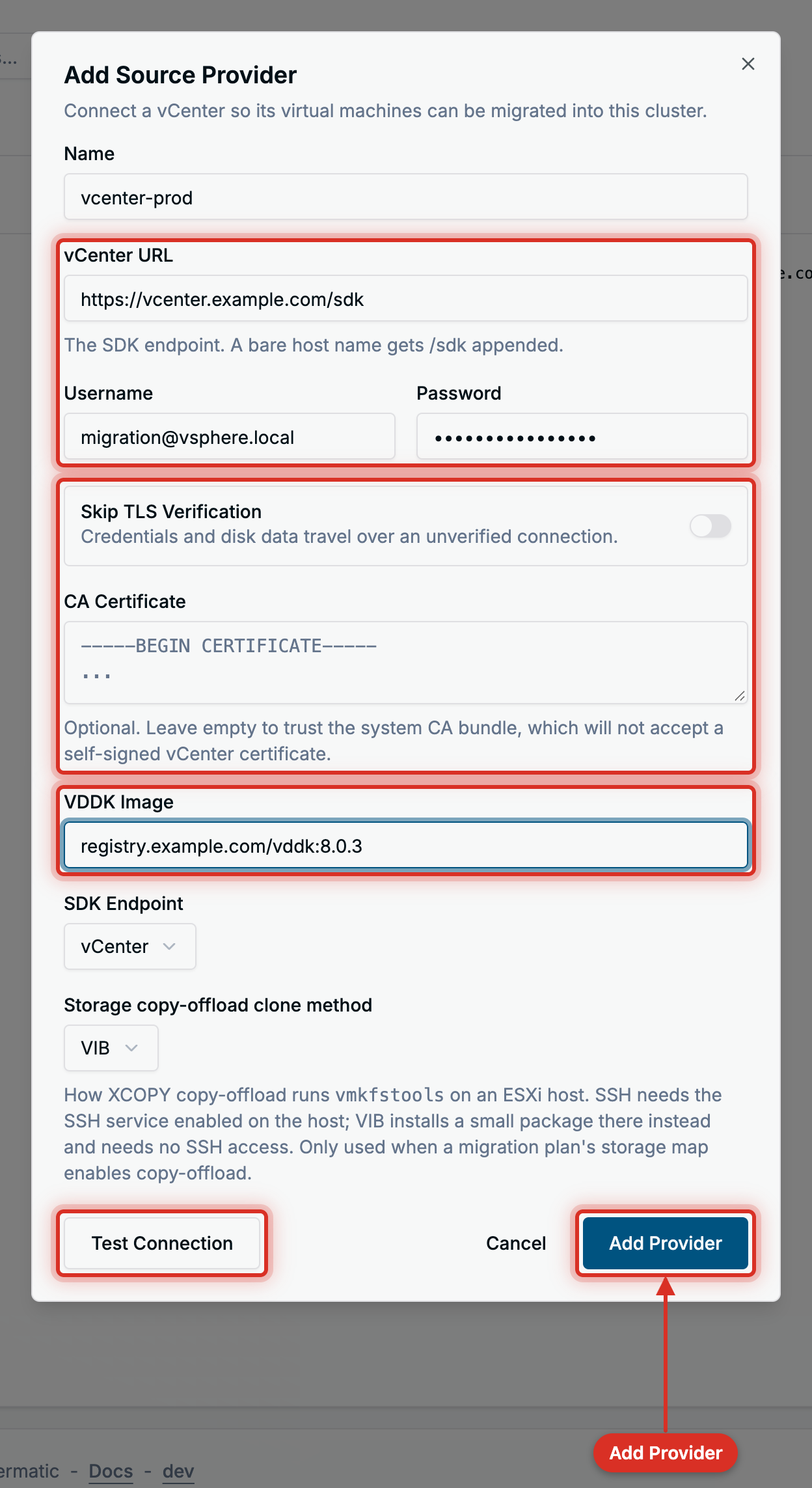

Choose Test Connection to check the URL and login from the API server, then Add Provider.

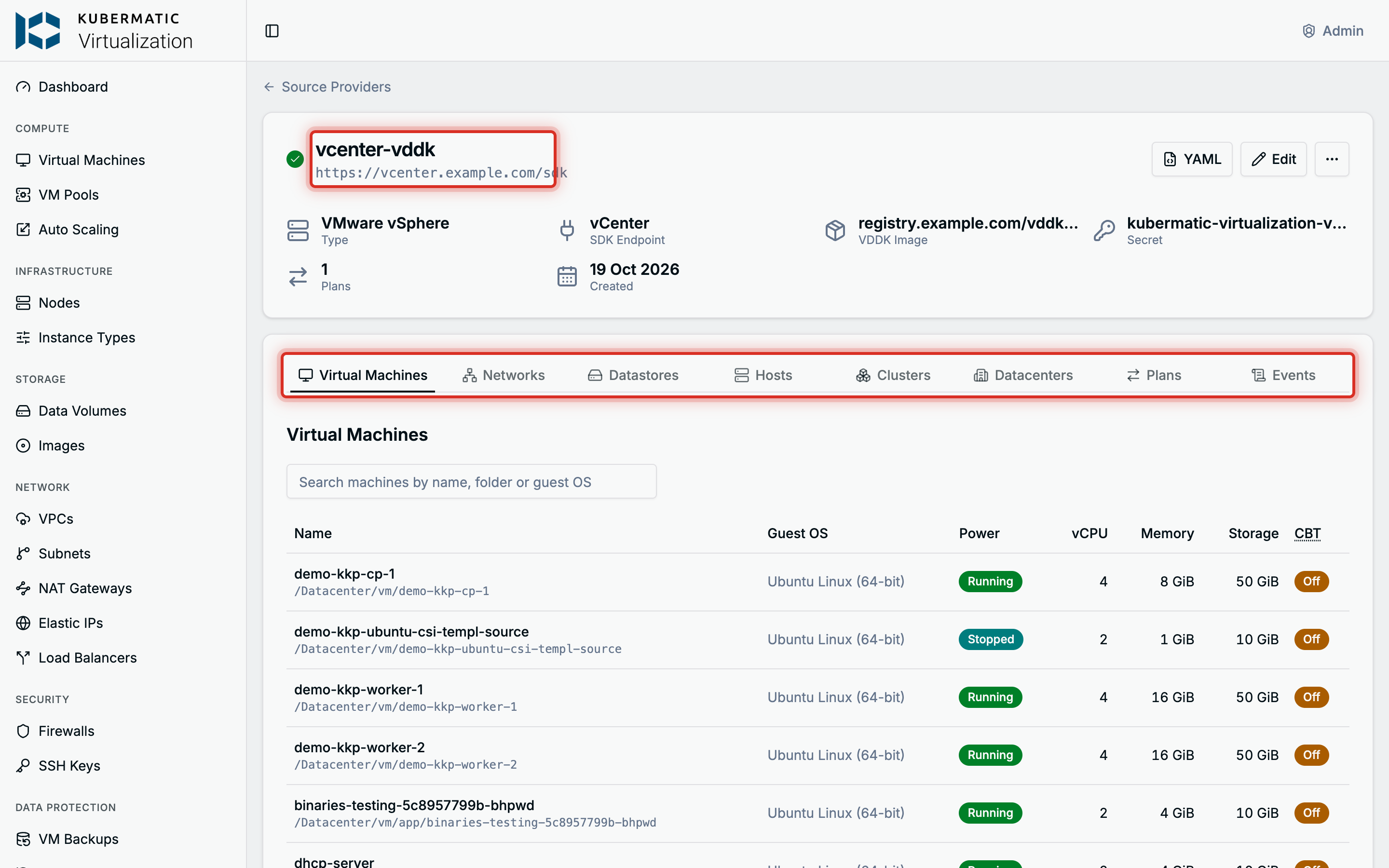

Forklift checks the login from inside the cluster before the provider is saved. The provider then shows Connecting, then Inventorying while Forklift reads the vCenter, then Ready, or Failed with the reason on hover. Open it to browse its virtual machines, networks, datastores, hosts, clusters and datacenters, the plans that use it, and its events. Edit changes the VDDK image, the SDK endpoint and the clone method; turn on Replace Credentials in the dialog to enter a new URL, login and TLS settings, because the stored ones cannot be read back.

The same with YAML

apiVersion: v1
kind: Secret
metadata:
  name: kubermatic-virtualization-vcenter-prod-vsphere-creds
  namespace: konveyor-forklift
  labels:
    createdForProviderType: vsphere
    createdForResourceType: providers
    # Lets the dashboard replace and delete the credentials later.
    migration.k8c.io/owner-namespace: kubermatic-virtualization
type: Opaque
stringData:
  url: https://vcenter.example.com/sdk
  user: migration@vsphere.local
  password: example-password
  insecureSkipVerify: "false"
  # Optional. The vCenter's CA certificate in PEM form.
  cacert: |
    -----BEGIN CERTIFICATE-----
    ...
    -----END CERTIFICATE-----
---
apiVersion: forklift.konveyor.io/v1beta1
kind: Provider
metadata:
  name: vcenter-prod
  namespace: kubermatic-virtualization
spec:
  type: vsphere
  url: https://vcenter.example.com/sdk
  secret:
    name: kubermatic-virtualization-vcenter-prod-vsphere-creds
    namespace: konveyor-forklift
  settings:
    sdkEndpoint: vcenter
    vddkInitImage: registry.example.com/vddk:8.0.3
---
# The destination. The dashboard creates it with the first source provider.
apiVersion: forklift.konveyor.io/v1beta1
kind: Provider
metadata:
  name: host
  namespace: kubermatic-virtualization
spec:
  type: openshift
  secret: {}

kubectl get providers -n kubermatic-virtualization

Step 2: Create a plan

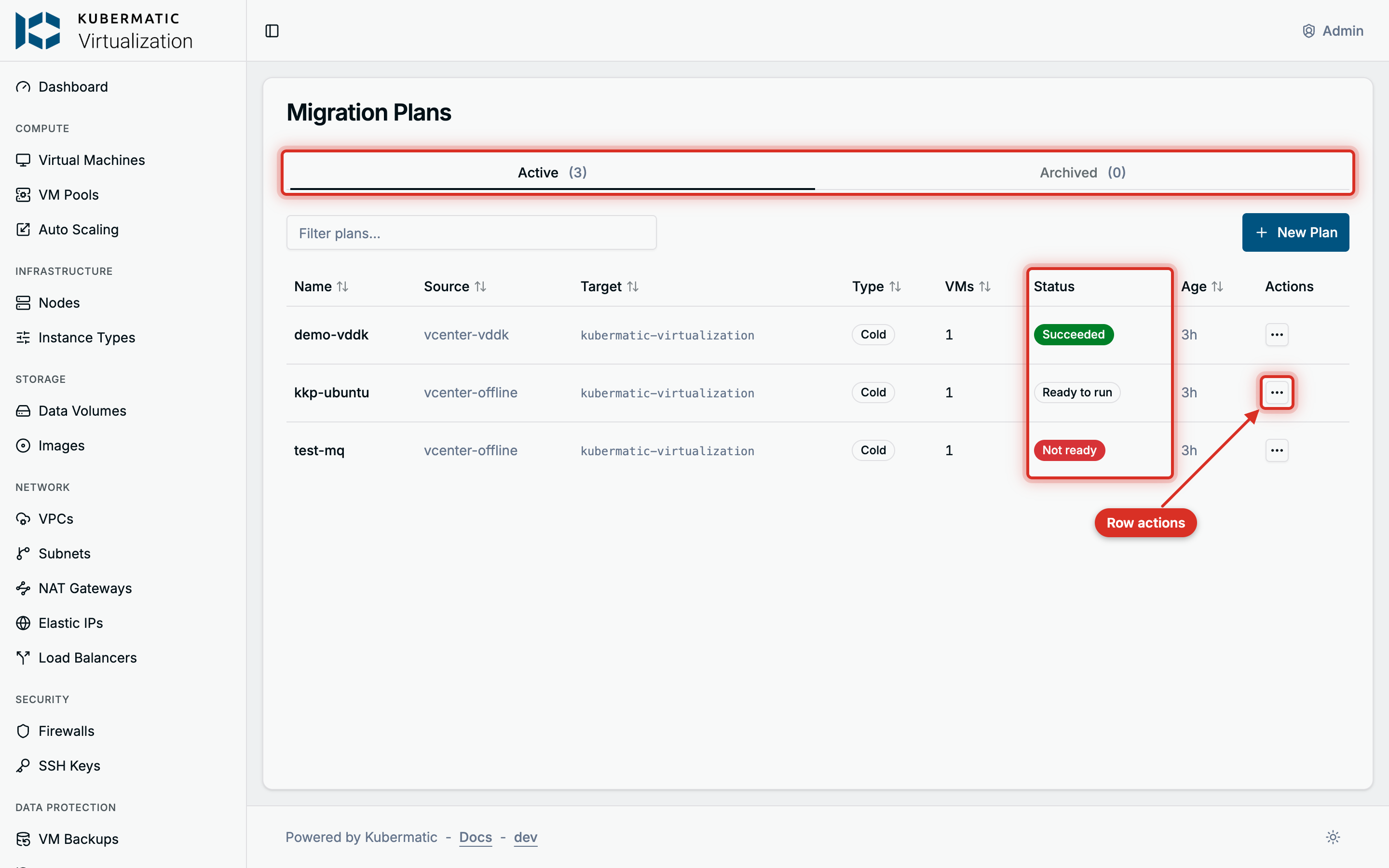

Go to Migration > Migration Plans and choose New Plan. The Import VM button on the Virtual Machines page opens the same form. The form is one page; the Create Plan button stays disabled until every section is complete, and the reason is shown under it with a Go to Section link.

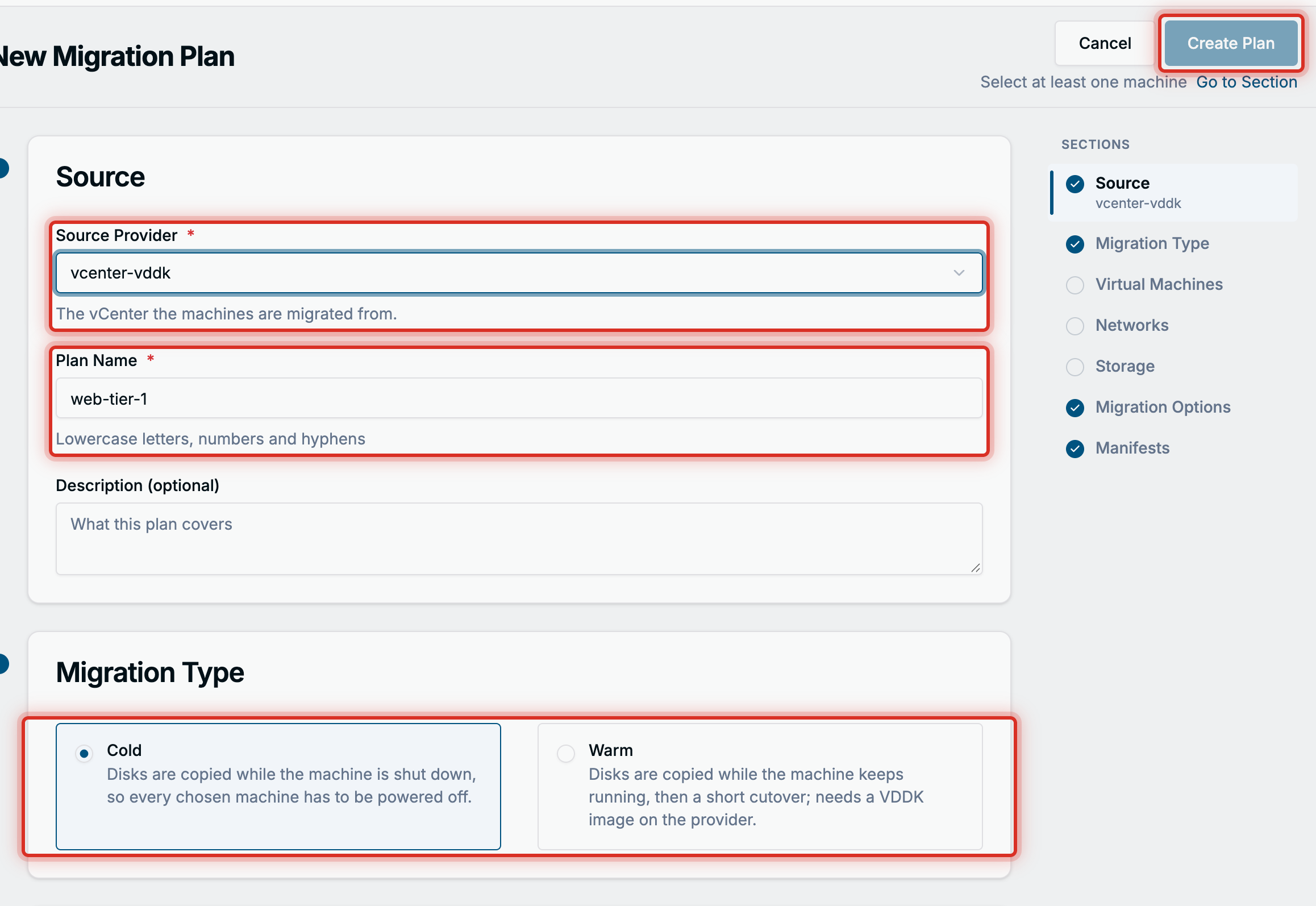

1. Source: pick the Source Provider and enter a Plan Name, such as web-tier-1.
2. Migration Type: Cold copies the disks while the machines are powered off. Warm copies them while the machines keep running, then cuts over; it needs a VDDK image on the provider.

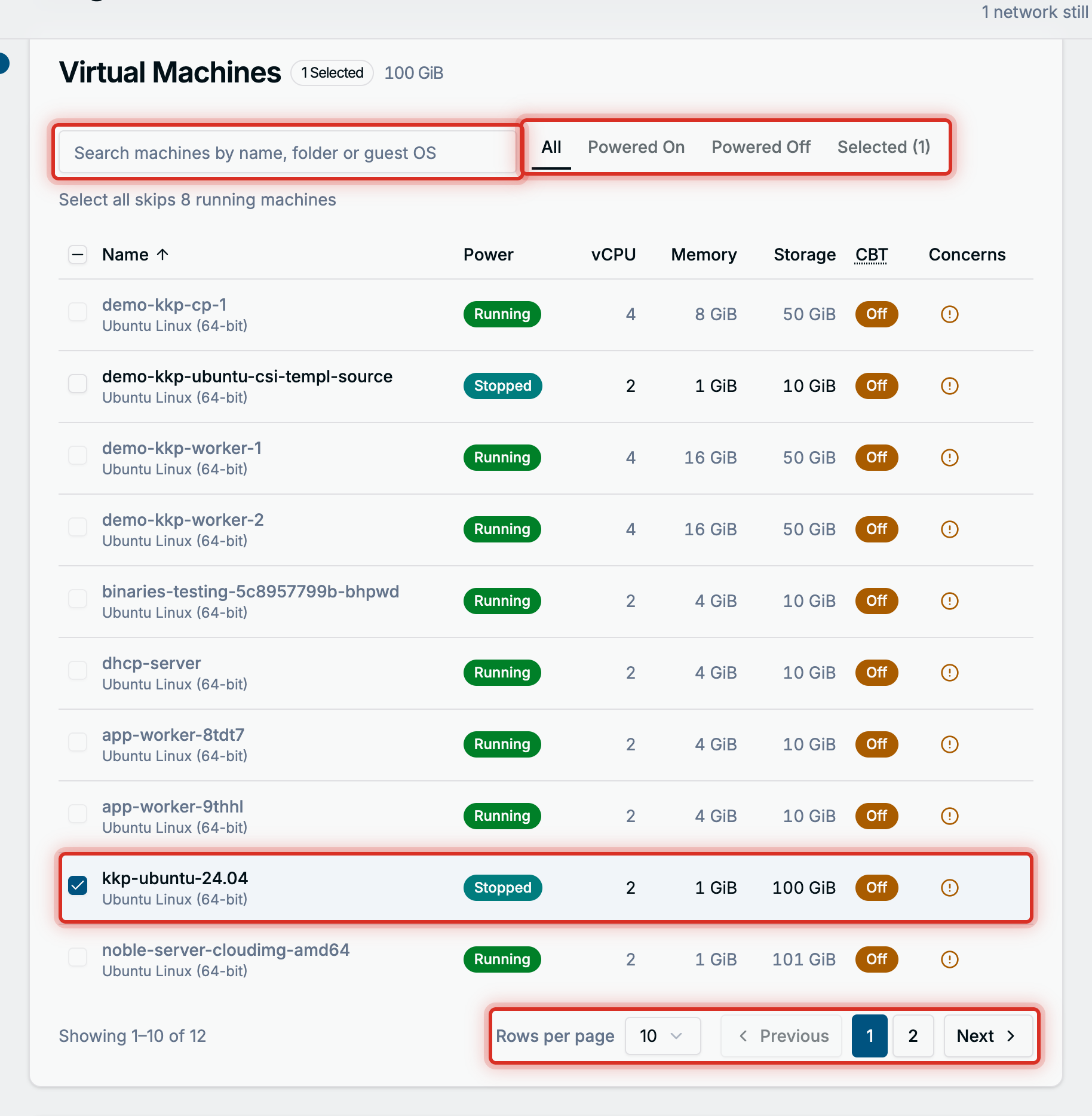

3. Virtual Machines: tick the machines to move. The list comes from vCenter one page at a time: search by name, folder or guest OS, switch between All, Powered On and Powered Off, and review your picks on the Selected tab. A machine that cannot join the plan has its checkbox disabled and the reason on hover: it is running in a cold plan, has Changed Block Tracking off in a warm plan, or has a critical concern.

KubeV checks the picks against the cluster. A machine whose name is already taken gets a Target name field. A machine whose MAC address belongs to an existing VM shows Give … a New MAC, which assigns the existing VM a new address when it next restarts, because the migrated machine keeps its source MAC.

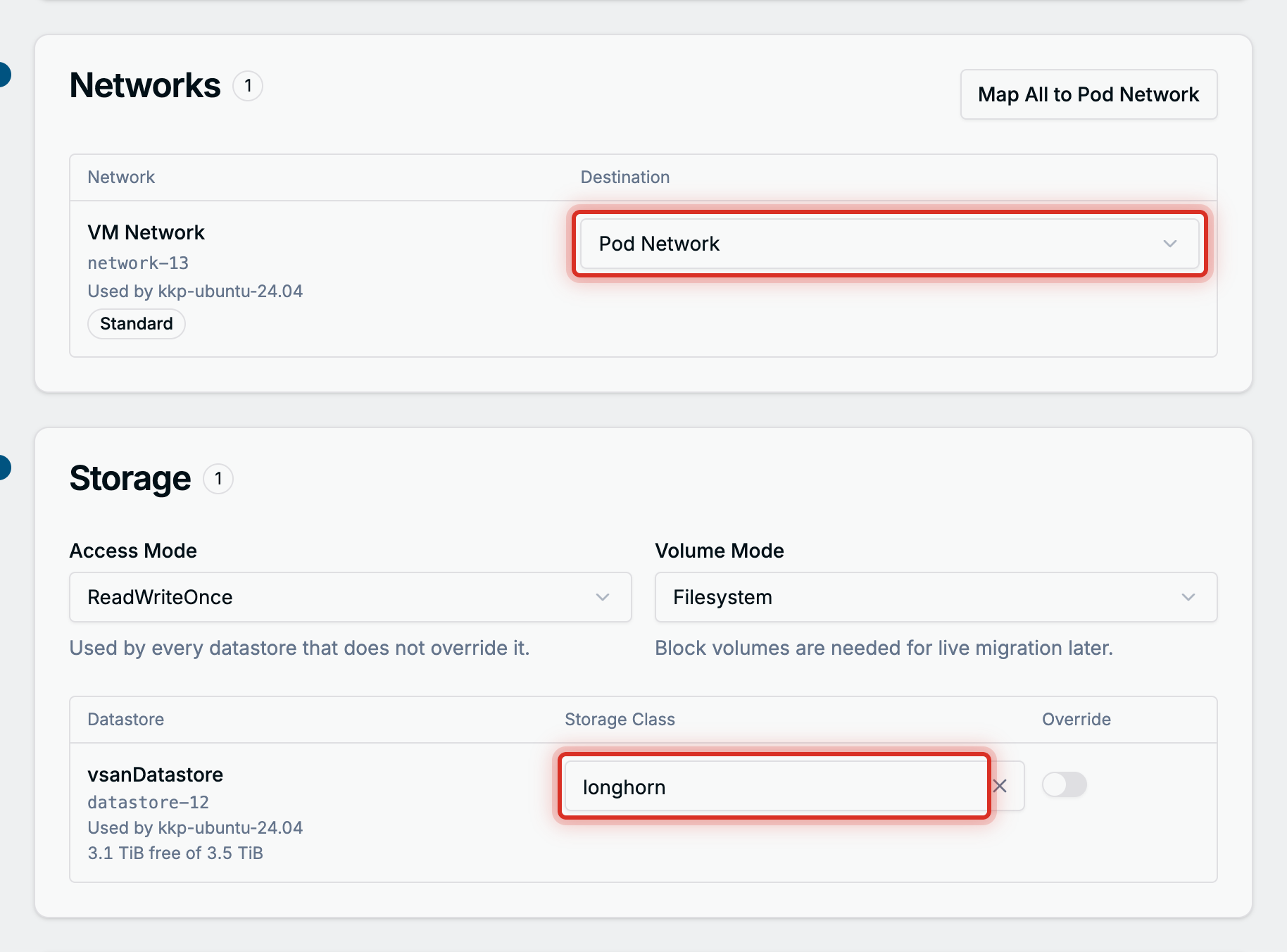

4. Networks: every network the selected machines use needs a Destination: the Pod Network, an Overlay Network subnet, an Underlay Network subnet, or Ignore to drop those interfaces. Map All to Pod Network fills them at once.
5. Storage: every datastore gets a Storage Class. The plan’s Access Mode and Volume Mode apply to each datastore unless its Override switch sets its own.

6. Migration Options: Power State After Migrating and Preserve Static IP Addresses. Advanced Options holds the disk bus, guest conversion, shared disks, legacy Windows drivers and the PVC name template. The defaults are right for most plans.
7. Manifests holds View Manifests, the YAML the dashboard is about to create. Choose Create Plan.

Forklift validates the plan against the vCenter. The plan’s page shows Ready to run, or Not ready with the findings under This plan cannot run yet.

The same with YAML

apiVersion: forklift.konveyor.io/v1beta1
kind: NetworkMap
metadata:
  name: web-tier-1-netmap
  namespace: kubermatic-virtualization
spec:
  provider:
    source:
      name: vcenter-prod
      namespace: kubermatic-virtualization
    destination:
      name: host
      namespace: kubermatic-virtualization
  map:
    # The source id is the vSphere network's moRef, from the provider's Networks tab.
    - source:
        id: network-13
      destination:
        type: pod
        name: pod
---
apiVersion: forklift.konveyor.io/v1beta1
kind: StorageMap
metadata:
  name: web-tier-1-storagemap
  namespace: kubermatic-virtualization
spec:
  provider:
    source:
      name: vcenter-prod
      namespace: kubermatic-virtualization
    destination:
      name: host
      namespace: kubermatic-virtualization
  map:
    - source:
        id: datastore-12
      destination:
        storageClass: longhorn
        accessMode: ReadWriteOnce
        volumeMode: Filesystem
---
apiVersion: forklift.konveyor.io/v1beta1
kind: Plan
metadata:
  name: web-tier-1
  namespace: kubermatic-virtualization
spec:
  type: cold
  targetNamespace: kubermatic-virtualization
  provider:
    source:
      name: vcenter-prod
      namespace: kubermatic-virtualization
    destination:
      name: host
      namespace: kubermatic-virtualization
  map:
    network:
      name: web-tier-1-netmap
      namespace: kubermatic-virtualization
    storage:
      name: web-tier-1-storagemap
      namespace: kubermatic-virtualization
  vms:
    # The vSphere moRef of each machine, from the provider's Virtual Machines tab.
    - id: vm-1026
    - id: vm-1031
      targetName: web-02-migrated
  targetPowerState: auto
  preserveStaticIPs: false

kubectl get plans -n kubermatic-virtualization

To use an overlay or underlay subnet instead of the pod network, set the destination to type: multus with the name and namespace of the subnet’s NetworkAttachmentDefinition.

Step 3: Run the plan and follow it

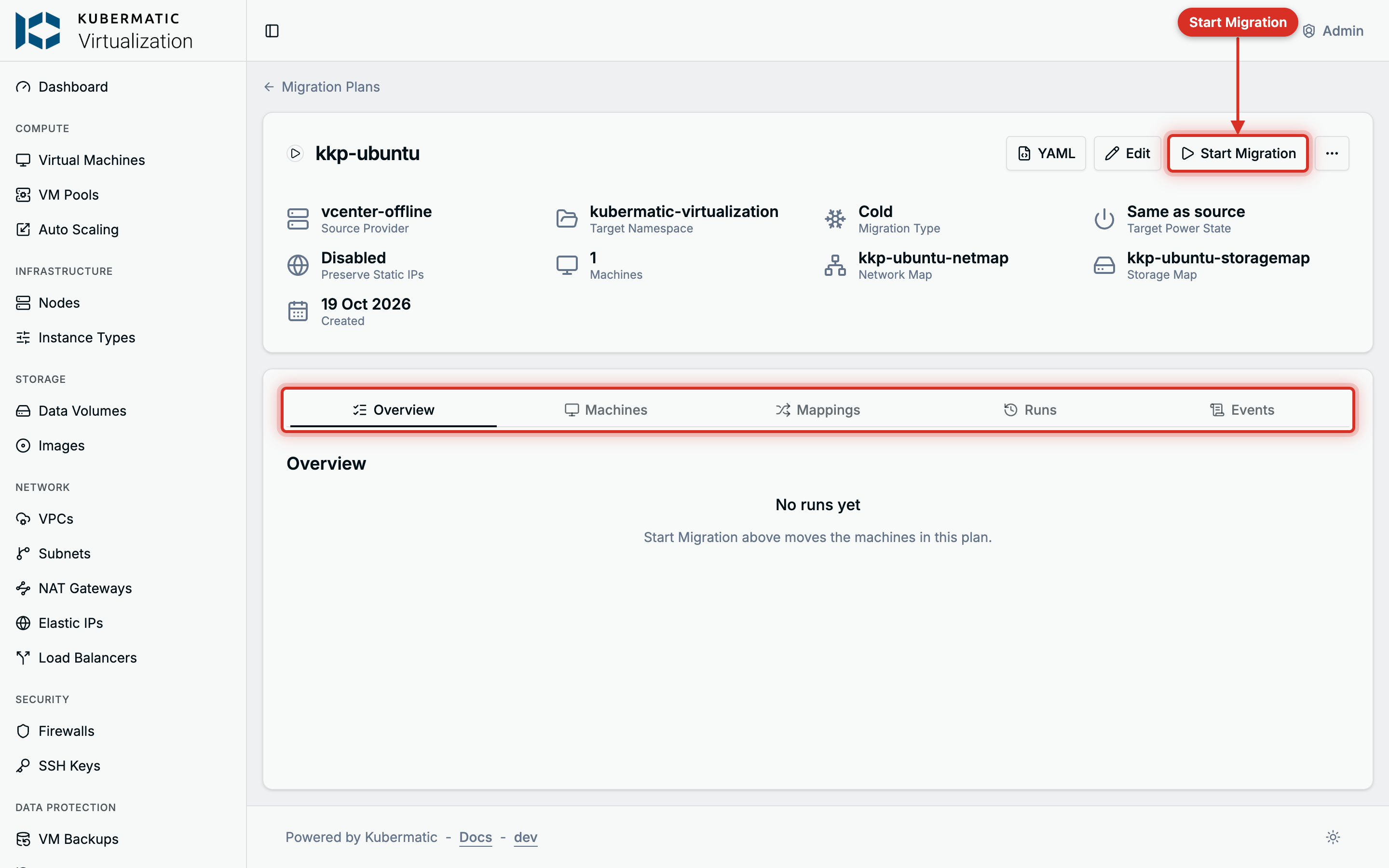

Open the plan and choose Start Migration. The button is enabled once the plan is Ready to run.

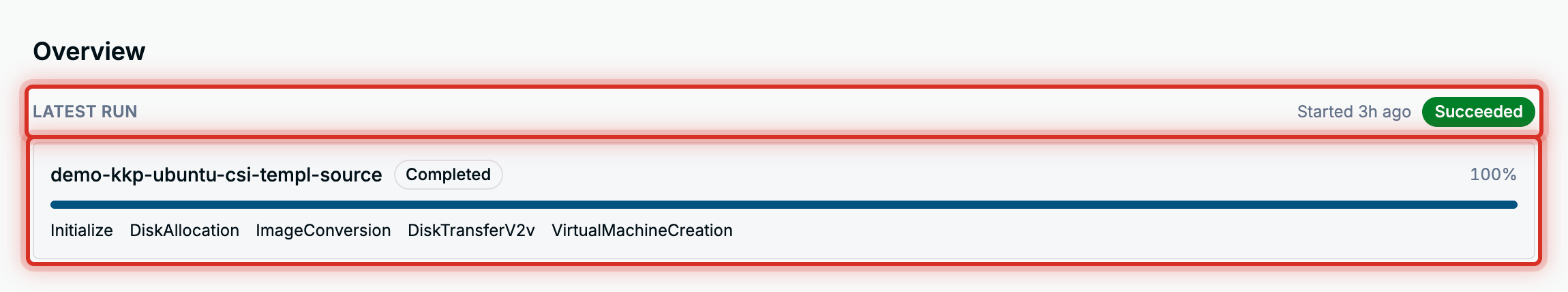

The Overview tab shows the current run with every machine’s phase, progress and pipeline steps. A finished machine links to the new VM. The Runs tab keeps the history, and the Machines tab lists each source machine with its target name and the VM it became.

• Cold: the disks are copied, converted for KVM and the VM is created. Nothing in vCenter is changed.
• Warm: the disks are copied while the machines run and kept in sync. Choose Cut Over to shut the machines down in vCenter, copy the last changes and create the VMs, now or at a scheduled time.
• Cancel Run stops the whole run and removes it from the Runs tab; the X next to a machine stops that machine only. Source VMs are untouched either way. Partial disks can remain in the namespace; delete them before the next run.

Once a run has Succeeded, the VMs are in the Virtual Machines list in the plan’s namespace, powered as the plan’s Power State After Migrating says. Check their console and network before you retire the source.

The same with YAML

apiVersion: forklift.konveyor.io/v1beta1
kind: Migration
metadata:
  name: web-tier-1-2026-10-19-09-00-00
  namespace: kubermatic-virtualization
spec:
  plan:
    name: web-tier-1
    namespace: kubermatic-virtualization

kubectl get migrations -n kubermatic-virtualization
kubectl get plan web-tier-1 -n kubermatic-virtualization -o jsonpath='{.status.migration.vms[*].phase}'

For a warm plan, cut over by setting a time on the Migration, and cancel one machine by listing it:

kubectl patch migration web-tier-1-2026-10-19-09-00-00 -n kubermatic-virtualization --type merge \
  -p '{"spec":{"cutover":"2026-10-19T22:00:00Z"}}'
kubectl patch migration web-tier-1-2026-10-19-09-00-00 -n kubermatic-virtualization --type merge \
  -p '{"spec":{"cancel":[{"id":"vm-1031"}]}}'

Deleting the Migration cancels the whole run.

Step 4: Edit, archive or delete a plan

Edit opens the same form with the provider and the name locked; everything else, including the machines and the mappings, can change. A plan can be edited while no run is active and its latest run did not succeed. After a successful run, create a new plan for the next batch.

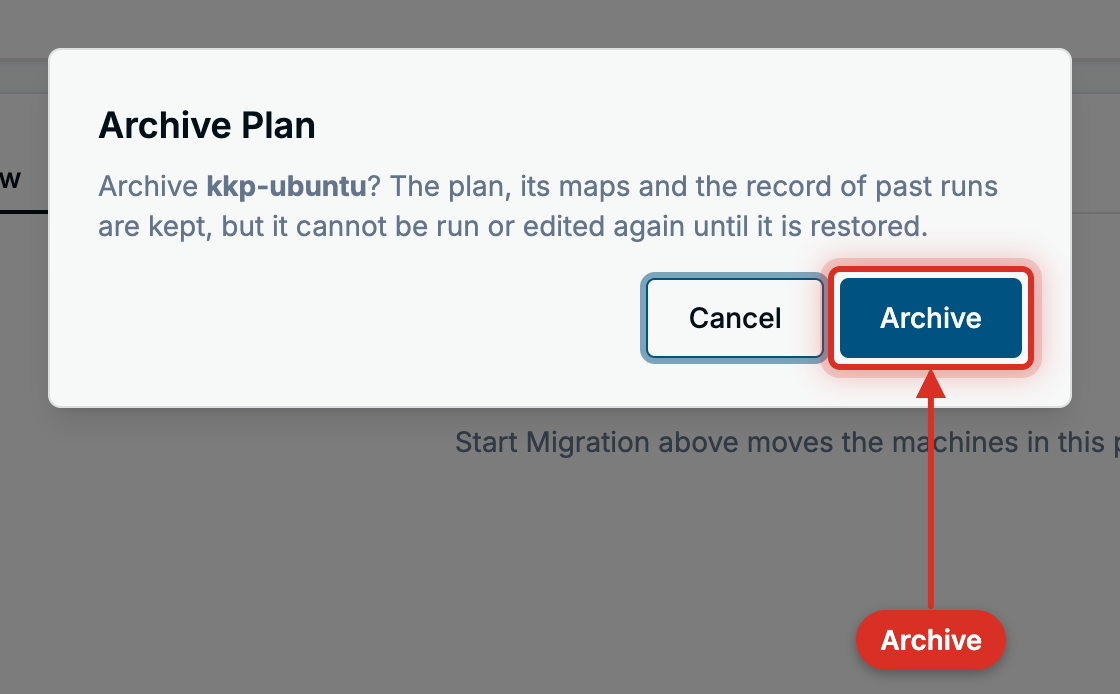

Archive, under the plan’s … menu, keeps the plan, its maps and its run history but moves it to the Archived tab, where it can neither run nor be edited. Restore brings it back.

Delete removes the plan, its maps and its run history. The migrated VMs stay, and nothing in vCenter is touched. Deleting a provider also removes its credentials Secret, and the plans that use it stop working.

The same with YAML

kubectl patch plan web-tier-1 -n kubermatic-virtualization --type merge -p '{"spec":{"archived":true}}'
kubectl delete plan web-tier-1 -n kubermatic-virtualization

The dashboard sets an owner reference from the maps to the plan, so deleting the plan removes its maps too. Maps created by hand stay.

Troubleshooting

A provider’s conditions are under its Events tab, behind View Conditions. A plan’s findings are on its Overview tab. The same text is in kubectl describe of the object.
