Running Your First Test

This guide walks you through running your first conformance test using the Conformance Tester interactive TUI.

Prerequisites

Before starting, ensure you have:

  • A running KKP installation with at least one KubeVirt datacenter configured
  • A kubeconfig with access to the KKP seed cluster
  • The kubermatic-ee-downloader tool (download)
  • The conformance-tester binary downloaded via kubermatic-ee-downloader get conformance-tester

Launch the TUI

Start the interactive wizard:

./conformance-tester

The TUI guides you through each configuration step before running any tests.

Step 1: Select Your Environment

Choose Existing Cluster to connect to a running KKP installation. The TUI will let you pick the kubeconfig source — from the KUBECONFIG environment variable, a discovered file in your home directory, or a custom path.

After selecting the kubeconfig, the TUI fetches available seeds and presets from your cluster. Select the seed and preset that match your KubeVirt datacenter.

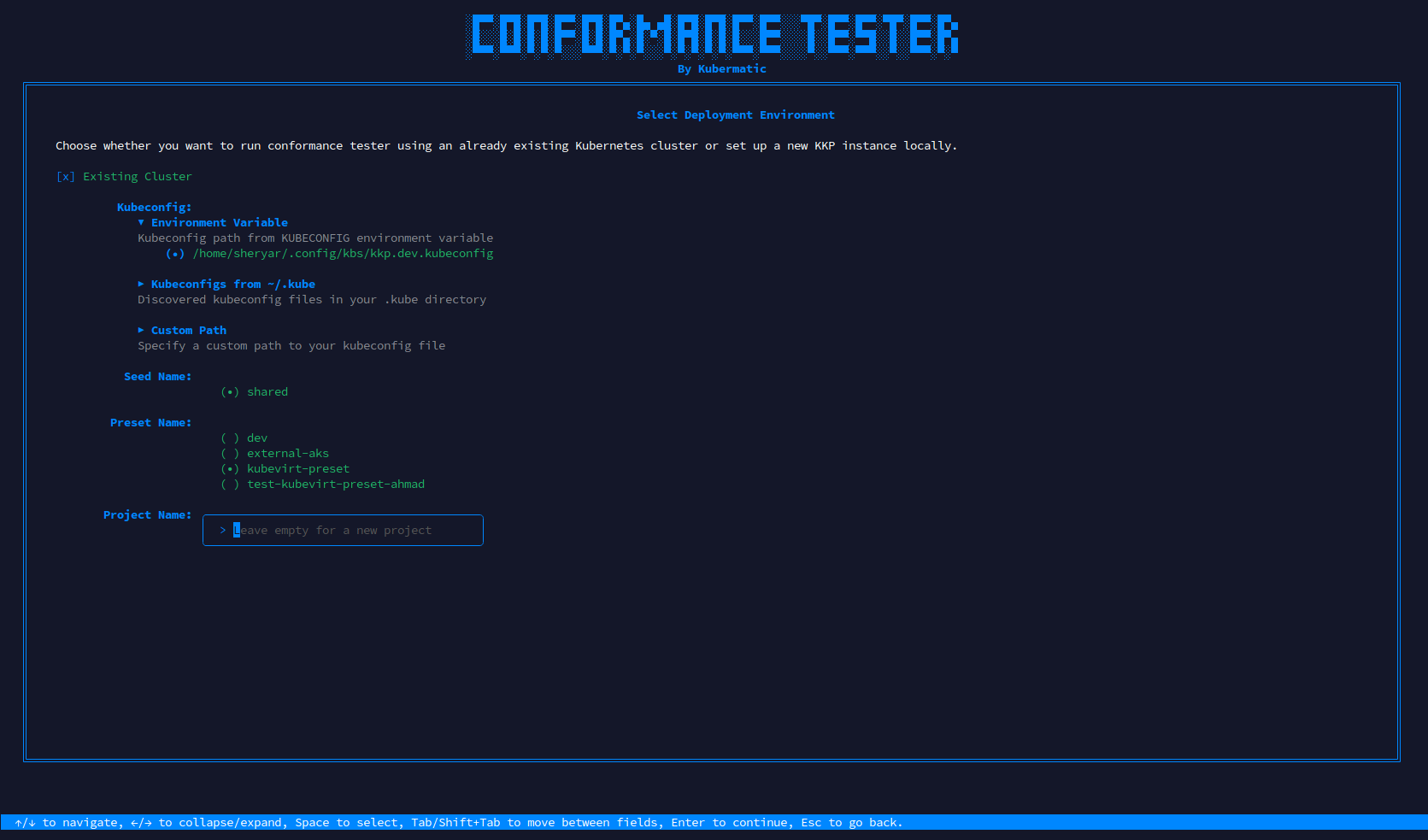

Environment Selection

Use Tab / Shift+Tab to move between fields and Enter to confirm your selection.

Step 2: Select Kubernetes Release

Choose the Kubernetes version to test. The TUI displays all supported releases grouped by minor version. Select one or more patch versions using Space, or use Ctrl+A to toggle all versions in a minor release group.

For a first test, select a single recent patch release to keep the test matrix small.

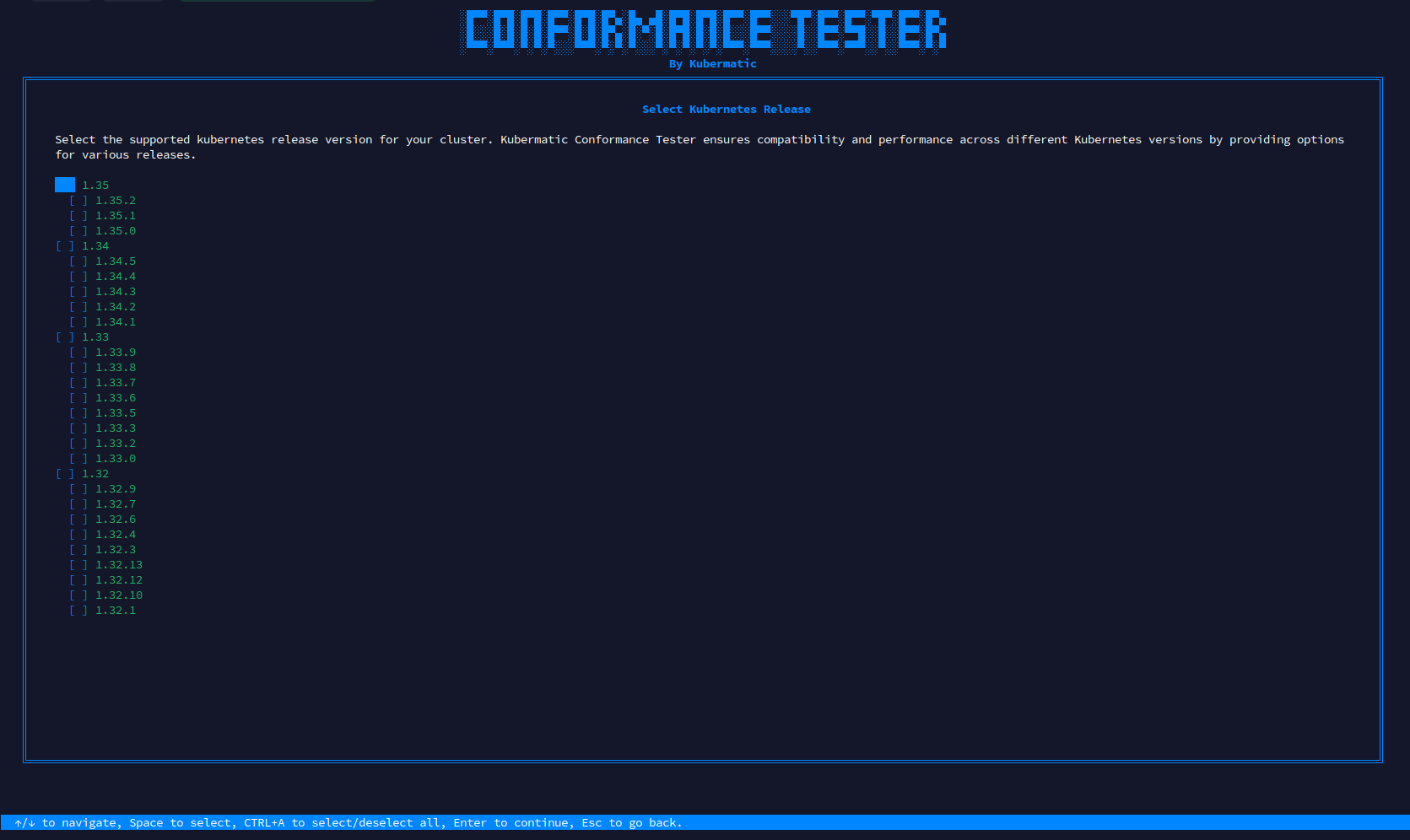

Select Kubernetes Release

Press Enter to continue.

Step 3: Select Infrastructure Provider

Select KubeVirt as the infrastructure provider. Once selected, choose how to supply credentials:

  • From Preset — uses the preset selected in Step 1 (recommended)
  • Enter Custom Credentials — manually provide a kubeconfig for KubeVirt

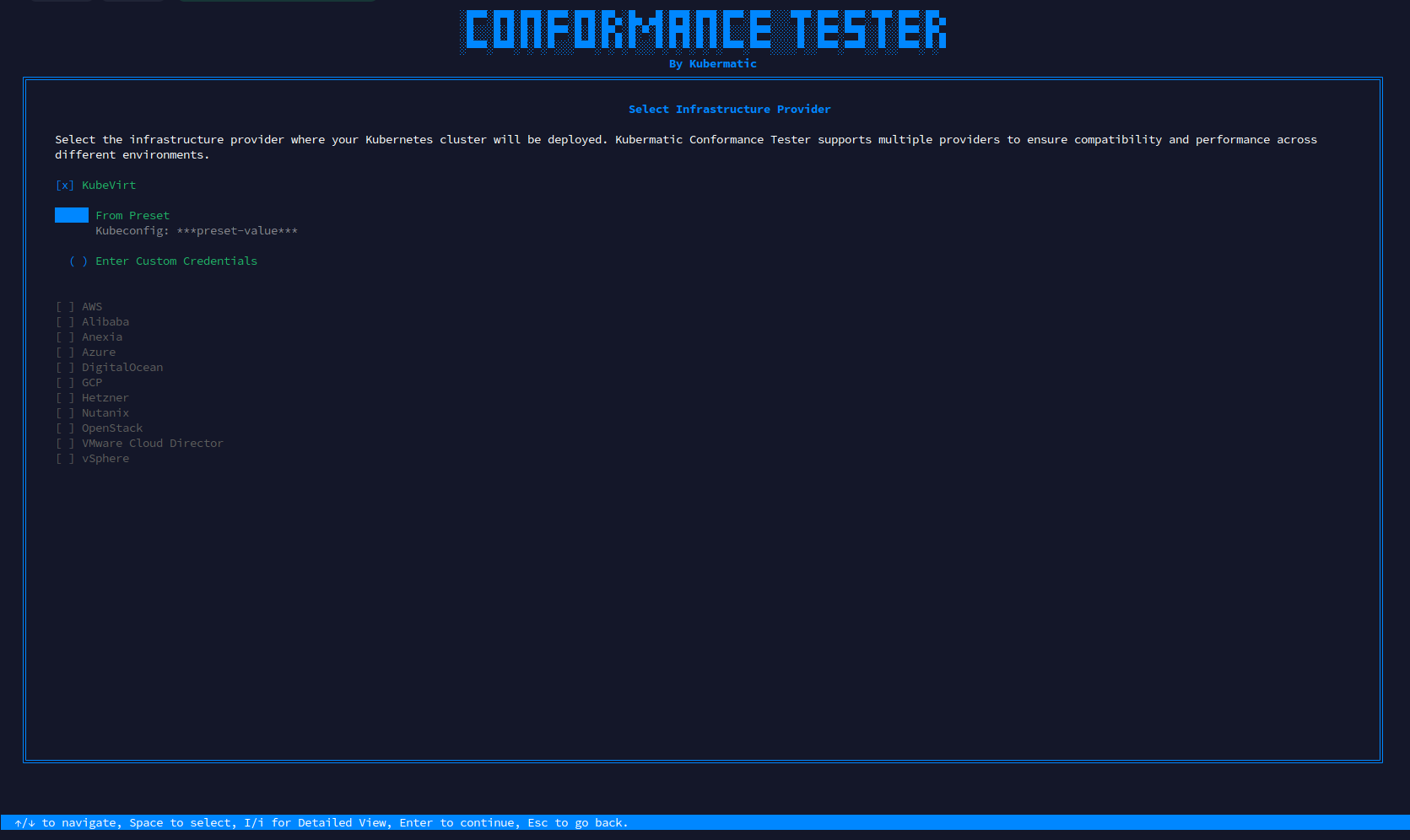

Select Infrastructure Provider

Press I to expand the detailed credential view for any provider. Press Enter to continue.

Step 4: Select OS Distributions

Choose one or more operating system distributions for cluster nodes. For a minimal first test, select Ubuntu only. You can select additional distributions (Flatcar, RHEL, Rocky Linux) to expand coverage once your basic setup is confirmed.

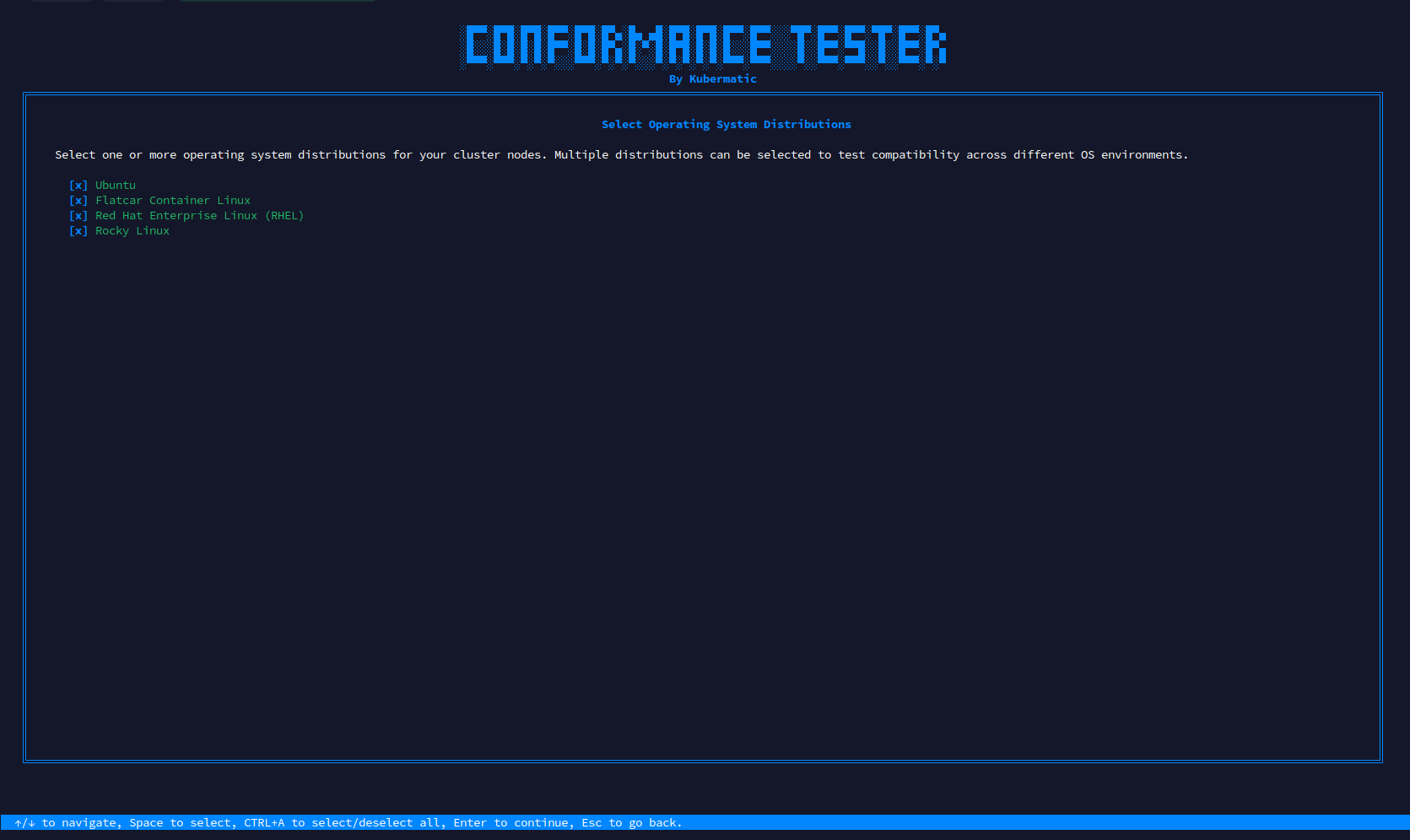

Select OS Distributions

Use Space to toggle selections and Enter to continue.

Step 5: Configure Datacenter Settings

Select the KubeVirt-specific datacenter settings to include in the test matrix. Leaving none selected uses default values for all settings, which is recommended for a first run.

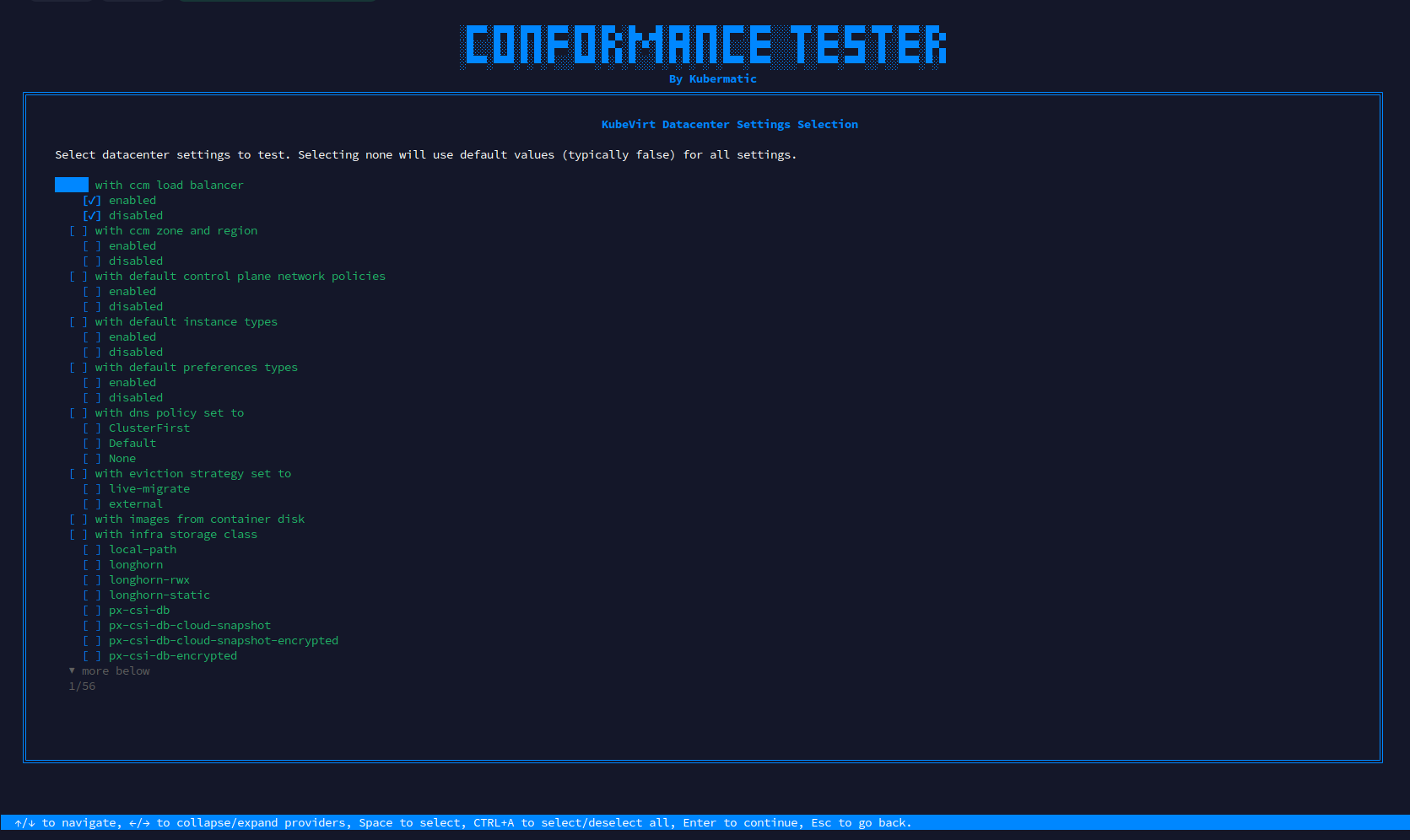

Datacenter Settings

Press Enter to accept defaults and continue.

Step 6: Configure Cluster Settings

Select cluster-level settings to vary across test runs — for example, CNI plugin, admission controllers, or feature gates. Leaving none selected uses defaults for all settings.

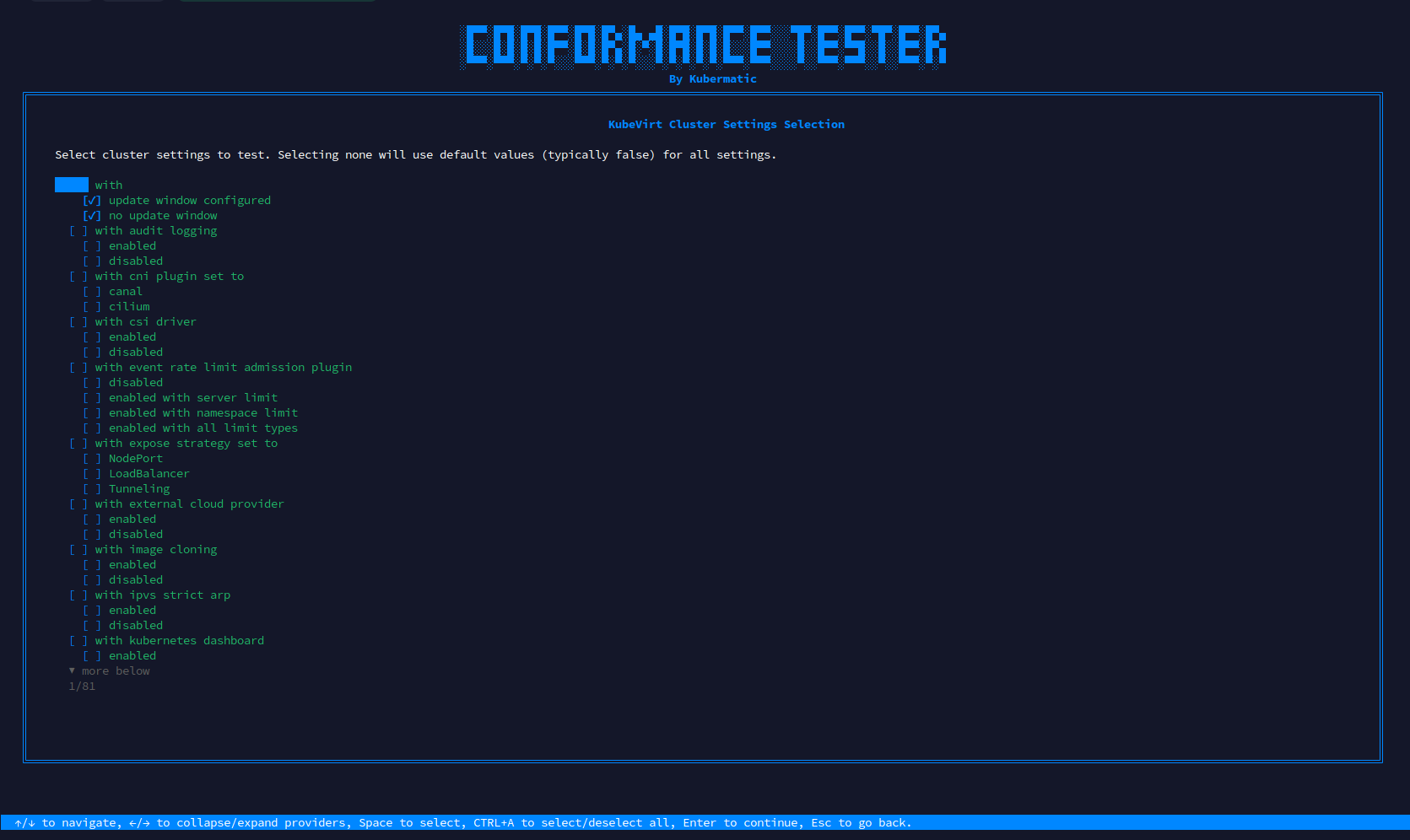

Cluster Settings

Press Enter to continue.

Step 7: Configure OS Image Sources

This step is specific to KubeVirt. Map each selected OS distribution and version to a container image source. The table shows columns for OS, version, and image path.

Use Tab to switch between sections, ↑/↓ to navigate rows, A or + to add an entry, and D or Delete to remove one.

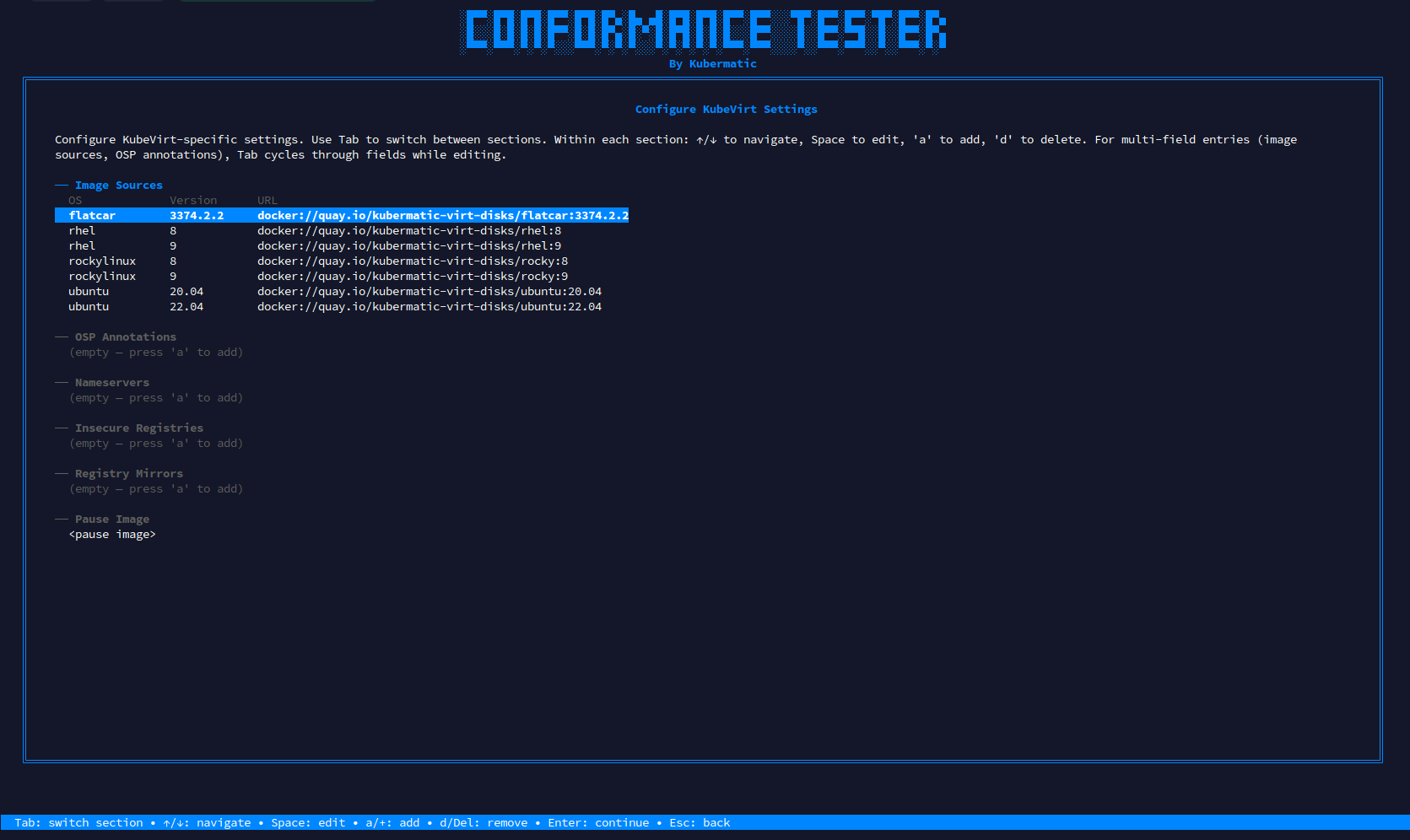

OS Image Sources

Images must be accessible from the KubeVirt infrastructure. Use docker:// URIs pointing to a registry reachable from the seed cluster.

Step 8: Configure Machine Deployment Settings

Select machine deployment options to vary across test runs, such as disk type or network configuration. Defaults are used for any unselected settings.

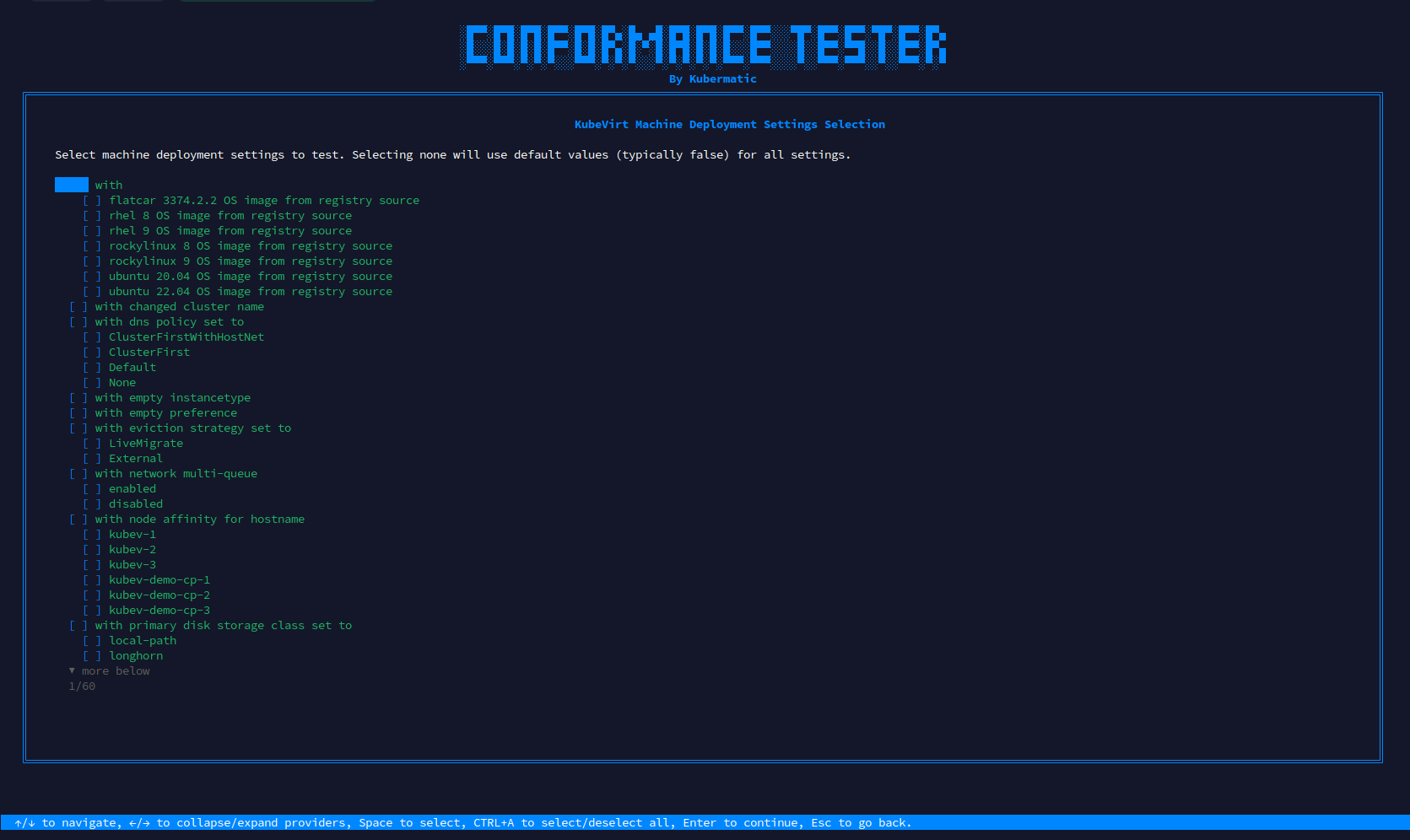

Machine Deployment Settings

Press Enter to continue.

Step 9: Configure Cluster Parameters

Set the resource allocation and runtime options for test clusters:

  • Cluster Name — prefix used for all created clusters
  • Machine Deployment — number of worker nodes and resource sizes (CPU, memory, disk)
  • Test Options — parallel test runners, test focus/skip filters
  • Results — output directory for JUnit XML reports
  • Registry — optional credentials for pulling the conformance test image. If left empty, the default Docker credentials from ~/.docker/config.json are used.

Run docker login beforehand to store your Kubermatic Enterprise registry credentials.

Cluster Configuration

Use ↑/↓ to navigate fields and Space to edit or toggle a value.

Step 10: Review and Execute

The final screen shows a YAML summary of your complete configuration. Review all settings before proceeding. Use ↑/↓ and ←/→ to scroll and expand sections.

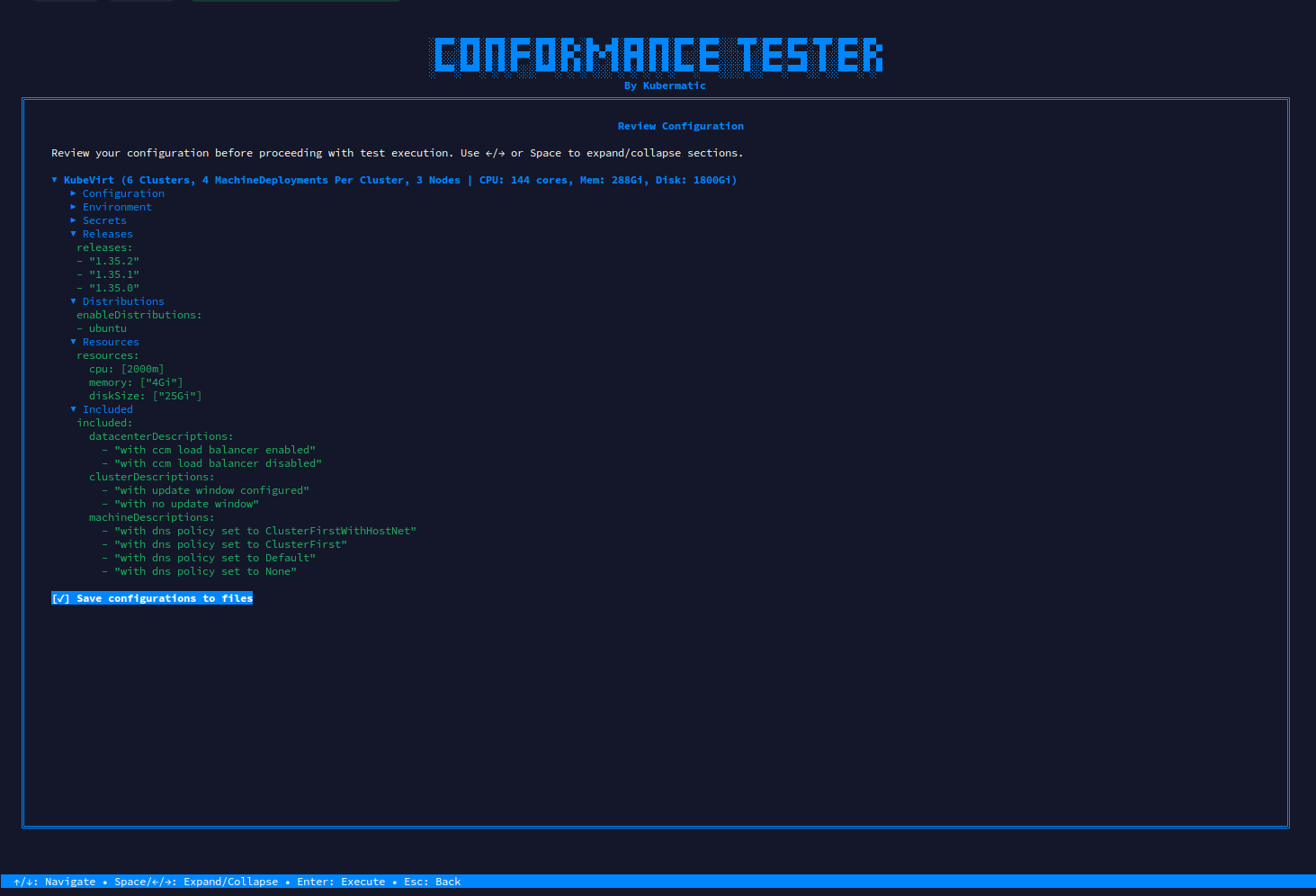

Review Configuration

Press Enter to start the conformance tests. The TUI switches to a live log view as test jobs are submitted to the cluster. Press Ctrl+C to cancel execution.

Reviewing Results

After tests complete, JUnit XML reports are written to the results directory you configured:

reports/
├── junit.with_kubernetes_1.35.2_and_ubuntu_22.04_and_canal.xml
└── ...

These files can be imported into any CI system that supports JUnit XML format.

Troubleshooting

Cluster Creation Timeout

If cluster creation exceeds the timeout:

  • Verify the KKP API is accessible from the test pod
  • Check KKP controller logs for provisioning errors
  • Ensure the cloud provider has sufficient quota

Node Not Ready

If worker nodes fail to reach Ready state:

  • Check machine controller logs in the user cluster
  • Verify the OS image is accessible from the KubeVirt infrastructure
  • Ensure the storage class exists and has available capacity
